Page 41: Pre l iminar y
Runco LS-7 Installation/Operation Manual
25
PRE
L
IMINAR
Y
RS-232 Controller
Connection
Connect a PC or home theater control/automation system (if present) to the RS-232 port
on the LS-7; see Figure 3-11. Use a standard, 9-pin serial cable, wired straight-through.
For more information about using this connection, refer to Serial Communications on
page 65.

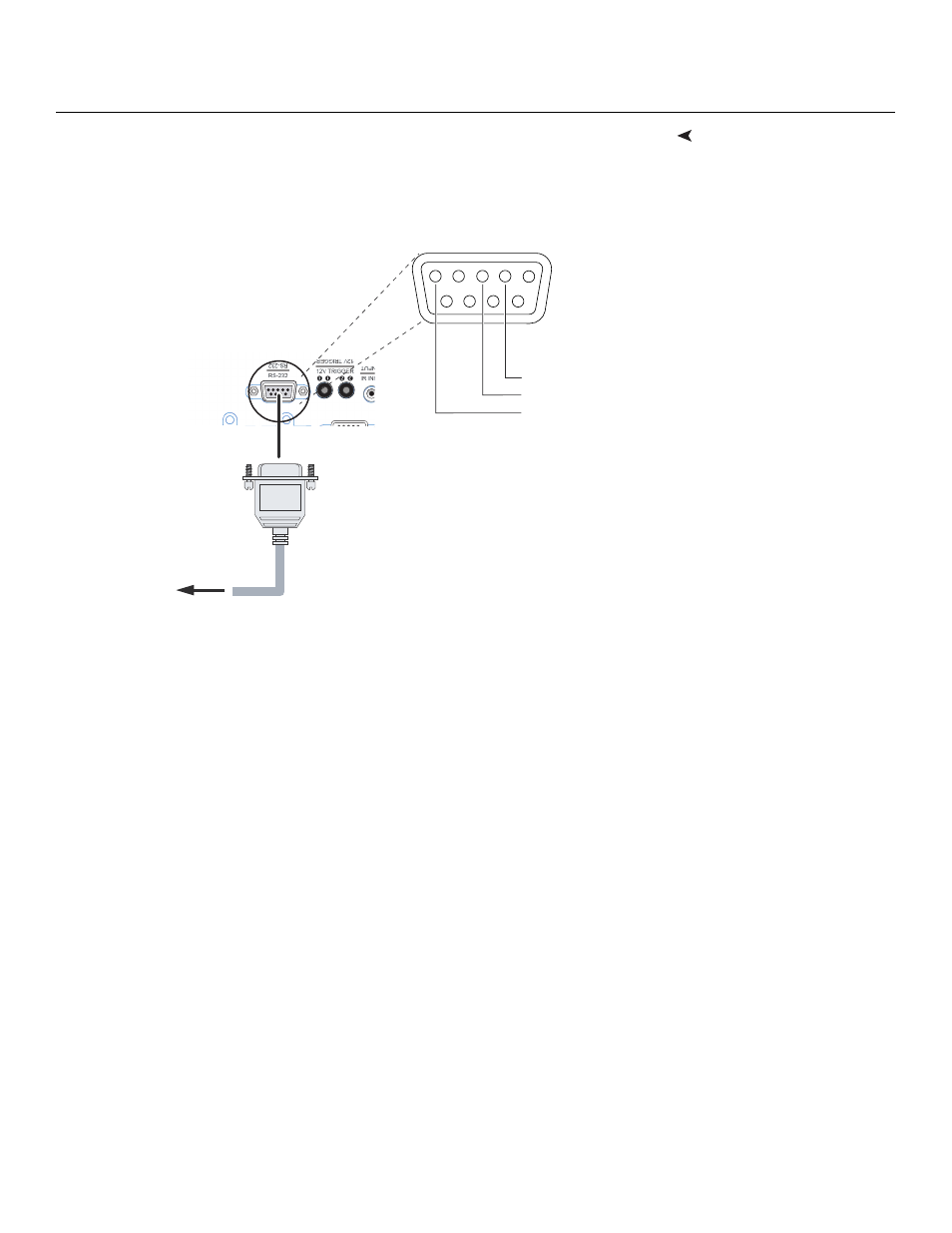

Figure 3-11. RS-232 Control System Connection
1
2
3
4
5
7
8
9
6
to Automation/
Control System
or PC
2 Transmit Data
3 Receive Data
5 Ground
(none of the other pins are used)
