Runco LS-7 Installation/Operation Manual
5
PRE
L
IMINAR
Y
2.1
LS-7 at a Glance

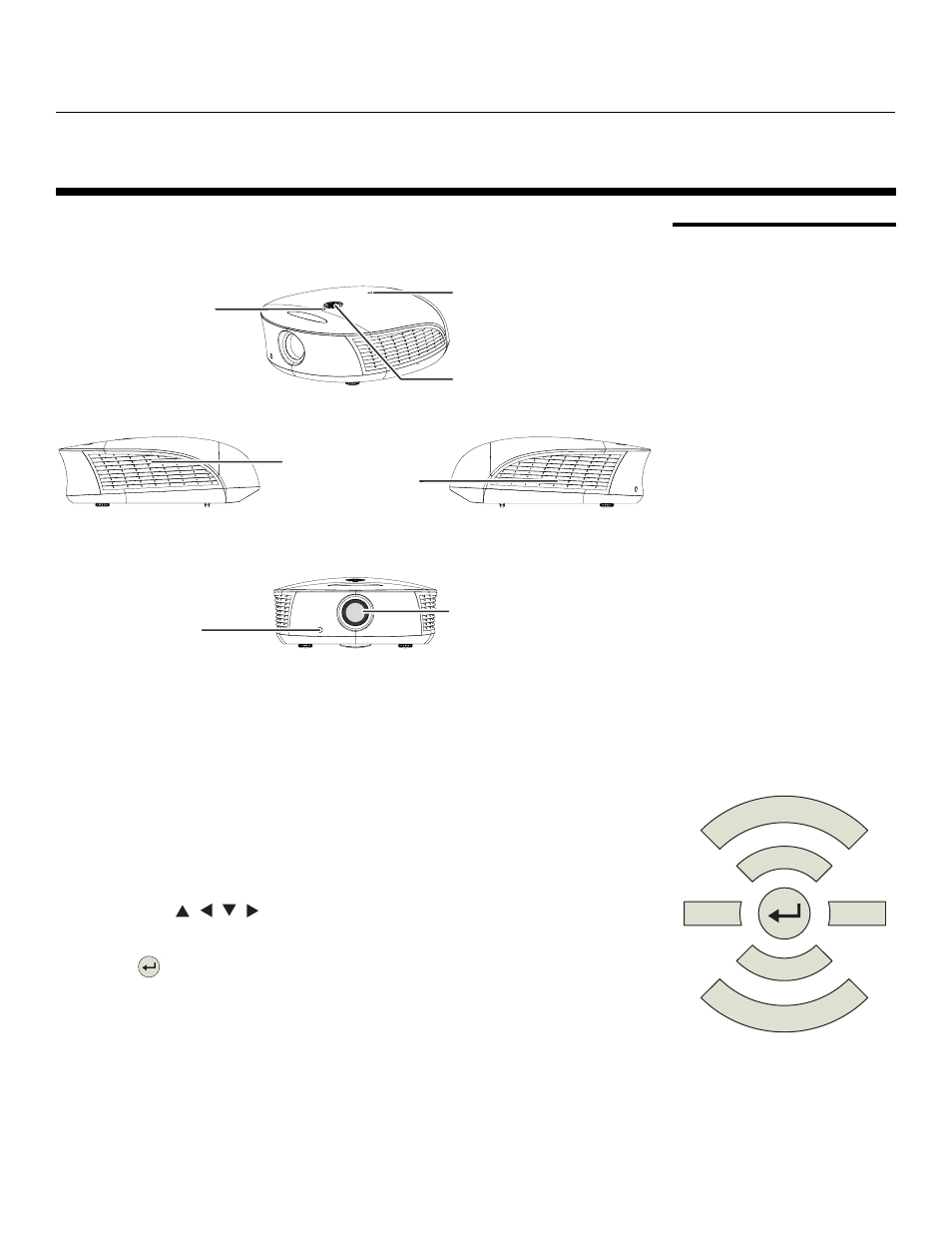

Figure 2-1 and Figure 2-2 show the key LS-7 components.
Figure 2-1. LS-7 Front/Side View
• TOP IR SENSOR
Receives infrared signals from the remote control unit.
• SYSTEM KEYPAD
Provides an alternative to using the remote control unit to select a source or navigate
the on-screen display (OSD) controls.
SOURCE
Use this button to select a video source.
Cursor Keys (
,
,
,
)
Use these buttons to select items or settings, adjust settings or switch display patterns.
ENTER (
)
Press to select a highlighted menu item or confirm a changed setting.
MENU
Press this button to show or hide the OSD menus.
2. Controls and Functions
System Keypad
Top IR Sensor
Exhaust
Vent
Intake
Vent
Power Button/
Status LED
Front IR Sensor
Projection Lens
▲
▲
SOURCE
MENU
►
◄
