7.
S-VIDEO
A standard S-Video input for connecting a DVD player, satellite receiver or Super VHS
(S-VHS) VCR.
8.
IR INPUT
Wired input from a Niles- or Xantech-compatible, infrared (IR) repeater system.
9.
TRIGGER 2 (3.5-mm, mini phono jack)
Provides 12 (+/- 1.5) volt switched output for screen relays with 250mA current
capacity and short protection.
10. TRIGGER 1
Provides 12 (+/- 1.5) volt switched output for screen relays with 250mA current
capacity and short protection.
11. RS-232
A female, 9-pin D-sub connector for interfacing with a PC or home theater
automation/control system.
2.3

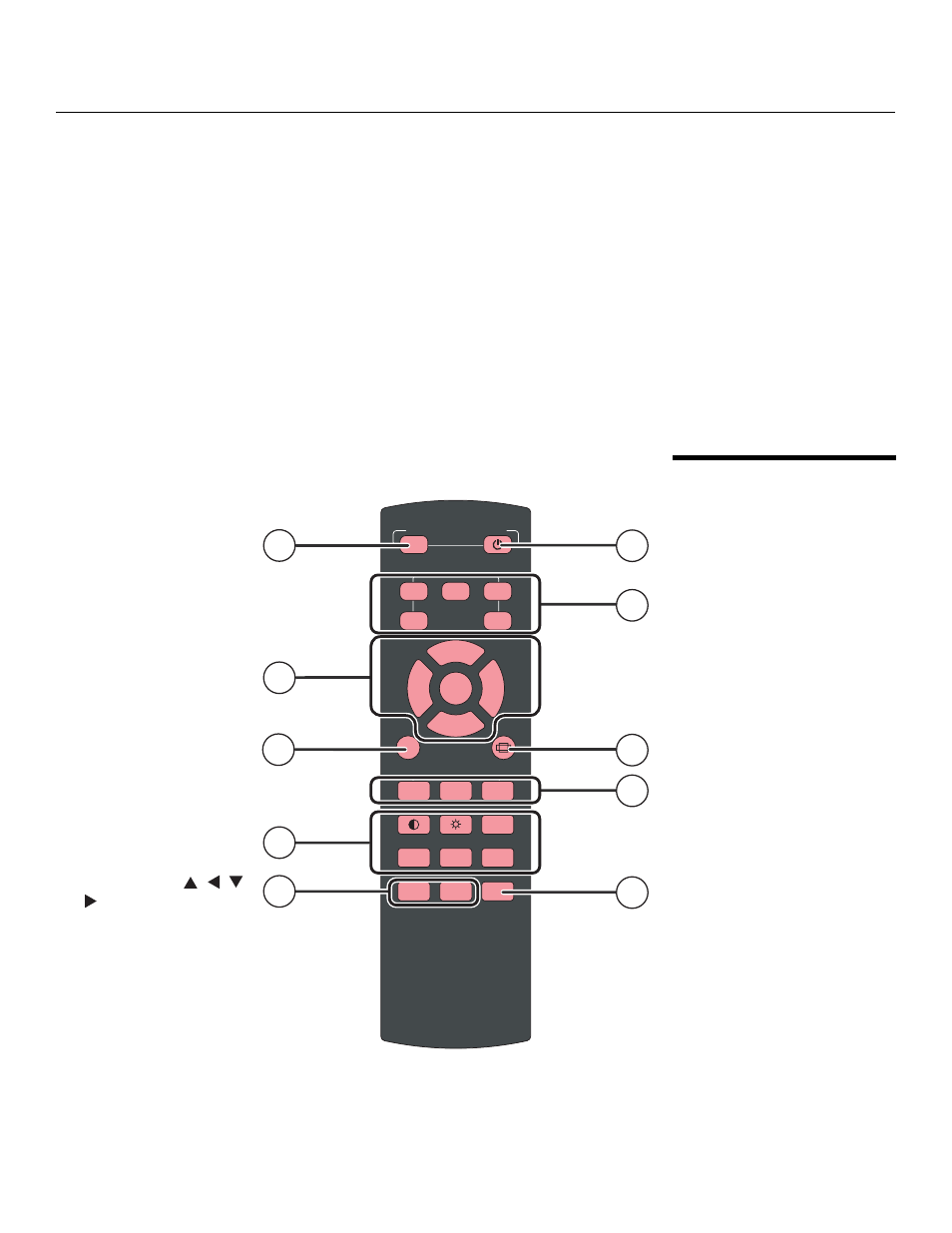

LS-7 Remote Control
1.
ON
Use this button to turn
the projector on.
2.
OFF
Use this button to turn
the projector off.
3.
Source Selection
Buttons (1-5):
Press to select a video
source. By default, these
buttons are assigned as
follows: 1 = HDMI 1; 2 =
HDMI 2; 3 =
Component 1; 4 =
S-Video; 5 = Video.
However, you can assign
each button to any
source you wish.
4.
Cursor Keys (
,
,
,
)
Use these buttons to
select items or settings,
adjust settings or switch
display patterns.
ENTER
Press to select a
highlighted menu item or
confirm a changed
setting.
ON
l
POWER
OFF
1
4
2
3
5
M1
GAMMA
PIP
M2
OS
SWAP
M3
SHARP
NR
LIGHT
▲
▼
▲
▼
ENTER
MENU
USER MEMORY
SOURCE
9
1
4
2
3
5
7
6
8
10
