Ventilation If you are mounting the V-50HD/V-63HD in an enclosure, leave sufficient space on all
sides between it and surrounding objects, as shown in Figure 3-1. This allows heat to
disperse, maintaining the proper operating temperature.

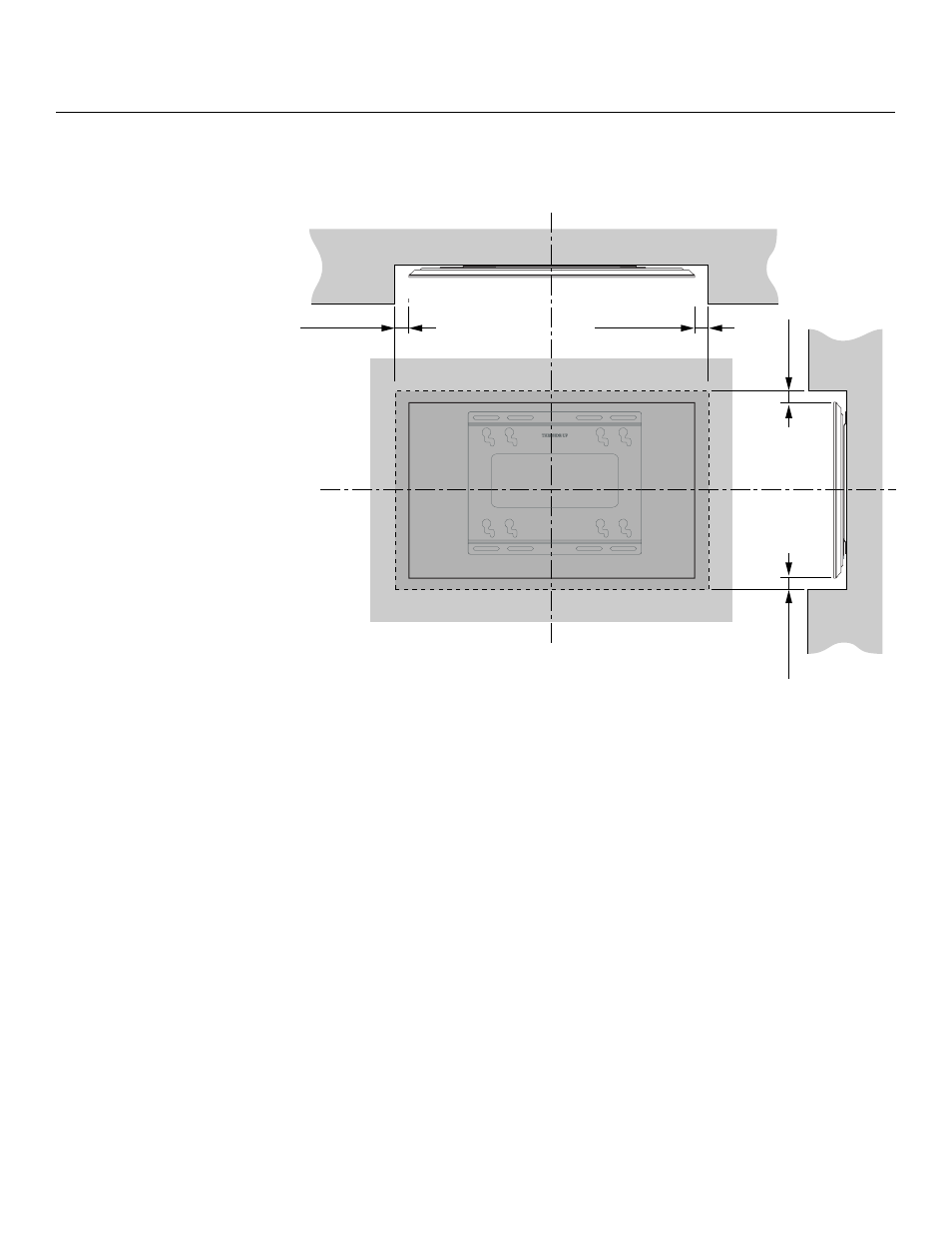

Figure 3-1. Ventilation Requirements for Enclosure Mounting
Ambient Light In general, minimize or eliminate light sources directed at the display. Contrast ratio in your
images will be noticeably reduced if light directly strikes the display, such as when a shaft
of light from a window or floodlight falls on the image. Images may then appear washed
out and less vibrant.
Other Considerations Other considerations and tips that can help improve your installation:
• Keep the ambient temperature constant and below 35°C (95°F). Keep the display away
from heating and/or air conditioning vents. Changes in temperature may cause drifts in
the display circuitry, which may affect performance.
• Keep the display away from devices that radiate electromagnetic energy such as
motors and transformers. Common sources of these include slide projectors,
speakers, power amplifiers and elevators.
Rack-Mounting the DHD
Controller
The DHD Controller can be placed on any flat, stable surface such as a shelf or table, or it
can be rack-mounted using the supplied mounting hardware. Place the DHD Controller in
a location that provdes easy access to the power connector.
To mount the DHD Controller in a standard, 19-inch equipment rack, install the mounting
ears on either side of the chassis using the supplied screws. Then, secure the mounting
ears to the rack.
➤
50 mm (2")
50
mm
(2")
50
mm
(2")
Wall
Wall
50 mm (2")
➤
➤
➤
