Connecting to Other Devices
By connecting an external MIDI device and exchanging performance data, you can control one device from the other.
For instance, you can output sound from the other instrument or switch Tones on the other instrument.
fig.aaaa
When the HP307 is connected to a MIDI sequencer, set it to
fig.aaaa
Making the Connection
1.
Turn the volume all the way down on the HP307 and on
the MIDI device.
2.
Switch off the power to the HP307 and the MIDI device.
3.
Use a MIDI cables (sold separately) to connect the MIDI
connectors to each other.
4.
Switch on the power to the HP307 and the connected
MIDI device.
5.
Adjust the volume level on the HP307 and the connected
MIDI device.
6.
You should also set the MIDI transmit channel as needed.
For details on the MIDI transmit channel, refer to “MIDI
Transmit Channel Settings (MIDI Transmit Ch.)” (p. 68).
Connecting to MIDI Devices
What’s MIDI?
MIDI, short for “Musical Instrument Digital Interface,” was developed as a universal standard for the exchange of performance data between
electronic instruments and computers.
The HP307 is equipped with MIDI connectors to let it exchange performance data with external devices. These connectors can be used to
connect the HP307 to an external device for even greater versatility.

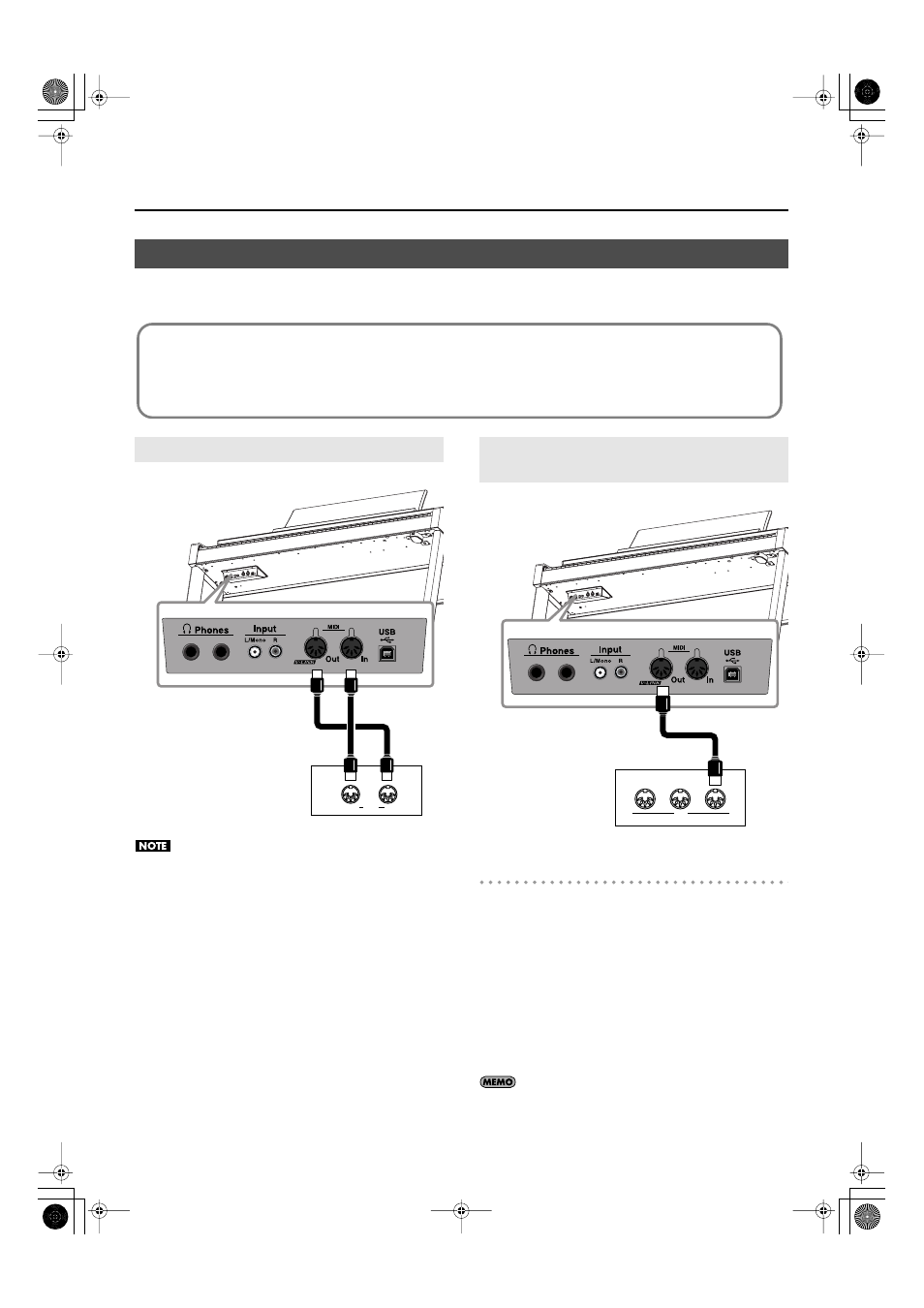

Connecting a MIDI Sequencer to the HP307
OUT
MIDI
IN
MIDI Sequencer
MIDI cable
MIDI Out/In connectors
Producing Sounds from a MIDI Sound
Module by Playing the HP307
THRU
OUT
MIDI
IN
MIDI Sound Module
MIDI Out connector
MIDI cable
