Figure 5-1. clearing the cmos contents – National Instruments NI PXIe-8130 User Manual
Page 66
Chapter 5
Troubleshooting
© National Instruments Corporation
5-3
3.
Move the jumper on W2 from pins 1–2 to pins 2–3 as shown in
Figure 5-1.
4.
Wait one second. Move the jumper back to pins 1–2.
5.
Reinstall the controller in the chassis.
Caution
Do not leave the jumper on pins 2–3. Doing so decreases battery life. Also, the
controller will not boot.

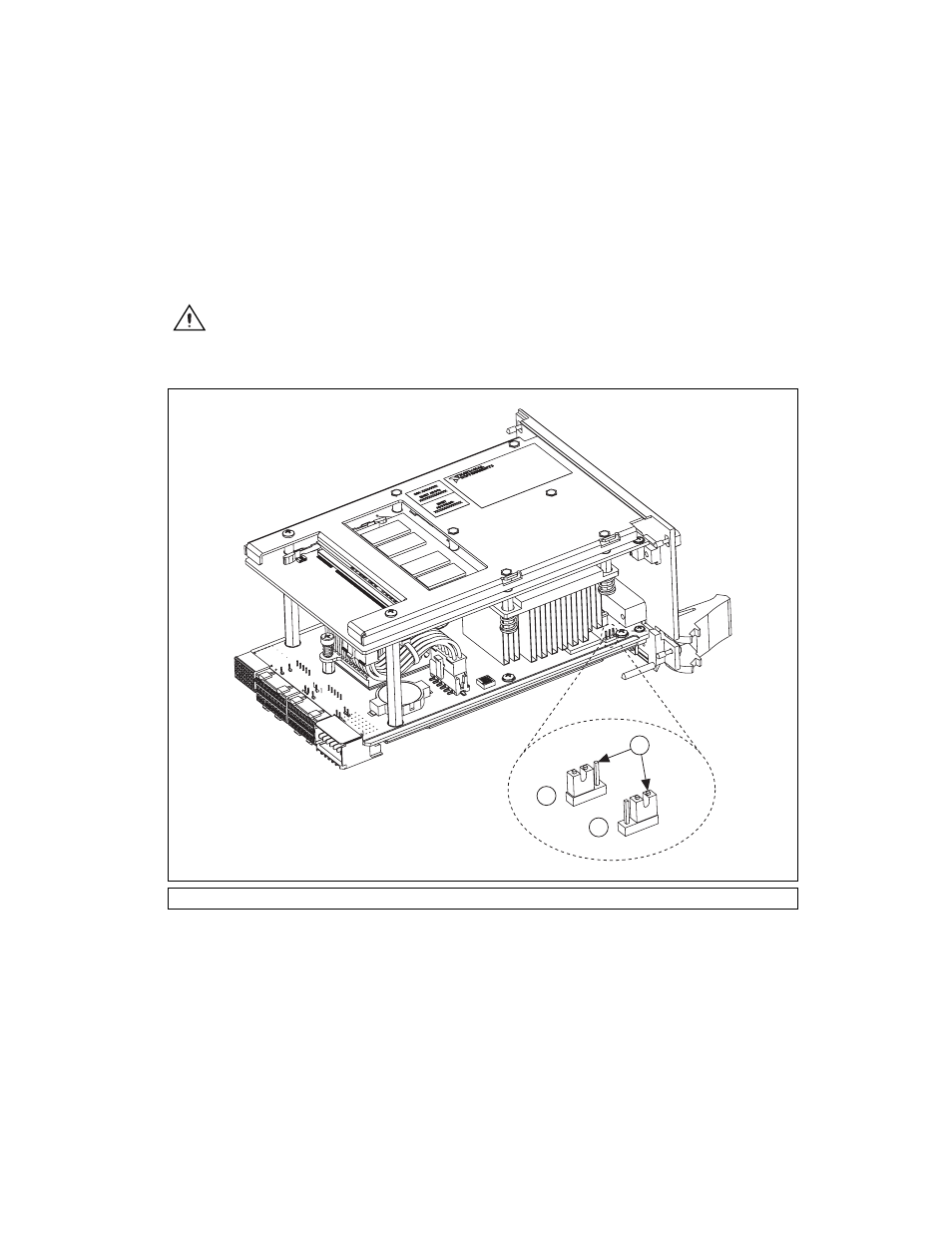

Figure 5-1. Clearing the CMOS Contents
1
Clear CMOS Contents
2
Pin 1
3
Normal Operation (Default)
1
3
2
