Chapter 2 Installation and Configuration
NI PXIe-8130 User Manual 2-2 ni.com
4. Remove the protective plastic covers from the four bracket-retaining
screws as shown in Figure 2-1.

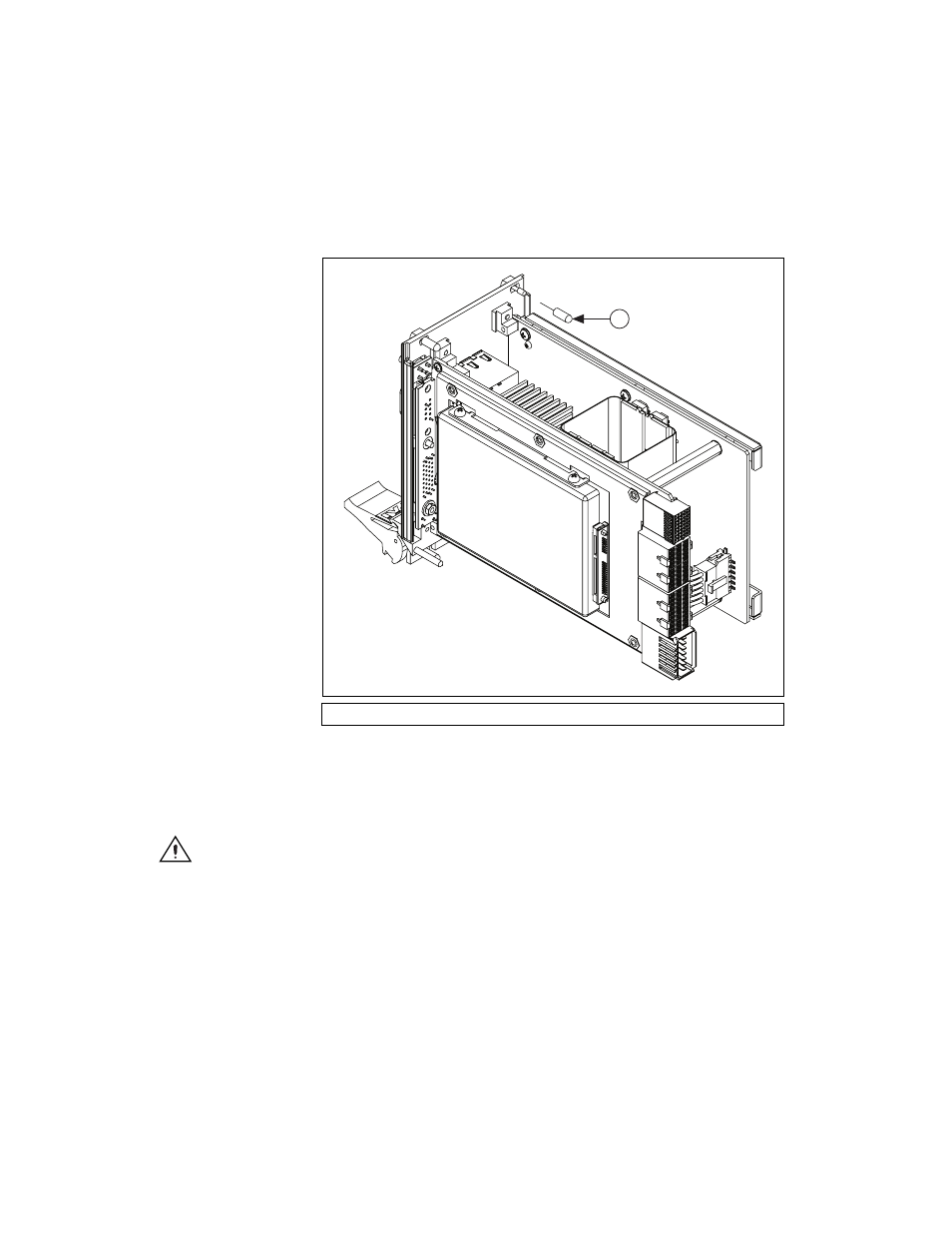

Figure 2-1. Removing Protective Screw Caps
5. Make sure the injector/ejector handle is in its downward position.
Align the NI PXIe-8130 with the card guides on the top and bottom
of the system controller slot.
Caution Do not raise the injector/ejector handle as you insert the NI PXIe-8130.
The module will not insert properly unless the handle is in its downward position
so that it does not interfere with the injector rail on the chassis.
6. Hold the handle as you slowly slide the module into the chassis until
the handle catches on the injector/ejector rail.
7. Raise the injector/ejector handle until the module firmly seats
into the backplane receptacle connectors. The front panel of the
NI PXIe-8130 should be even with the front panel of the chassis.
1 Protective Screw Cap (4X)
1
