Chapter 3 I/O Information
© National Instruments Corporation 3-11 NI PXIe-8130 User Manual
Trigger
The TRIG connector is the software-controlled trigger connection for
routing PXI triggers to or from the backplane trigger bus.

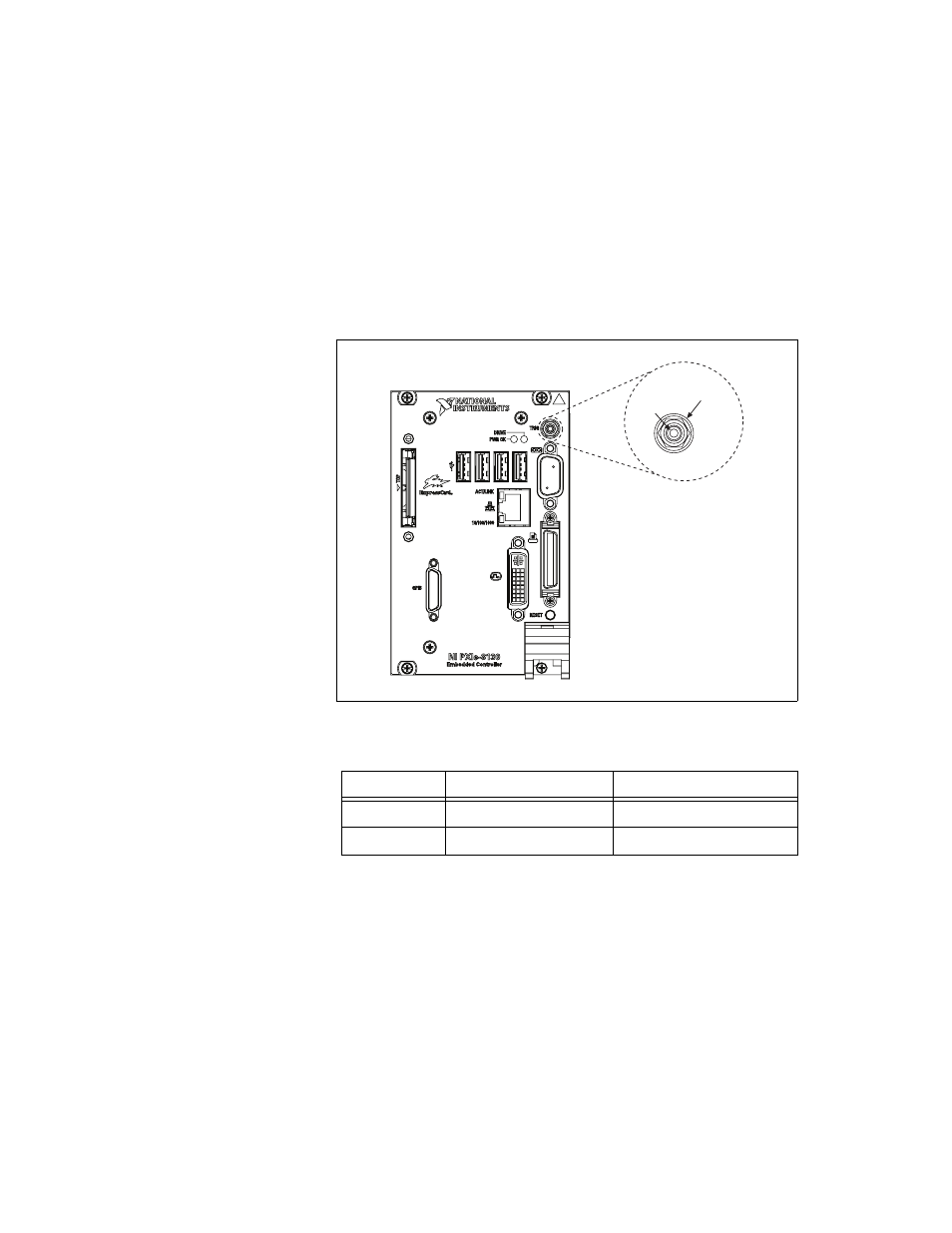

Figure 3-7 shows the TRIG connector location on the NI PXIe-8130.
Table 3-8 lists and describes the trigger connector signals.
Figure 3-7. TRIG Connector Location and Pinout
Table 3-8. TRIG Connector Signals
Pin Signal Name Signal Description
1 TRIG Trigger
2 (Shield) GND Ground
1
2
