Chapter 3 I/O Information
NI PXIe-8130 User Manual 3-14 ni.com
ExpressCard/34 Slot
The NI PXIe-8130 controller is equipped with an ExpressCard/34 slot on
the front panel, which provides I/O expansion and options for removable
storage.
Figure 3-9 shows the location and pinouts for the ExpressCard/34 slot on
the NI PXIe-8130. Table 3-10 lists and describes the ExpressCard
connector signals.

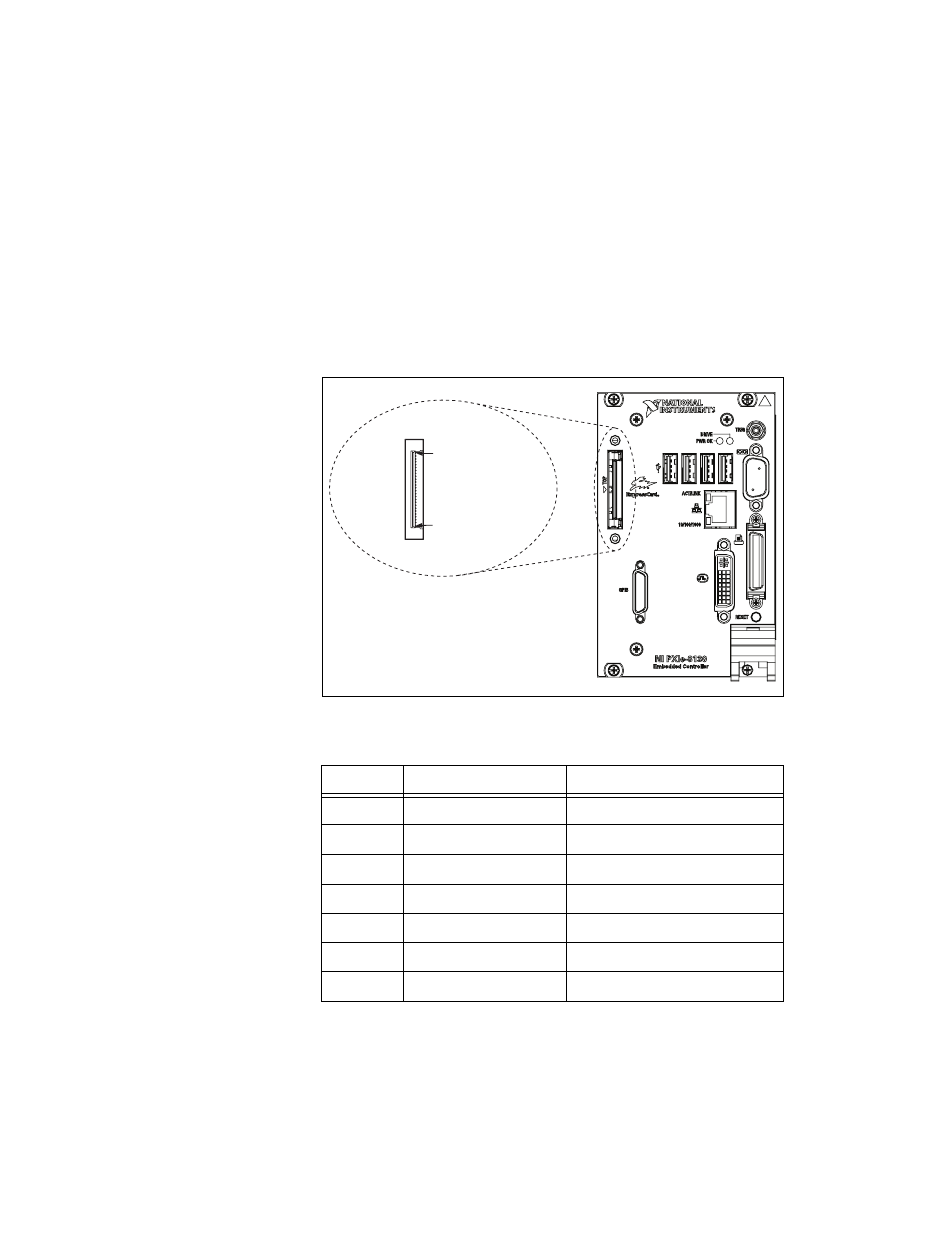

Figure 3-9. ExpressCard/34 Slot Location and Pinout
Table 3-10. ExpressCard Connector Signals
Pin Signal Name Signal Description
1 GND Ground
2 USBD– USB Data –
3 USBD+ USB Data +
4 CPUSB# USB Presence
5 RESERVED Reserved by spec for future use
6 RESERVED Reserved by spec for future use
7 SMBCLK SMBus Clock
ExpressCard/34
Slot
1
26
