Figure 4-25. WFTRIG Output Signal Timing

UPDATE* Signal

Any PFI pin can externally input the UPDATE* signal, which is available
as an output on the PFI5/UPDATE* pin.

As an input, UPDATE* is configured in the edge-detection mode. You can
select any PFI pin as the source for UPDATE* and configure the polarity
selection for either rising or falling edge. The selected edge of UPDATE*
updates the outputs of the DACs. In order to use UPDATE*, you must set
the DACs to posted-update mode.

As an output, UPDATE* reflects the actual update pulse that is connected
to the DACs, even if the updates are being externally generated by another
PFI. The output is an active low pulse with a pulse width of 300 to 350 ns.
This output is set to high-impedance at startup.

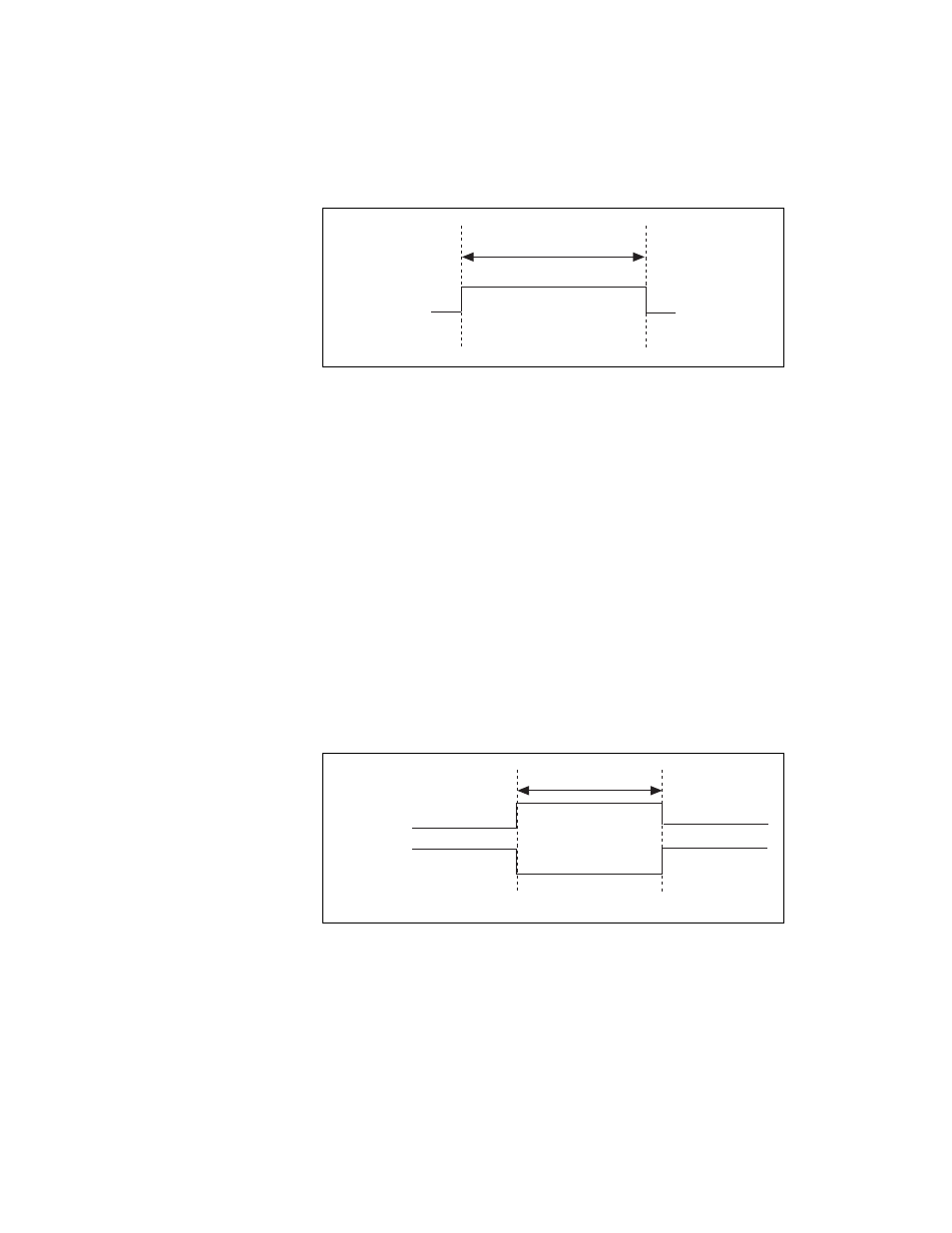

Figures 4-26 and 4-27 show the input and output timing requirements for
UPDATE*.

Figure 4-26. UPDATE* Input Signal Timing

t

w

= 50 to 100 ns

t

w

Rising-Edge

Polarity

Falling-Edge

Polarity

t

w

= 10 ns minimum

t

w
