Chapter 4 Connecting Signals
© National Instruments Corporation 4-17 NI 6013/6014 User Manual
Connecting Analog Output Signals
♦ NI 6014 only
The AO signals are DAC0OUT, DAC1OUT, and AOGND. DAC0OUT and
DAC1OUT are not available on the NI 6013.
DAC0OUT is the voltage output signal for AO channel 0. DAC1OUT is the
voltage output signal for AO channel 1.
AOGND is the ground-referenced signal for both AO channels and the
external reference signal.

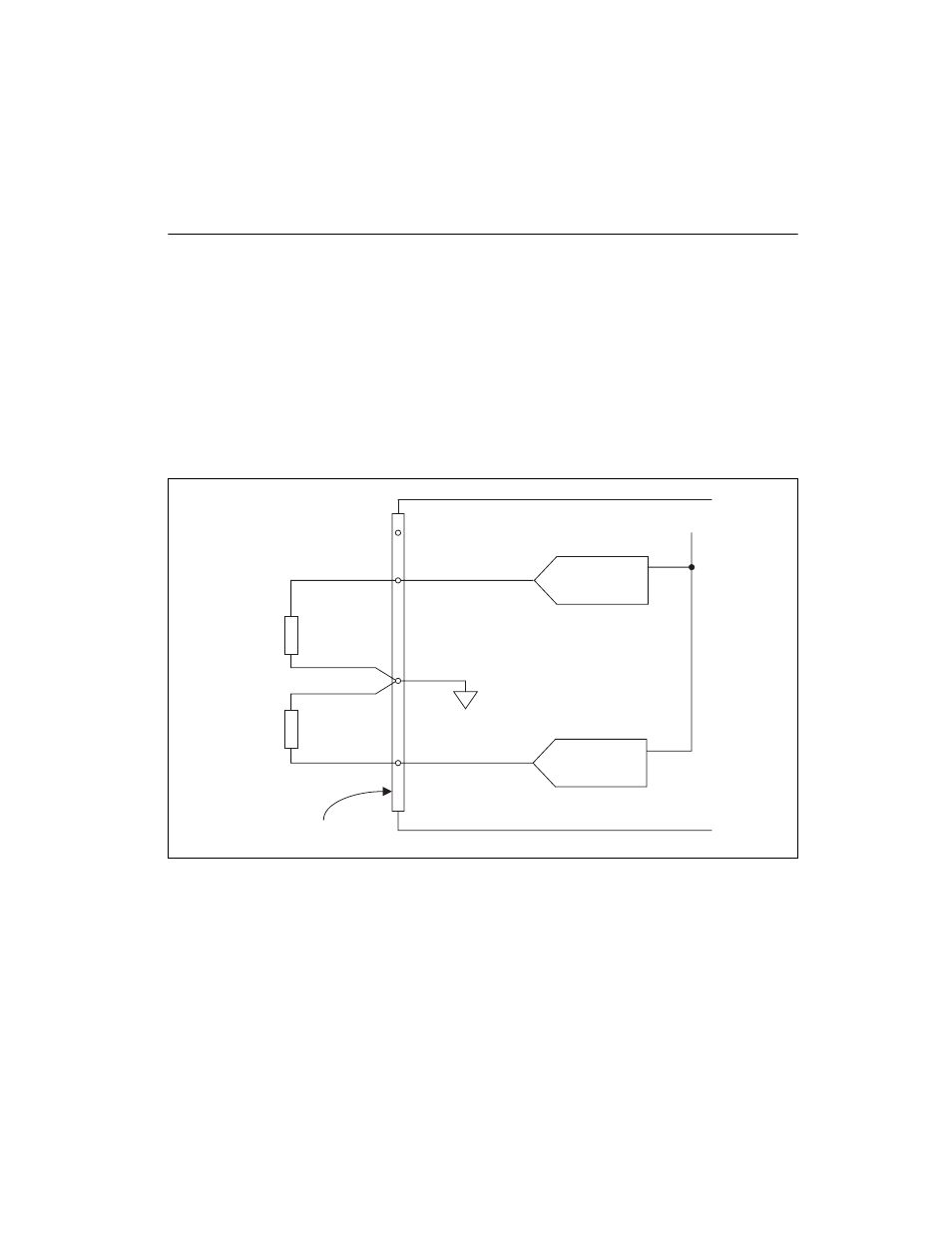

Figure 4-8 shows how to connect AO signals to the NI 6013/6014.
Figure 4-8. AO Connections
Load
Load
VOUT 0
VOUT 1
+
–
+
–
AOGND
DAC1OUT
Analog Output Channels
DAC0OUT
Channel 1
Channel 0
I/O Connector
