Appendix C Removing the SCXI-1125
SCXI-1125 User Manual C-2 ni.com
2. If the SCXI-1125 is the module cabled to the E Series DAQ device,
disconnect the cable.
3. Remove any terminal block that connects to the SCXI-1125.
4. Rotate the thumbscrews that secure the SCXI-1125 to the chassis
counterclockwise until they are loose, but do not completely remove
the thumbscrews.
5. Remove the SCXI-1125 by pulling steadily on both thumbscrews until
the module slides completely out.

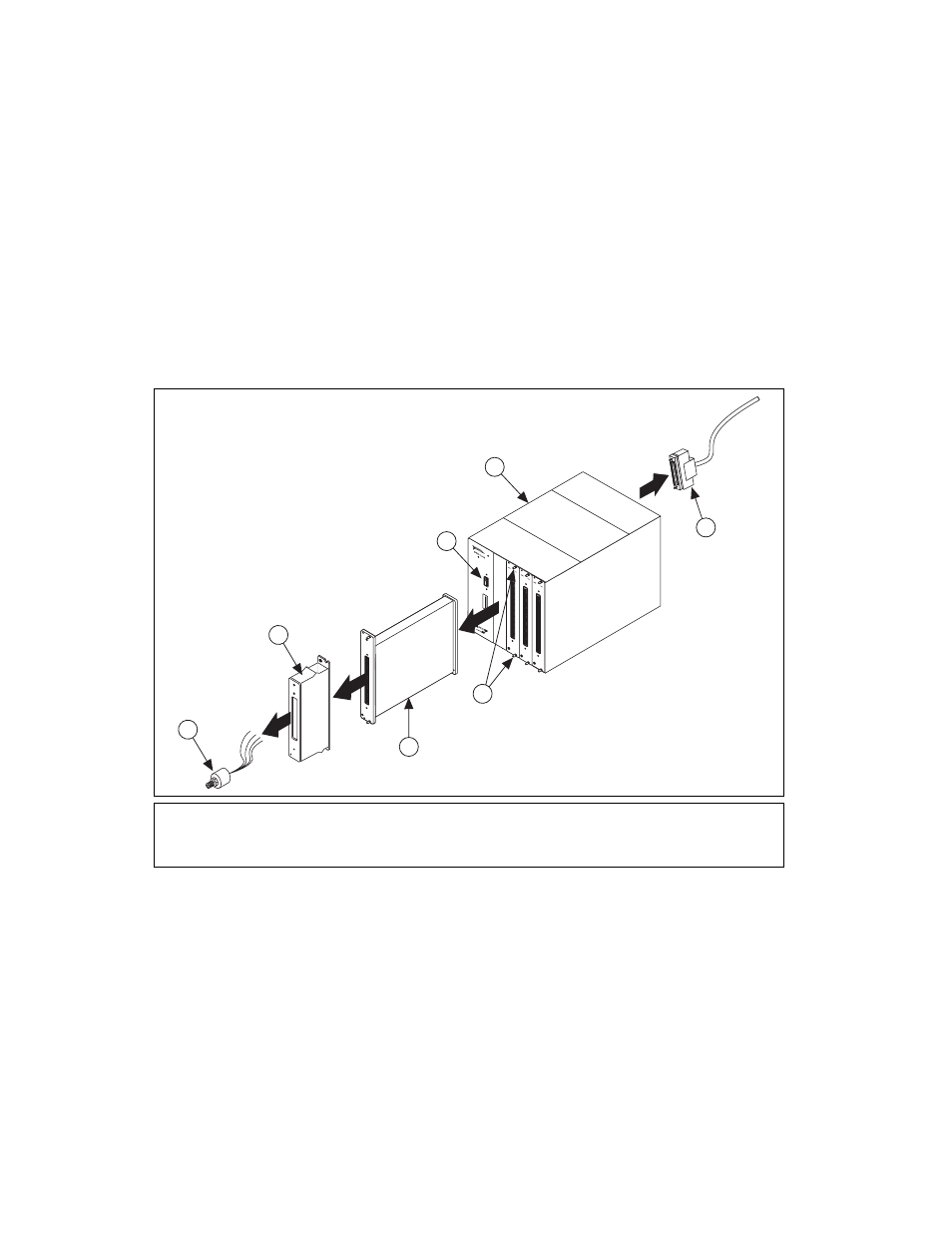

Figure C-1. Removing the SCXI-1125
1 Cable
2 SCXI Module Thumbscrews
3 SCXI-1125
4 Sensor
5 Terminal Block
6 SCXI Chassis Power Switch
7 SCXI Chassis
M AIN FR AM E
SCXI
3
2
5
4
3
2
1
ADDRESS
1
6
7
SC XI 11 00
4
5
