The Netopia R5000 Series suppor ts Ethernet connections through its eight Ethernet por ts. The router
automatically detects which Ethernet por t is in use.
You can connect 10Base-T or 10/100 Ethernet devices to the Netopia R5000 Series Router.
11110
0
0
0B
B
B
Baa
a
assssee
e
e----TT
T
T
You can connect a standard 10Base-T Ethernet network to the Netopia R5000 Series Router using any of its
available Ethernet por ts.

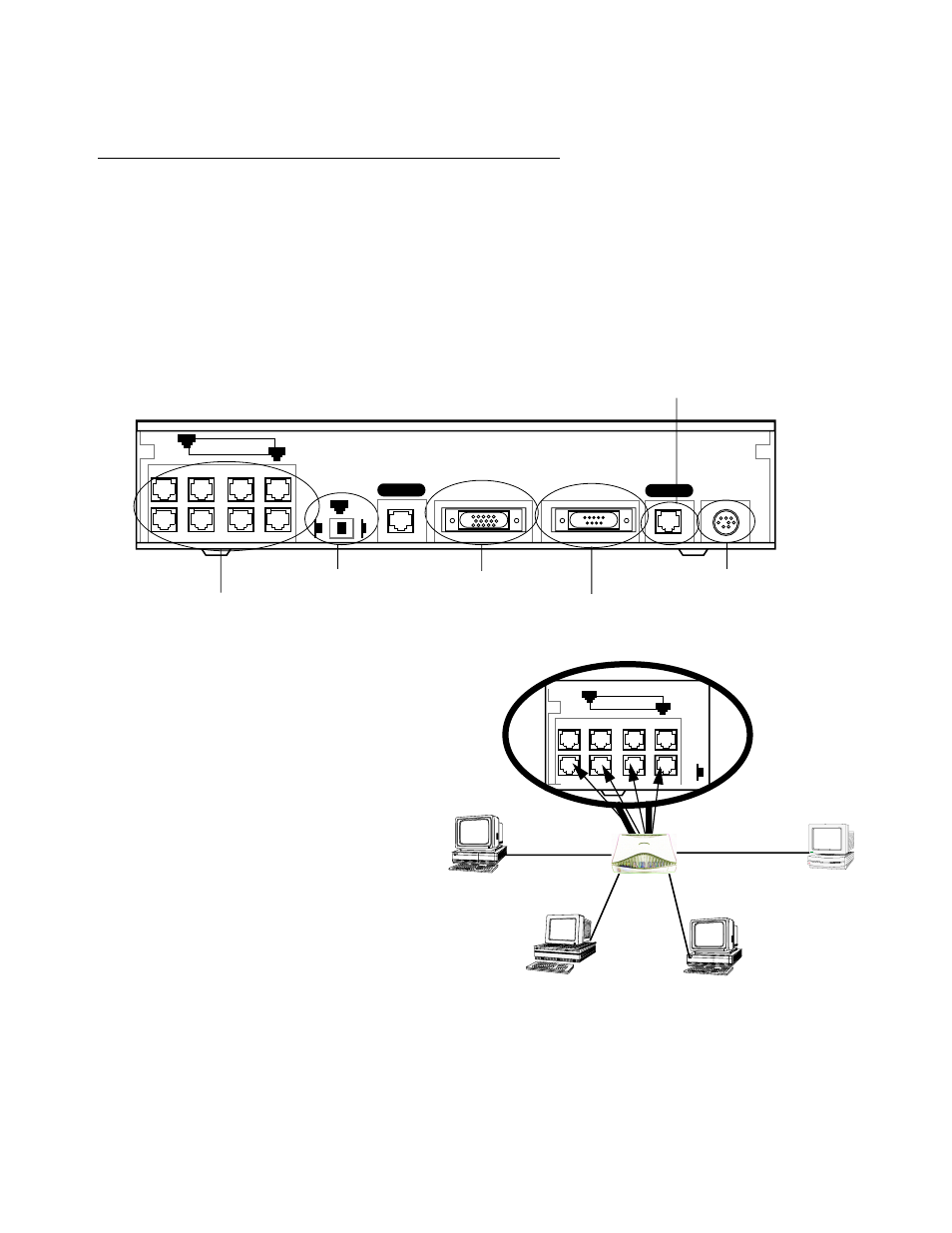

Netopia R5200/5300 back panel
The Netopia R5000 Series in a 10Base-T network
Ethernet
Normal
Auxiliary
Console
Power
Line 1
8 por t Ethernet hub
Crossover switch
Line por t
Auxiliar y por t
Console por t
Power por t
8
1
1
Uplink
Line 2
Ethernet
Nor-
8
1
To connect your 10Base-T network to the Netopia
R5000 Series through an Ethernet por t, use a
10Base-T cable with RJ-45 connectors.
If you have more than eight devices to connect,
you can attach additional devices using another
10Base-T hub.
