Chapter 3
Gabor Transform-Based Order Tracking
© National Instruments Corporation
3-9
LabVIEW Order Analysis Toolset User Manual

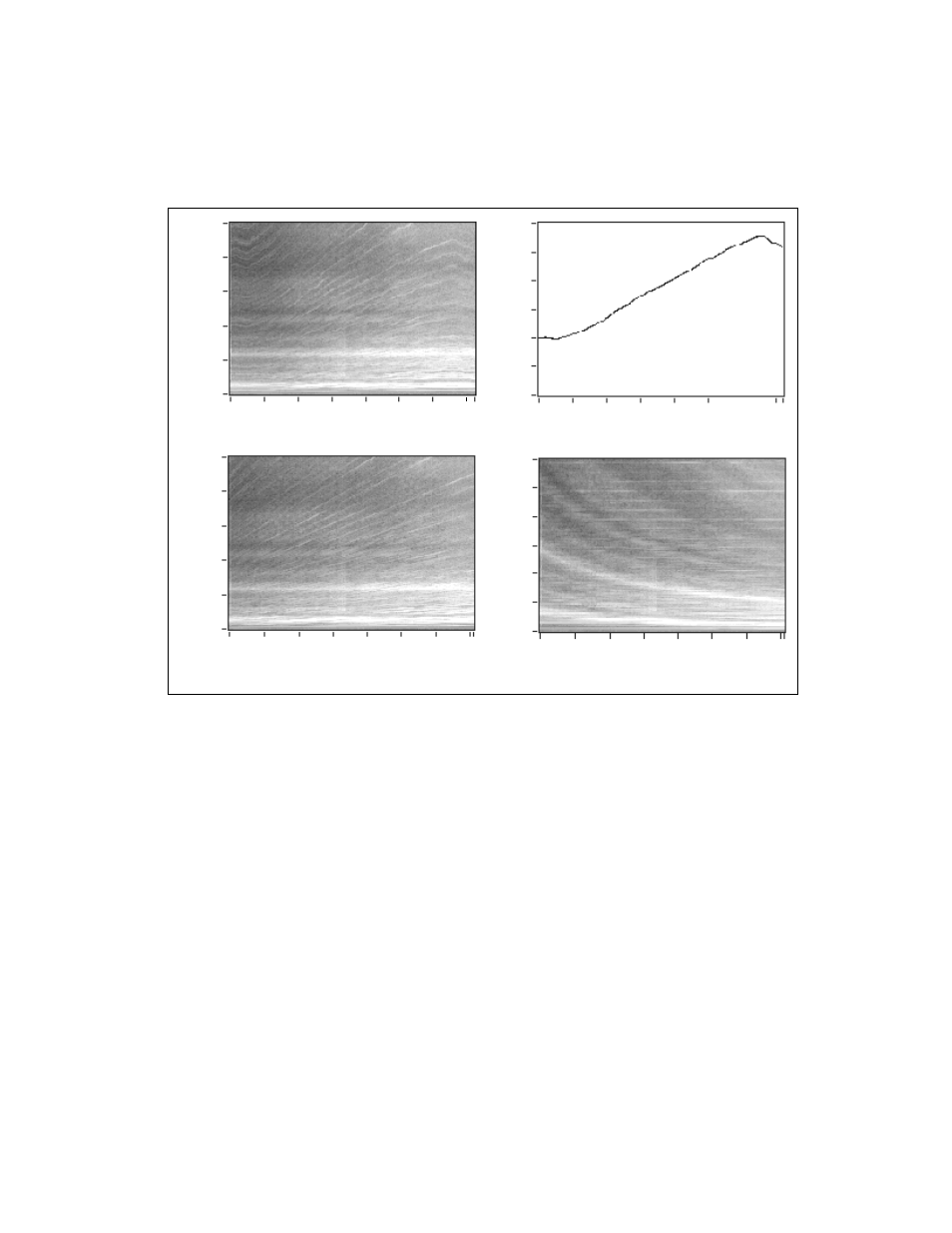

Figure 3-7. 2D Spectral Maps
Figure 3-7(a) is the frequency-time spectral map generated directly from
the Gabor coefficients. The magnitudes of coefficients are shown as gray
scale, with full white indicating a maximal magnitude and full black
indicating a minimal magnitude. Order components are shown as curves.
Because the frequency of each order component shifts as the rotational
speed varies over time, the outline of each curve is similar to the rpm-time
function shown in Figure 3-7(b).
In Figure 3-7(a), notice the horizontal white lines. The horizontal white
lines indicate the large power around the resonance frequencies. The
physical characteristics of the system containing the rotating machinery
determine the resonance frequency. The resonance frequency does not
change as the rotational speed changes.
5000
4000
3000
2000
1000
0
0
5
10
15
20
25
30
36
0.0
5.0
10.0
15.0
20.0
25.0
30.0
36.0
3000
2500
2000
1500
1000
500
0
5000
4000
3000
2000
1000
0
991
1250
1500
1750
2000 2250
2500 2774
0
25
50
75
100
125
150
991
1250
1500 1750
2000 2250
2500 2774
Order
RPM
F
requency
F
requency
RPM
(c) Frequency-RPM Spectral Map
RPM
(d) Order-RPM Spectral Map
Time (s)
(a) Frequency-Time Spectral Map
Time (s)
(b) RPM vs. Time
