Chapter 1 Introduction to the LabVIEW Order Analysis Toolset
© National Instruments Corporation 1-7 LabVIEW Order Analysis Toolset User Manual

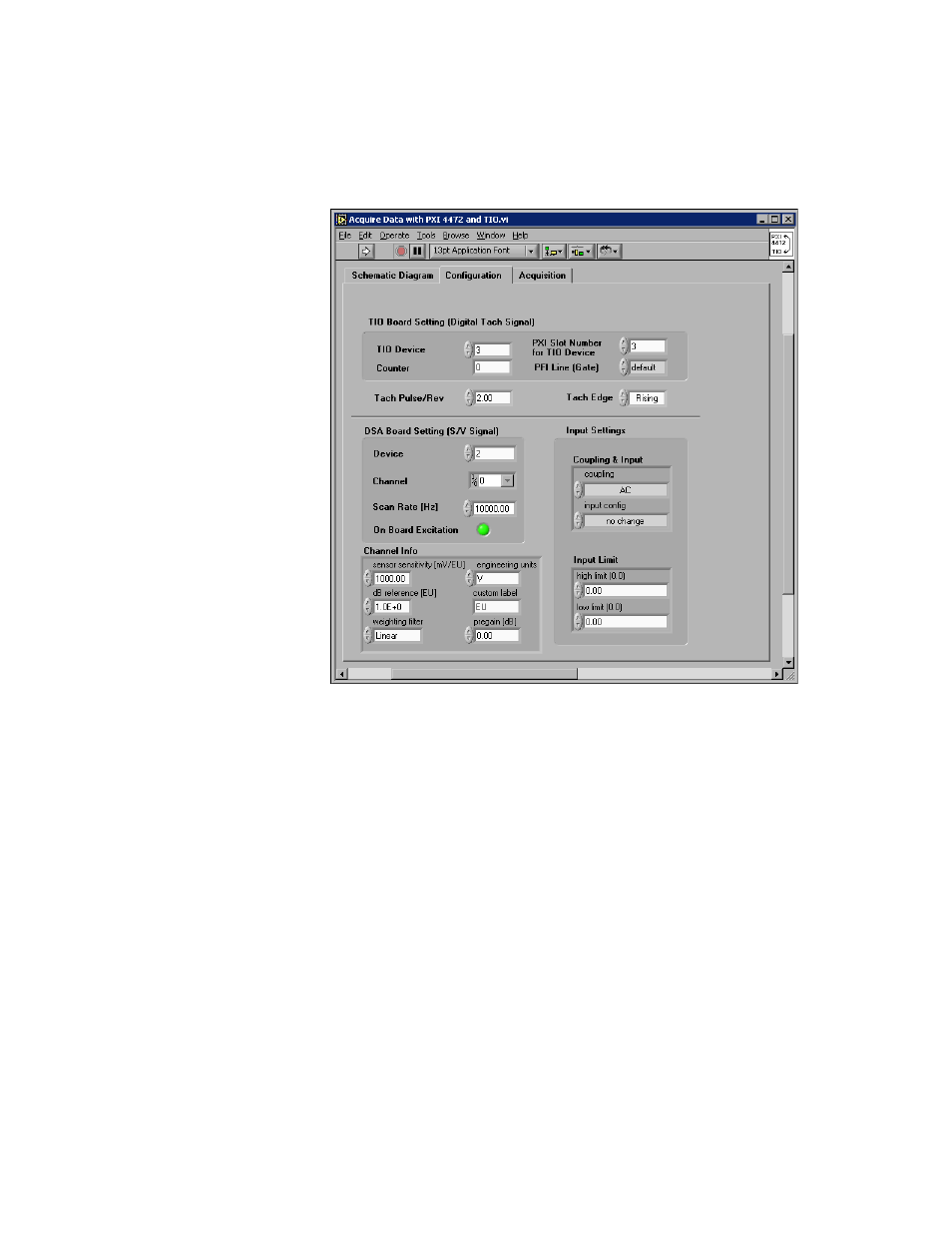

Figure 1-3. Acquire Data with PXI 4472 and TIO VI Configuration Tab
Use the Configuration tab of the Acquire Data with PXI 4472 and TIO VI,
shown in Figure 1-3, to configure the DAQ devices. Use one of the
counters on a TIO device to receive TTL-compatible tachometer pulses.
Use the controls in the TIO Board Setting (Digital Tach Signal) section
of the Configuration tab to configure the TIO device. Use an NI PXI-4472
to acquire the data from the sound or vibration sensor. Use the controls in
the DSA Board Setting (S/V Signal) and Input Settings sections of the
Configure tab to configure the NI PXI-4472. After configuring the DAQ
devices, click the Acquisition tab, shown in Figure 1-4.
