TRACKER 5380 Installation and Operation Manual 54 NAVMAN
Black
Power/data cable
Orange
Blue
NavBus wires
to other Navbus instruments

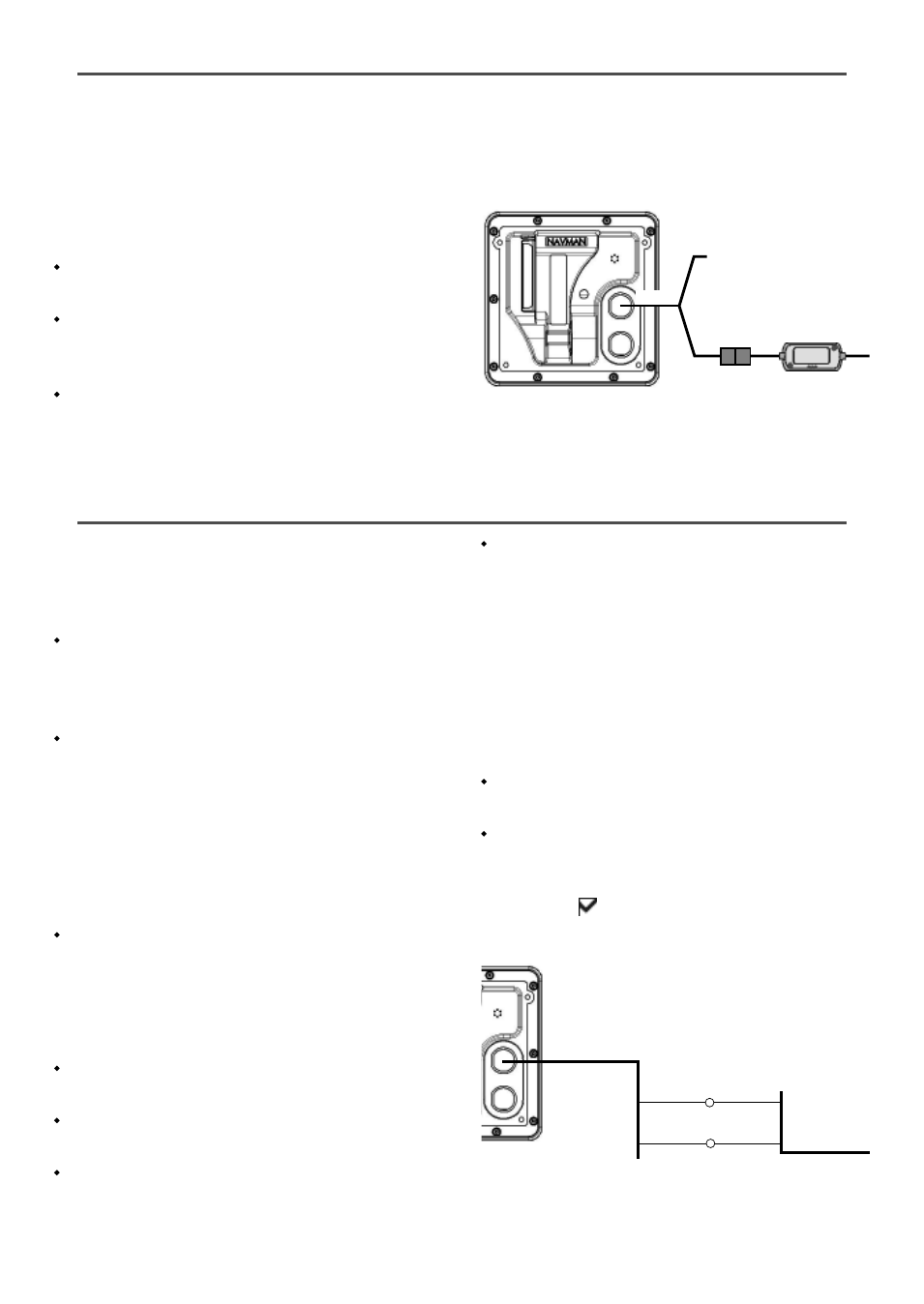

If the boat has one or two SmartCraft capable
Mercury petrol/gasoline engines, connect
the TRACKER to the SmartCraft engines with
an optional SmartCraft gateway. The display
unit can display engine data and trim and can
control troll speed.
Note:
Fit a single gateway for single engines and
a dual gateway for dual engines.
SmartCraft engines have fuel flow sensors,
therefore Navman fuel sensors are not
required as well.
If the fuel tank does not have SmartCraft
level sensors, wire for auto power (see
section 15-4).
SmartCraft
gateway
NavBus is Navman’s system for connecting
instruments together to interchage data and
share transducers. When instruments are
connected by NavBus:
If the units, alarms or calibration are
changed in one instrument, then the values
will automatically change in all other
instruments of the same type.
Each instrument can be assigned to a group
of instruments. If the backlight is changed
in an instrument in group 1, 2, 3 or 4 then
the backlight will automatically change in
the other instruments in the same group.
If the backlight is changed in an instrument
in group 0 then no other instruments are
affected.
If an alarm sounds, mute it by clearing the
alarm on any instrument which can display
that alarm.
NavBus and the TRACKER
The TRACKER can:
Display wind speed and direction from an
optional Navman Wind instrument.
Receive and display depth from an optional
Navman depth instrument.
Receive and display boat speed and water
temperature from a paddlewheel sensor on
an optional Speed instrument.
Receive barometric pressure from an
optional Navman VHF radio. The TRACKER
can display:
Baro: barometric pressure
Baro history: barometer history
Weather: a predication, based on changes
in barometric pressure
Fish forecaster: a prediction based on
changes in barometric pressure
Receive data from an optional GPS or
GPS/DGPS source.
Send data to optional NAVMAN
instruments, for example to a repeater.
During setup for NavBus instruments, set
NavBus to and assign the instrument a
NavBus group number (see section 14-9)
15-7 Installation: SmartCraft
15-8 Installation: Other NavBus instruments
During setup enter the SmartCraft setup data.
For information on installing, setting up and
using SmartCraft, see the SmartCraft Gateways
Installation and Operation Manual.
Black
White
Power/fuel splitter
cable (‘Y’ cable)
Other wiring
