Interfaces and indicator lights
E Copyright Nokia Networks Oy C33907001SE_00 3-1
Chapter 3
Interfaces and indicator lights
This chapter describes the external interfaces of M1112 and introduces
its front panel indicator lights.
3.1 Interfaces
M1112 has one ADSL line interface and one LAN interface (10Base-T
Ethernet). It also has a local management interface (CLI) for
management purposes. The ADSL line interface is compatible with
ETSI TS 101 388 specification.
ADSL line (DSL)
Ethernet ports
(ETH-1, ETH-2,
ETH-3, ETH-4)
Command line interface (CLI)
Mains connector
Power switch

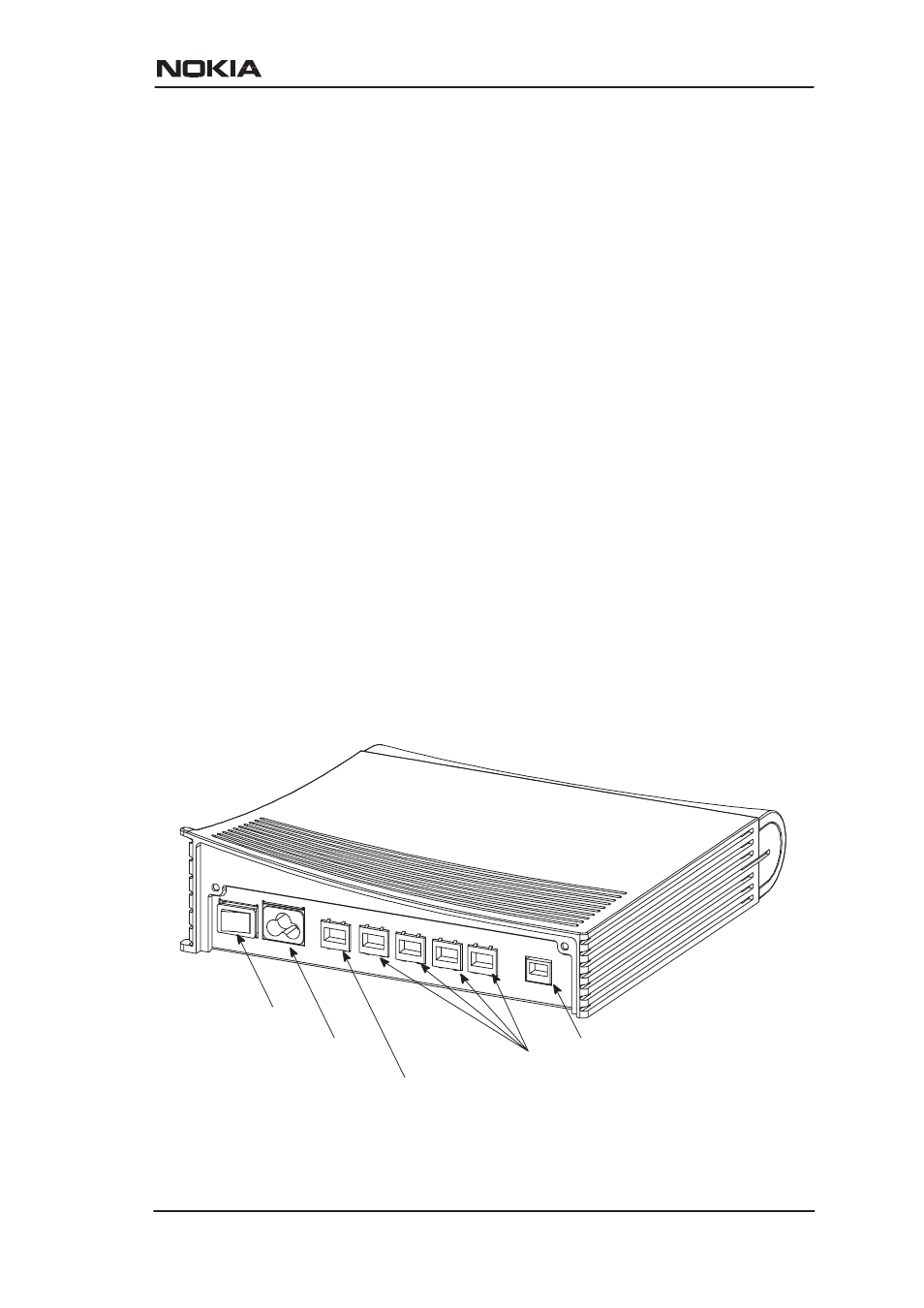

Figure 3-1 M1112 back panel
