NI WLS/ENET-9163 Carrier User Guide and Specifications 10 ni.com
Attaching the NI 9910 DIN-Rail
The NI 9910 DIN-Rail kit contains one clip for mounting the device on a
standard 35 mm DIN-Rail. To mount the device on a DIN-Rail, fasten the
DIN-Rail clip to the device using a number 2 Phillips screwdriver and
four M4
× 17 screws. The screws are included in the DIN-Rail kit. Make
sure the DIN-Rail kit is installed as illustrated in Figure 4, with the larger
lip of the DIN-RAIL positioned up. When the DIN-Rail kit is properly
installed, the NI WLS/ENET-9000 Series device is centered on the
DIN-Rail.
Caution Remove the C Series I/O module before mounting the carrier to the DIN-Rail.

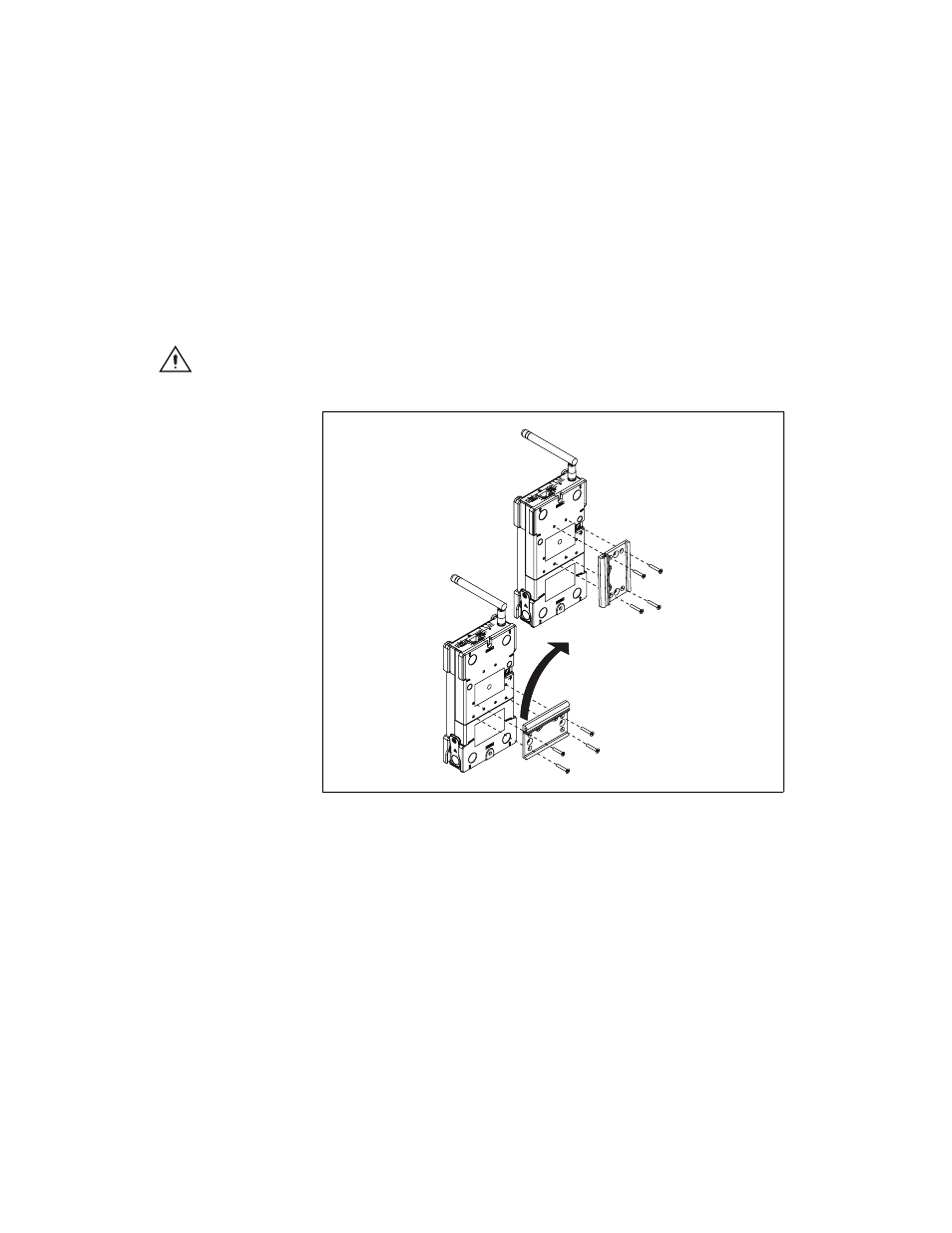

Figure 4. NI WLS/ENET-9000 Series Device DIN-Rail Installation
WLS LINK AC TIVE
STA TUS
PO WE
NI WLS-9163 NI WL S-9 16 3
RE SE T
LIN K/A CT
GN D
GN D PR 0 PR 1
10 /10 0 80 2.1 1g C S erie s C arr ier
INP UT 9 -30 V
10.5 W M AX V
C
NI WLS-9163 NI WL S-9 16 3
RE SE T
LIN K/A CT
GN D
GN D PR 0 PR 1
10 /10 0 80 2.1 1g C S erie s C arr ier
INP UT 9 -30 V
10 .5 W M AX V C
OR
WLS LINK AC TIVE
STA TUS
PO WE
