Warning – NETGEAR XE104 User Manual
Page 17
XE104 User Guide
Installing the XE104 Wall-Plugged Ethernet Switch
3-3
v1.0, September 2005
1. First, connect a XE104 Wall-Plugged Ethernet Switch to a LAN port on the router so that the
PowerLine network can gain access to the internet.
Do not connect the XE104 85 Mbps Wall-Plugged Ethernet Switch to a power strip, extension
cord, or surge protector as this may prevent them from working properly or degrade the
network performance.
a. Plug the blue Ethernet cable that came in the box into a LAN port on your router or switch
in your network.
b. Plug the XE104 into an electrical outlet near the router.

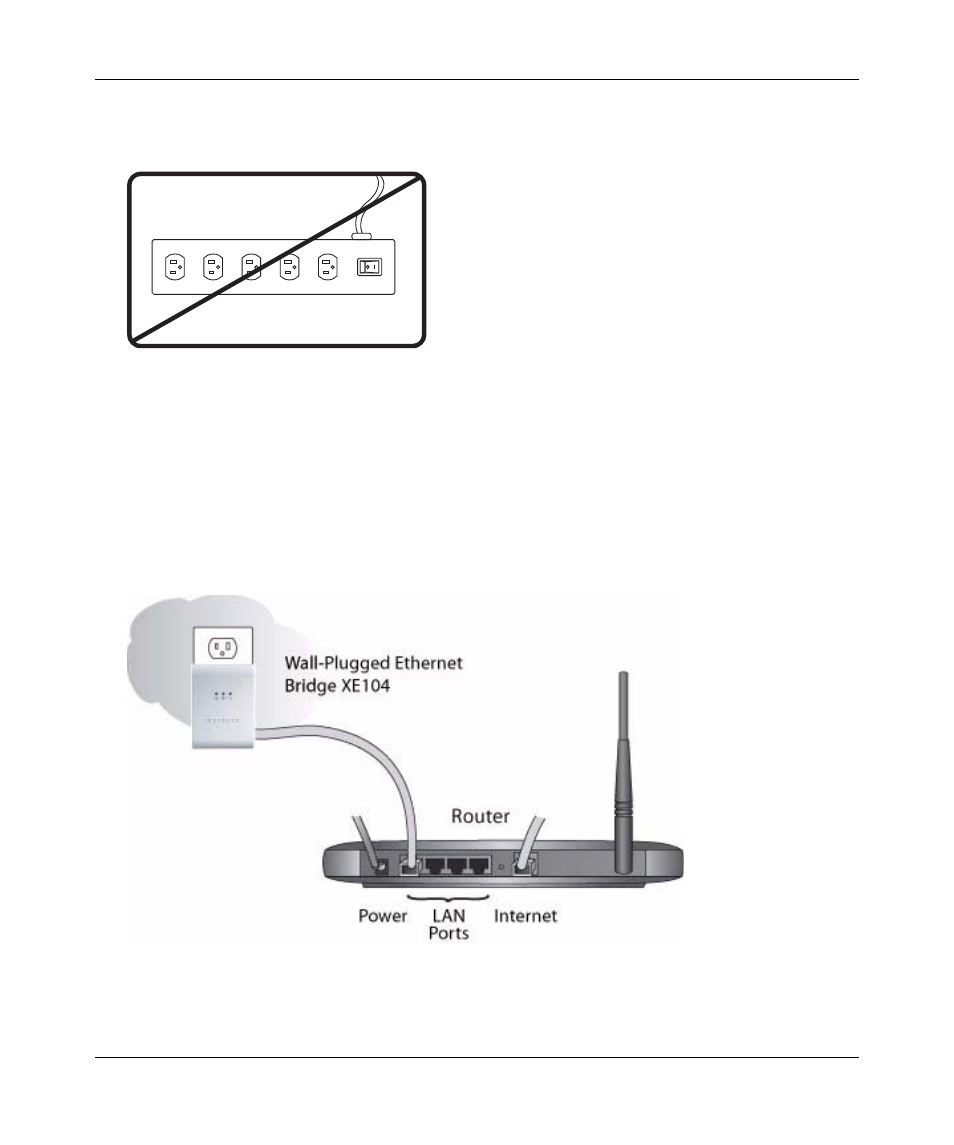

Figure 3-3
Figure 3-4
WARNING!
OFF
ON
