The XE104 Wall-Plugged Ethernet Switch
The front panel of the XE104 contains the status lights described below.
You can use the status lights to verify connections. Viewed from top to bottom, the table below
describes the lights on the front panel.

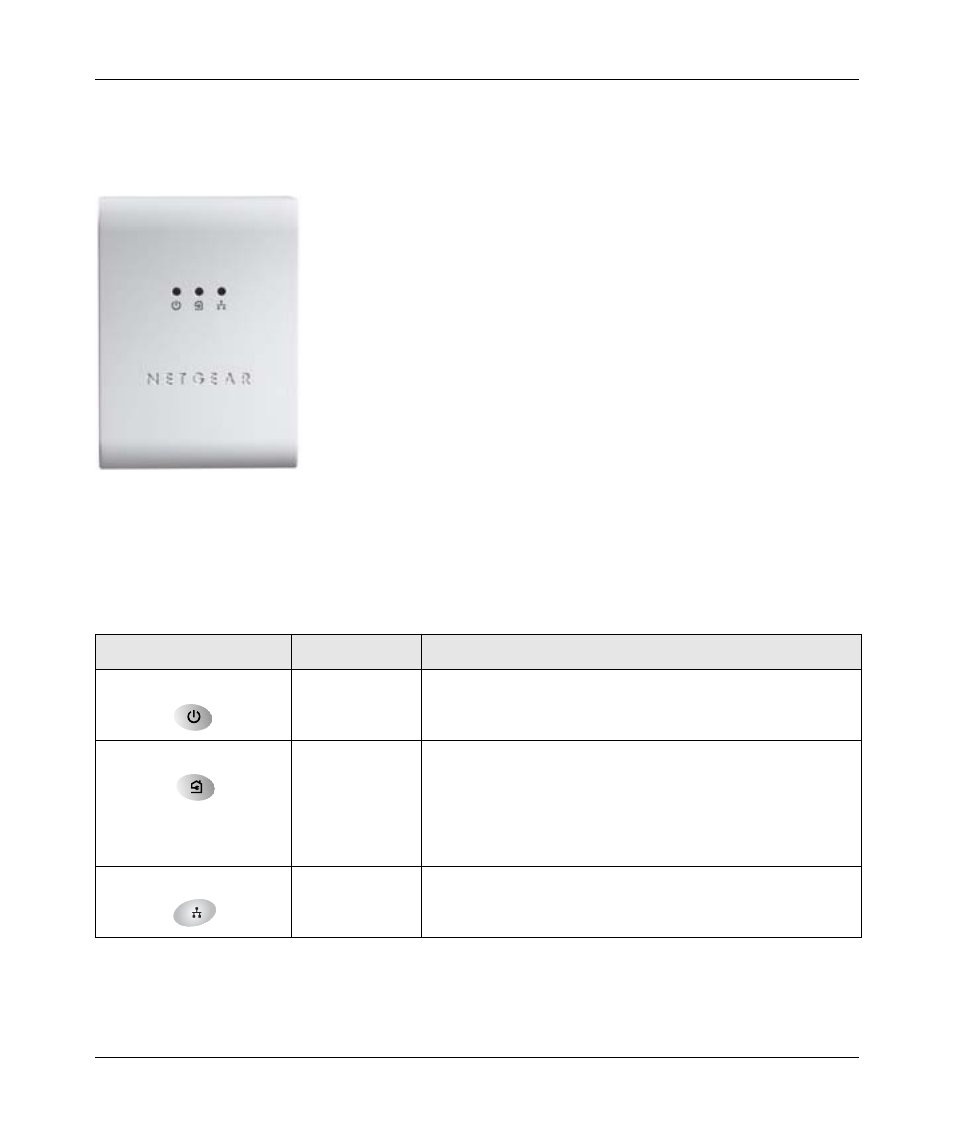

Figure 2-1
Table 2-1. Status Light Descriptions
Label Activity Description
Power On Green Solid
Blink
Off Power is supplied to the XE104.
Power on self test.
Power is not supplied to the XE104.
HomePlug On
Blink
Off
The HomePlug port has detected another PowerLine device
on the PowerLine network.
Data is being transmitted or received on the PowerLine
network
No other PowerLine devices detected on the PowerLine
network.
Ethernet Blink
Off Data is being transmitted or received between an Ethernet
port and the PowerLine.
There is no active Ethernet connection.
