28 Chapter 2 Provisioning the T7406
NN40110-300 NN40110-300
• Various Small Businesses
• Typically under 1,394 square meters/15,000 square
feet
• Mixture of closed offices and open spaces

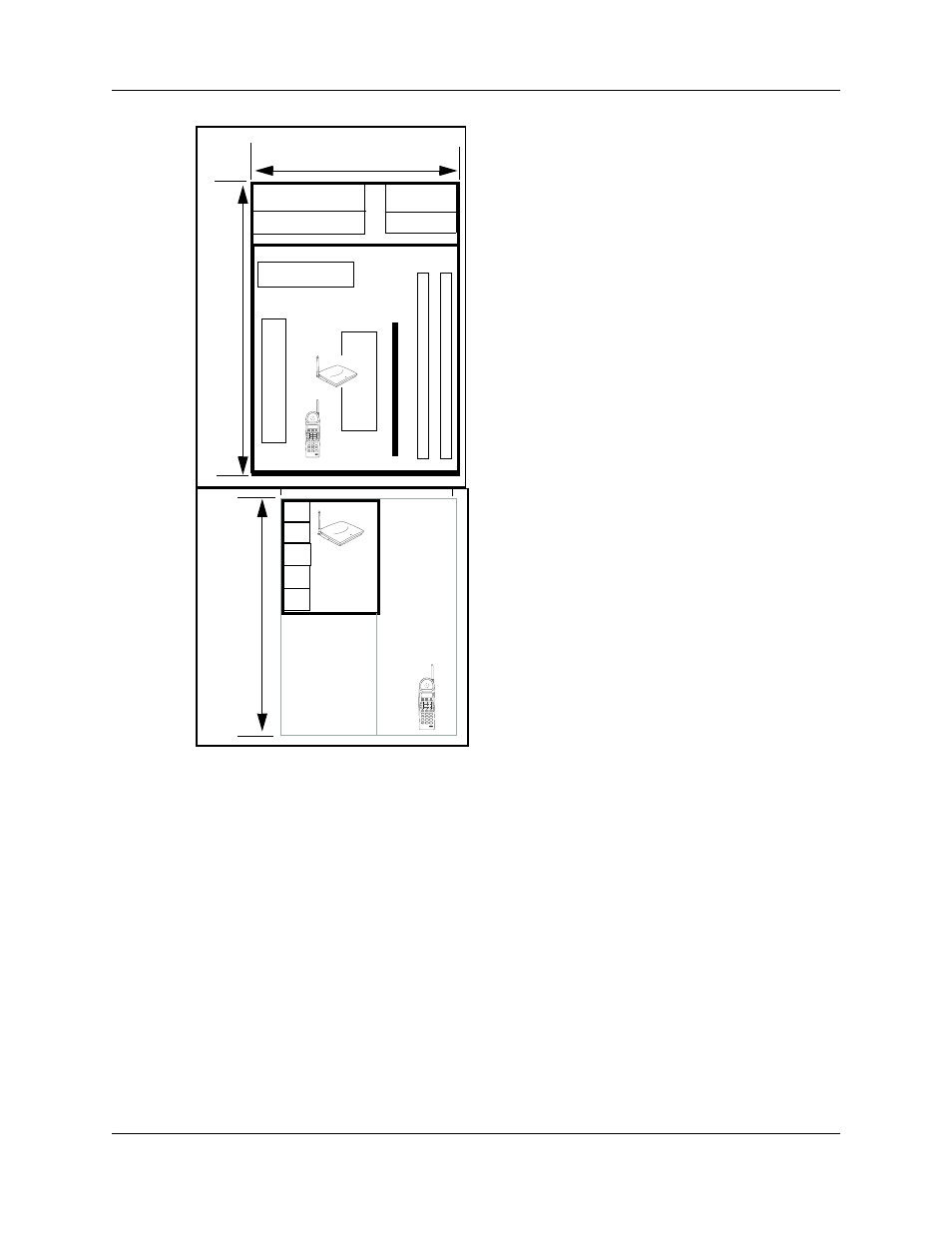

Typical facility with both office and warehousing
combined in one operation.
Some transmission path loss in expected with the
presence of dense firewall and racking/shelves filled
with dense materials. Consider placing base station
in largest room.
Range will be limited in this situation.
4Office with adjacent yard area(s)
• Various small businesses
• Typical office facility 465 to 929 square meters.
(5,000 to 10,000 sq. ft.)
• Adjacent open space or yard next to office
•Radio transmission will be relatively unimpaired in
more open environments as path loses due to barriers
such as walls and objects are minimized.
This environment may allow for ranges in excess of
95 m
(300 ft.).
Environments Unsuitable for the T7406
Campus Environment (multiple buildings on one site)
The campus environment is not a suitable application for the T7406.
61 m/
200 ft.
