The Router’s Front Panel

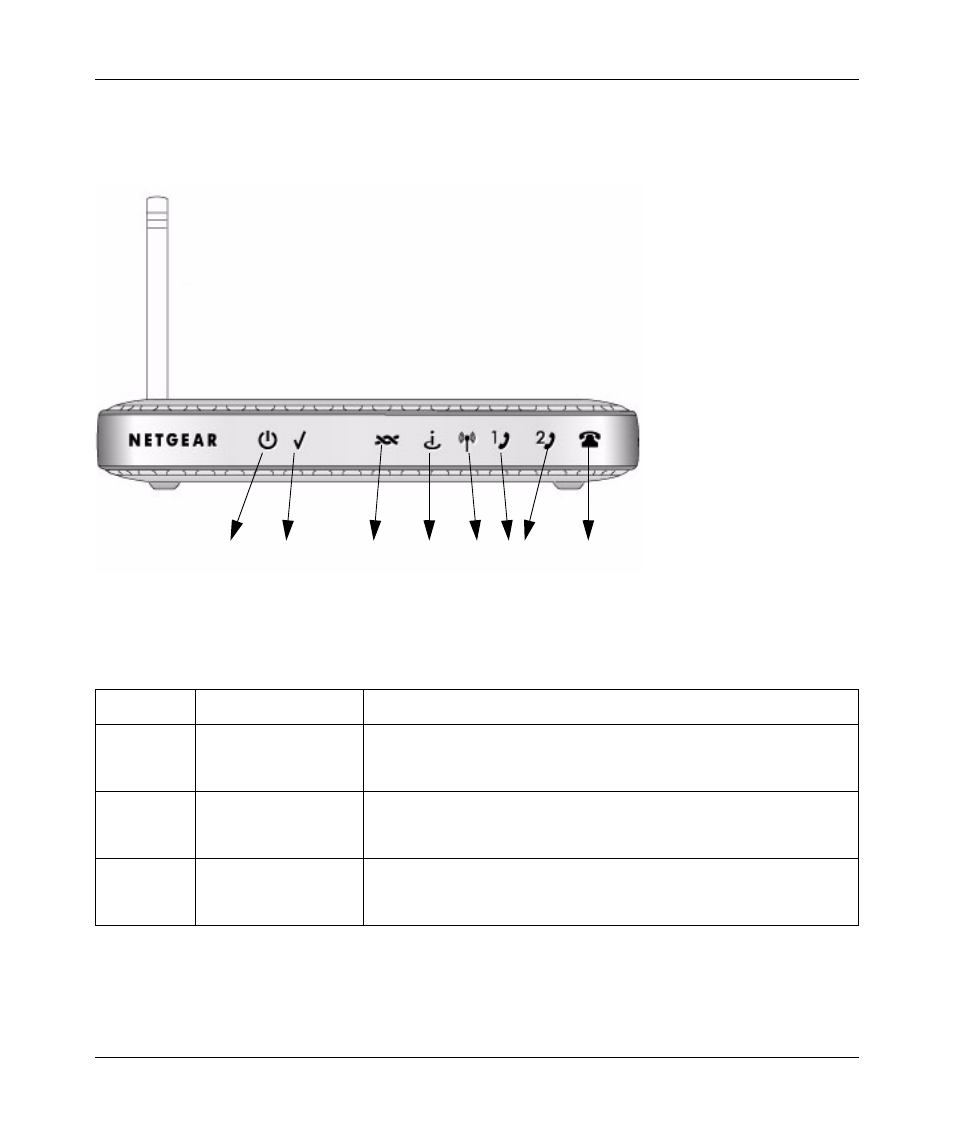

The front panel shown below contains status LEDs.
You can use the LEDs to verify various conditions. Table 2-1 describes each LED.
Figure 2-1
Table 2-1. LED Descriptions
Label Activity Description
1. Power
On (Green)
On (Red)
Off Power is supplied to the router.
Power-on Self-test failure or device malfunction.
Power is not supplied to the router.
2. Test
On (Amber)
Blink (Amber)
Off System is not ready or failed to start up.
The system is initializing.
The system is ready and running.
3. ADSL
On (Green)
Blink (Green)
Off ADSL is synchronized.
DSL is attempting to synchronize.
No link is detected on this port or modem is not powered on.
1 2 3 4 5 6 7
1 2 3 4 5
