POSITION Menu
E NGLISH - 35
Settings
You can switch the aspect ratio manually when needed.

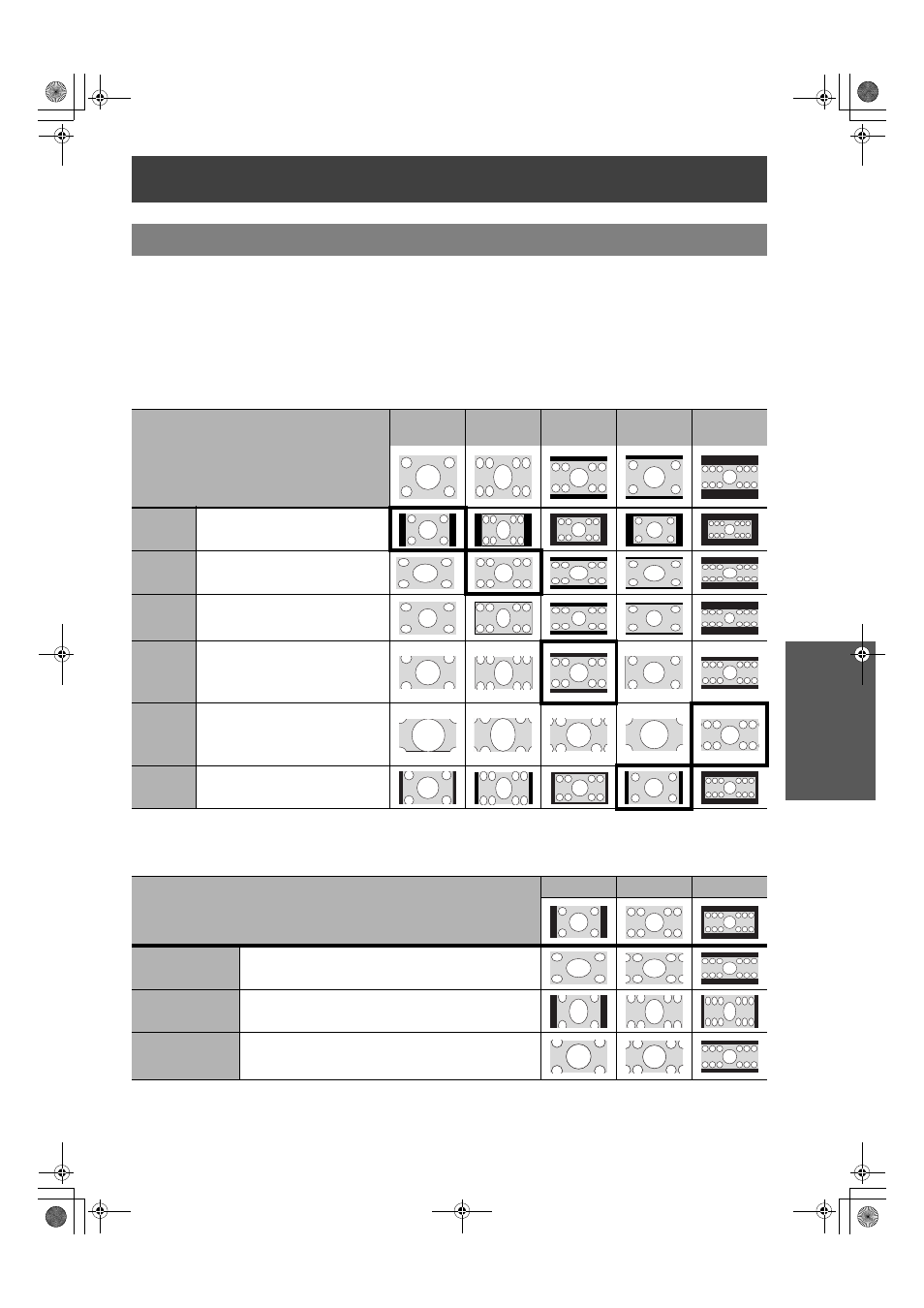

J Aspect ratio options and projection example
If you apply the aspect ratio options to the projected image, the result will be as follows. The result may differ
due to the input signals. See “Switching the aspect ratio” on page 23.
Q VIDEO/S-VIDEO/COMPONENT
Not available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p,
1 125 (1 080)/24p, 750 (720)/50p and 750 (720)/60p signals.
Q COMPONENT signals
Available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p, 1 125 (1 080)/24p,
750 (720)/50p and 750 (720)/60p signals
ASPECT
Original size
4:3
Squeeze
signal
16:9
Letter box
14:9
Letter Box
2.35:1
Cinescope
4:3 Projects at 4:3.
16:9 Adjusts horizontally to 16:9.
JUST
Adjusts horizontally to fit 16:9.
Closer to edge, more enlarged.
Not available with PC signals.
ZOOM/
ZOOM1
Adjusts to 16:9 size with
preserving original ratio. Escape
the menu mode and press FG to
adjust vertically.
ZOOM2
Adjusts to cinescope size not
including letter box. Escape the
menu mode and press FG to
adjust vertically.
14:9 Adjusts to 14:9.
Original Size
4:3 16:9 Cinescope
H - FIT Adjusts horizontally to 16:9.
V - FIT
Adjusts to 16:9 vertically. Escape and press F G to
scroll the image to adjust the edge vertically.
ZOOM
Adjusts to 16:9 size with preserving original ratio.
Escape the menu mode and press FG to adjust
vertically.
