2.2 Installation of the Hybrid IP-PBX
Installation Manual 51

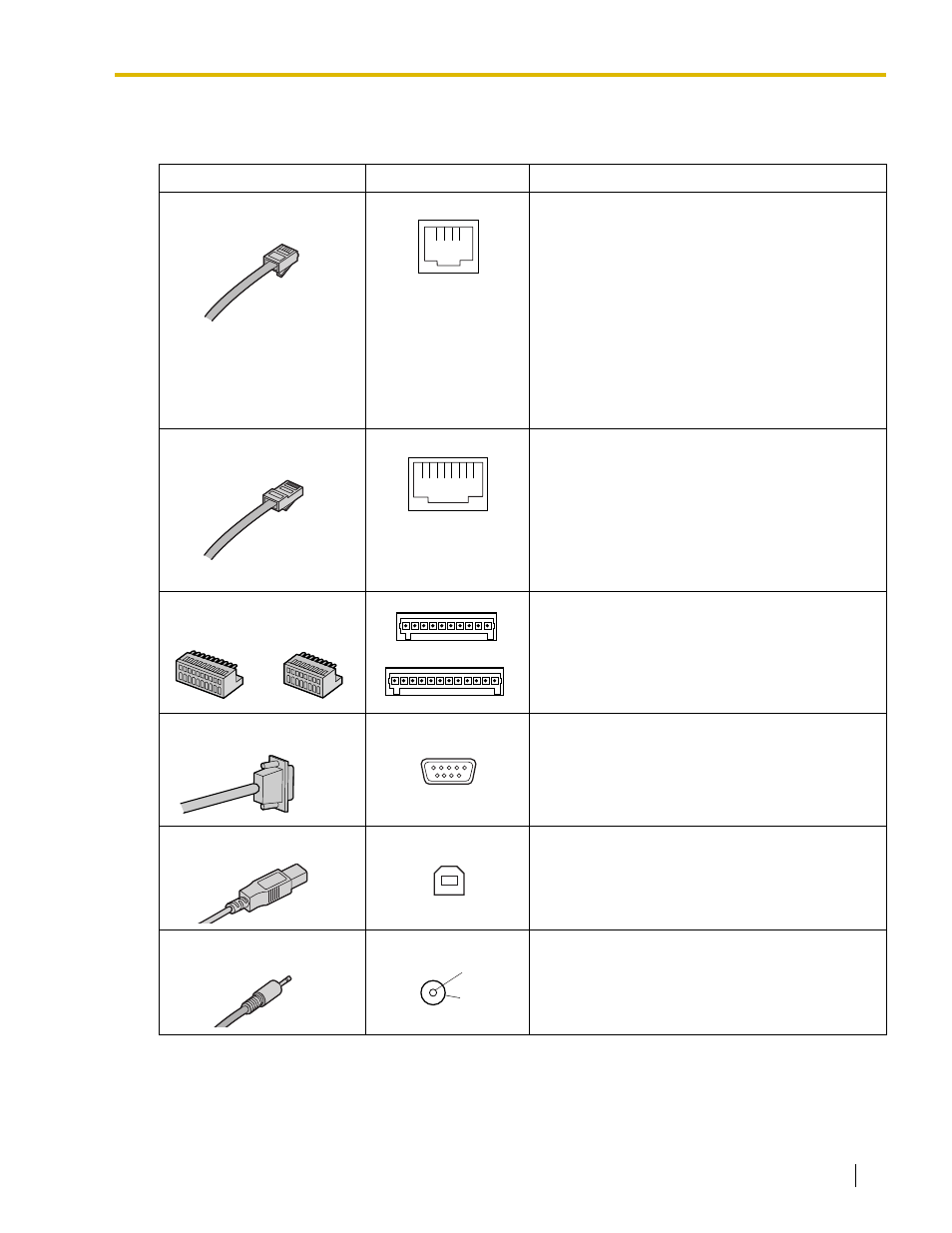

2.2.7 Types of Connectors
Connector Type Pin Number Used for
(Twisted pair cable)
• DPH4 (KX-TDA5161)
• HLC4 (KX-TDA5170)
• DLC4 (KX-TDA5171)
• DLC8 (KX-TDA5172)
• SLC4 (KX-TDA5173)
• SLC8 (KX-TDA5174)
• PLC4 (KX-TDA5175)
• PLC8 (KX-TDA5176)
• LCOT4 (KX-TDA5180)
• Super Hybrid Ports (Main Board)
(Twisted pair cable)
• IP-EXT4 (KX-TDA5470)
• IP-GW4 (KX-TDA5480)
• DPH4 (KX-TDA5161)
• Main Board
• Main Board
• Main Board (Pager port, MOH port)
RJ11
4 1
RJ45
1 8
10-pin
Terminal Block 8-pin
Terminal Block
8 1
10 1
RS-232C
6 9
1 5
USB
2
3
1
4
Mini Plug
+
-
