Panasonic HYBRID IP-PBX KX-TDA50 User Manual
Page 117
2.8 Connection of Doorphones, Door Openers, External Sensors, and External Relays
Installation Manual
117
2.

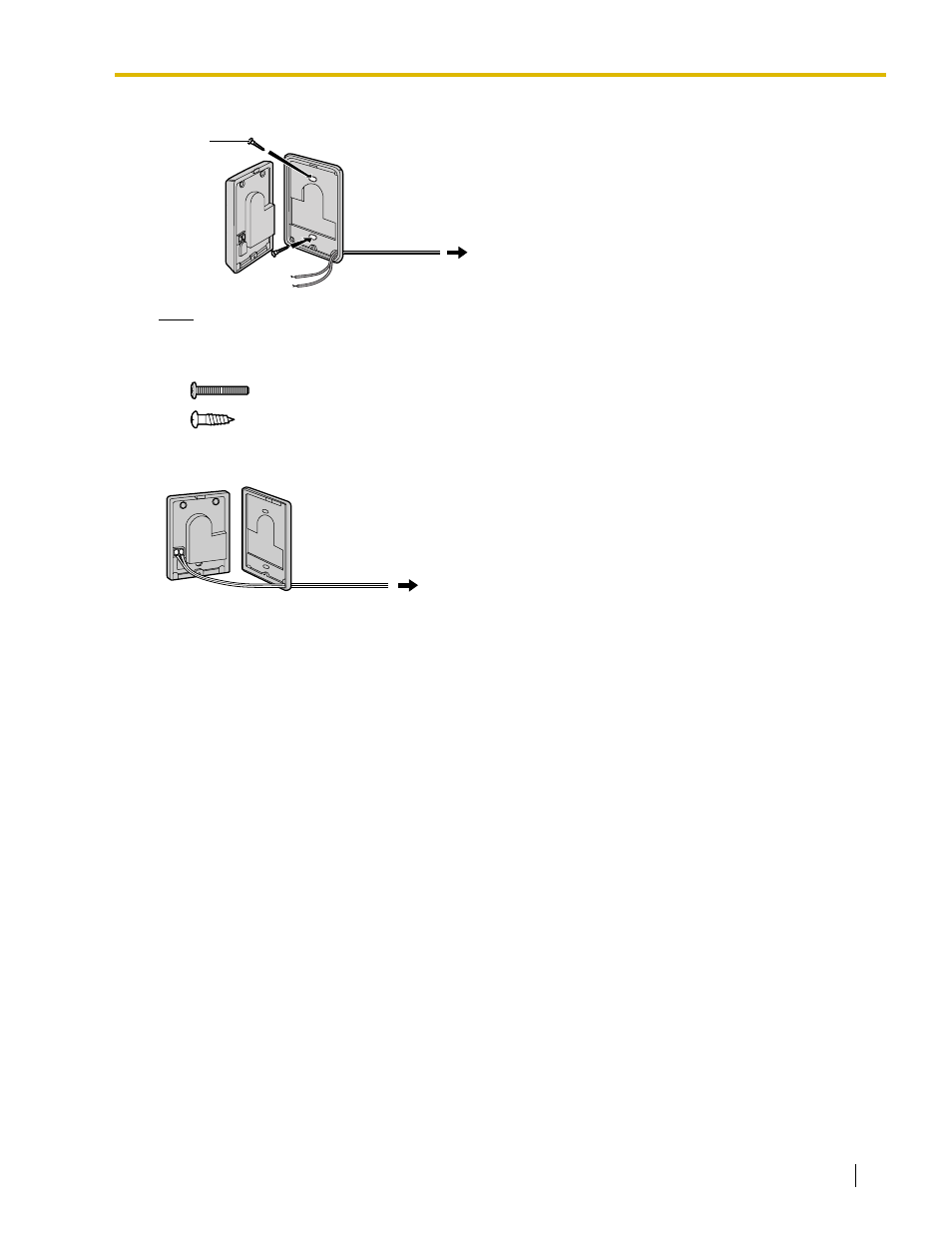

Pass the wires through the hole in the base cover, and attach the base cover to a wall using 2 screws.
Note
Two kinds of screws are included with KX-T30865. Please choose the appropriate kind for your wall
type.
3.
Connect the wires to the screws located in the front cover.
4.
Re-attach the 2 halves and re-insert the screw.
: when a doorphone plate has been fixed to the wall
: when you wish to install the doorphone directly to the wall
Screw
To terminal box
To terminal box
