Removing the optional service cards – Panasonic HYBRID IP-PBX KX-TDA50 User Manual
Page 50
2.2 Installation of the Hybrid IP-PBX
50
Installation Manual

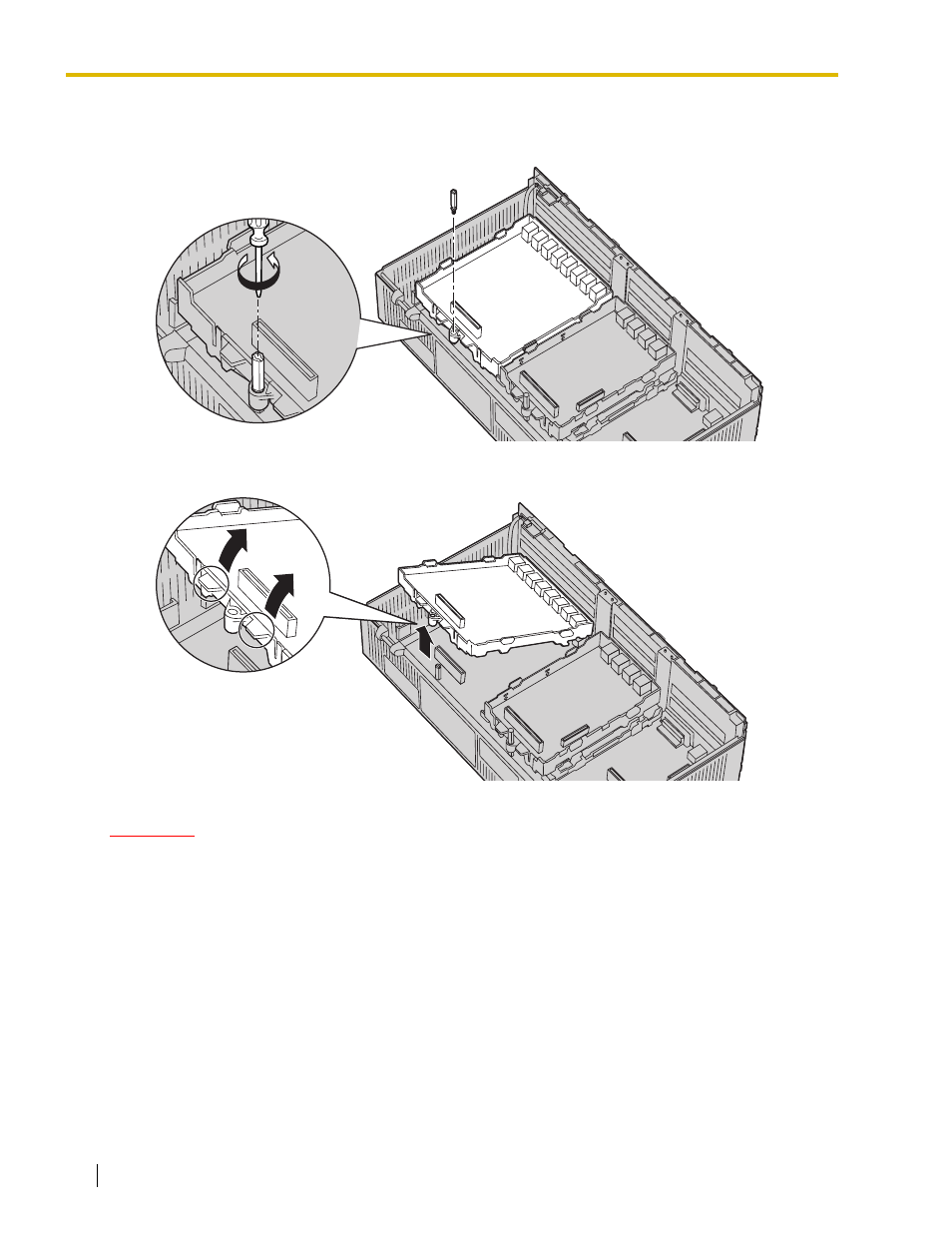

Removing the Optional Service Cards
1.
Loosen the extension bolt.
2.
Holding the protrusions of the card, pull the card in the direction of the arrows.
CAUTION
When removing the optional service cards, do not put pressure on any parts of the main board (e.g.,
tall capacitors). Doing so may result in damage to the Hybrid IP-PBX.
