2.9 Connection of Peripherals
120 Installation Manual
2.9 Connection of Peripherals
2.9.1 Connection of Peripherals
BGM/MOH
The Hybrid IP-PBX provides Background Music and Music on Hold. Only 1 external music source (e.g., a
user-supplied radio) can be connected to the Hybrid IP-PBX.
CAUTION
• Wiring should be done carefully to prevent undue force being exerted on the plug. Otherwise,
sound may only be heard intermittently.
• An External Music Jack is a SELV port and should only be connected to an approved SELV device.
Note
When the Hybrid IP-PBX and external music sources are not connected to the same ground, hum noise
may be induced into Background Music and Music on Hold.

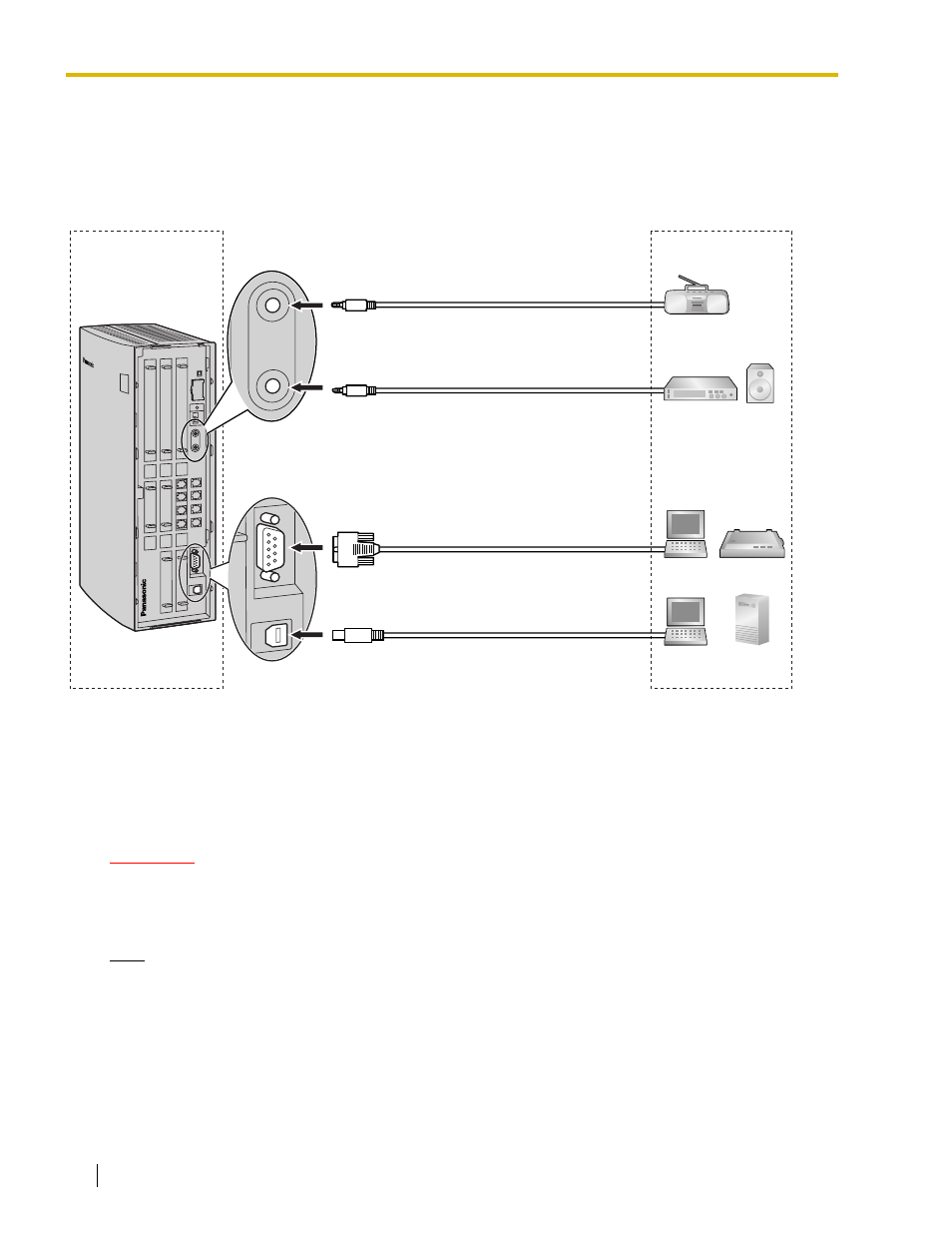

BGM/
Music on Hold
Pager:
Amplifier/Speaker
PC Printer
Cable Maximum Distance
26 AWG to 22 AWG: 10 m (32 ft)
CAT 5: 10 m (32 ft)
Cable Maximum Distance
26 AWG to 22 AWG: 10 m (32 ft)
CAT 5: 10 m (32 ft)
Maximum Distance
2 m (6 ft)
Maximum Distance
5 m (16 ft)
PC CTI Server
