2.2 Installation of the Hybrid IP-PBX

44

Installation Manual

4.

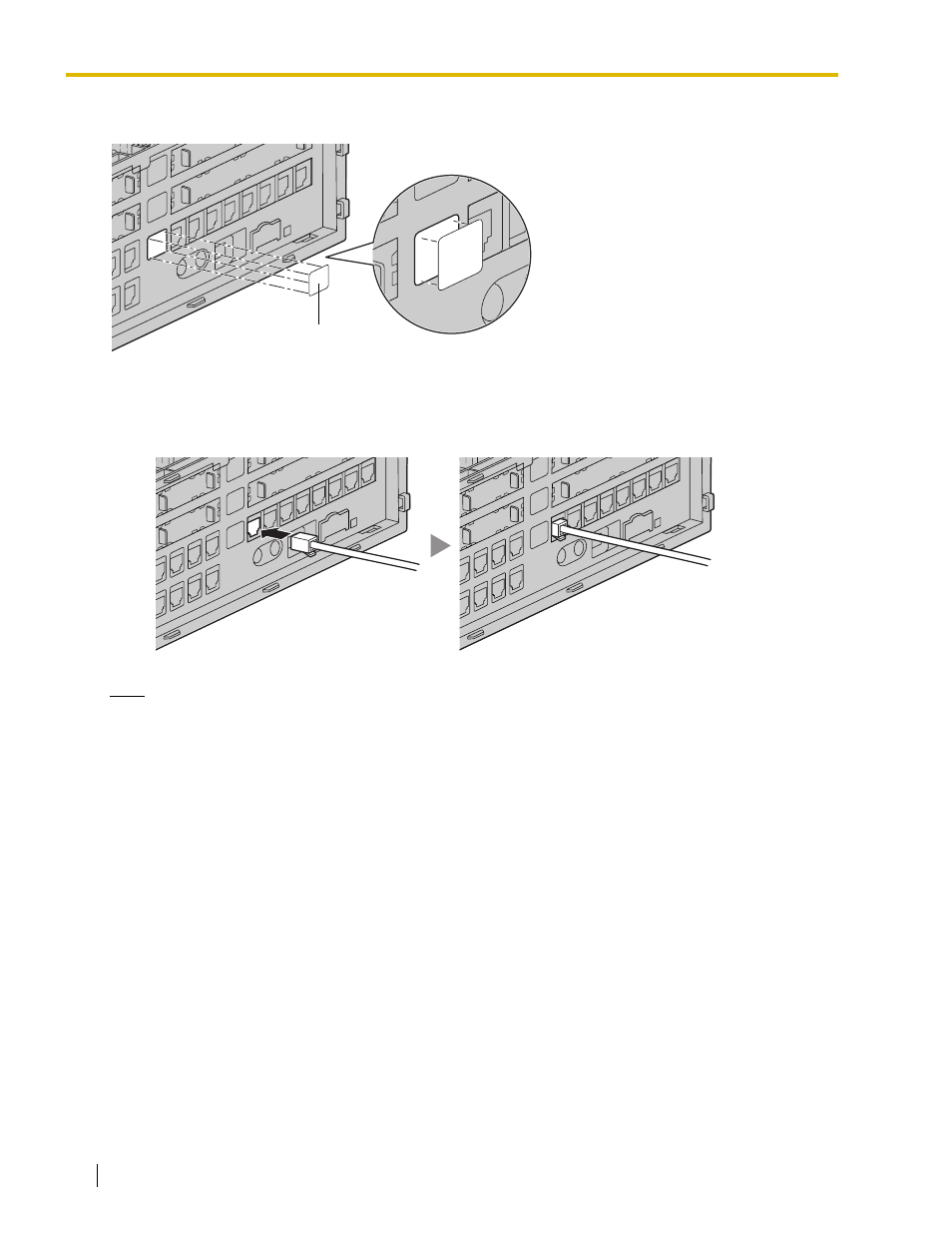

Stick an appropriate optional card label (included) to the left side of the corresponding card.

5.

Connect a cable to an appropriate port of the card.
For details about pin assignments, refer to the appropriate section in "2.3 Information about the CO Line
Cards" and "2.4 Information about the Extension Cards".

Note

Make sure to connect cables after installing the card in the Hybrid IP-PBX, not before.

Optional Card Label
