Page 59
9-36

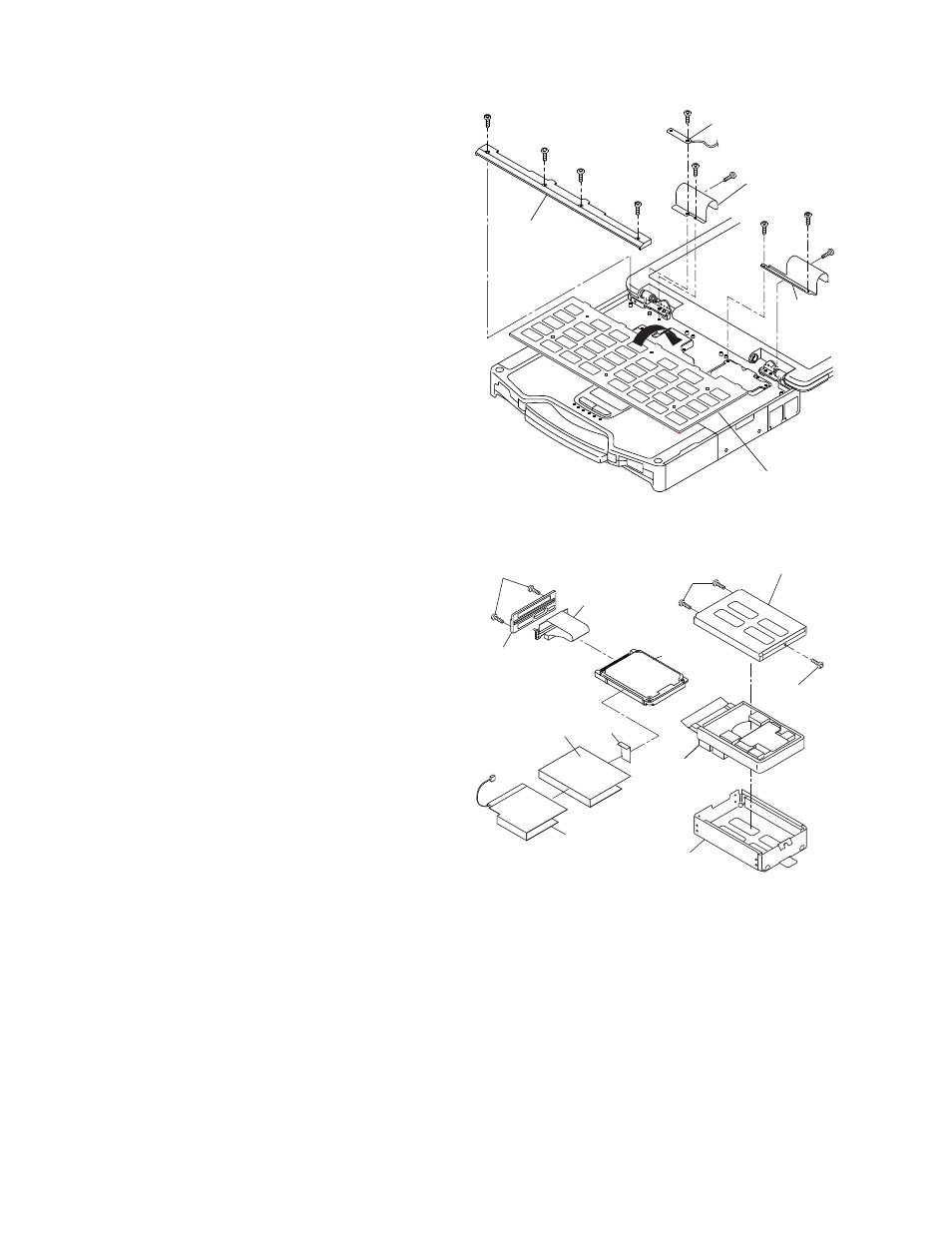

9.2.17. Setting the KB Cover, Hinge Cover L, Hinge Cover R and Keyboard
1. Insert the front hooks of the Keyboard to the Top Cabinet
in order, and set the Keyboard.
2. Fix the Hinge Cover L and R using the 3 Screws
(No1 to No3).
3. Fix the Hinge Cover L and R using the 2 Screws
(No1, No2)
4. Fix the Bluetooth PCB using the Screw
5. Fix the KB Cover using the 4 Screws
Note:
Tighten the Screws in the numbered order (No1 to No3).
Tighten the Screws in the numbered order (No1 to No2).
Tighten the Screws in the numbered order (No1 to No4).
Screws
Screws
9.2.18. Setting the HDD
1. Set the HDD FPC to HDD.
2. Attach the Heater Ins Sheet and Sheet to HDD.
3. Attach the Heater to HDD.
4. Attach the 6 HDD Forming MFYPC and the two HDD
Terminal Plate Upper to the HDD Damper Ass'y.
5. Attach the six HDD Forming MFYPC and the two HDD
Terminal Plate Upper to the HDD Damper Ass'y.
6. Set the HDD Damper Ass'y to HDD.
7. Attach the Side Cushion to the HDD L Case Ass'y.
8. Set the HDD U Case Ass'y and the HDD L Case Ass'y,
and set the two Tabs of the HDD L Case Ass'y.
9. Fix the HDD U Case Ass'y and the HDD L Case Ass'y
using the 4 Screws
Screws
Screws
KB Cover
Hinge Cover L
Hinge
Cover R
Keyboard
Bluetooth PCB
HDD FPC
Heater Ins Sheet
HDD
Sheet
SATA Guard
Heater
HDD U Case Ass’y
HDD L
Case Ass’y
HDD
Damper
Ass’y
