9-4

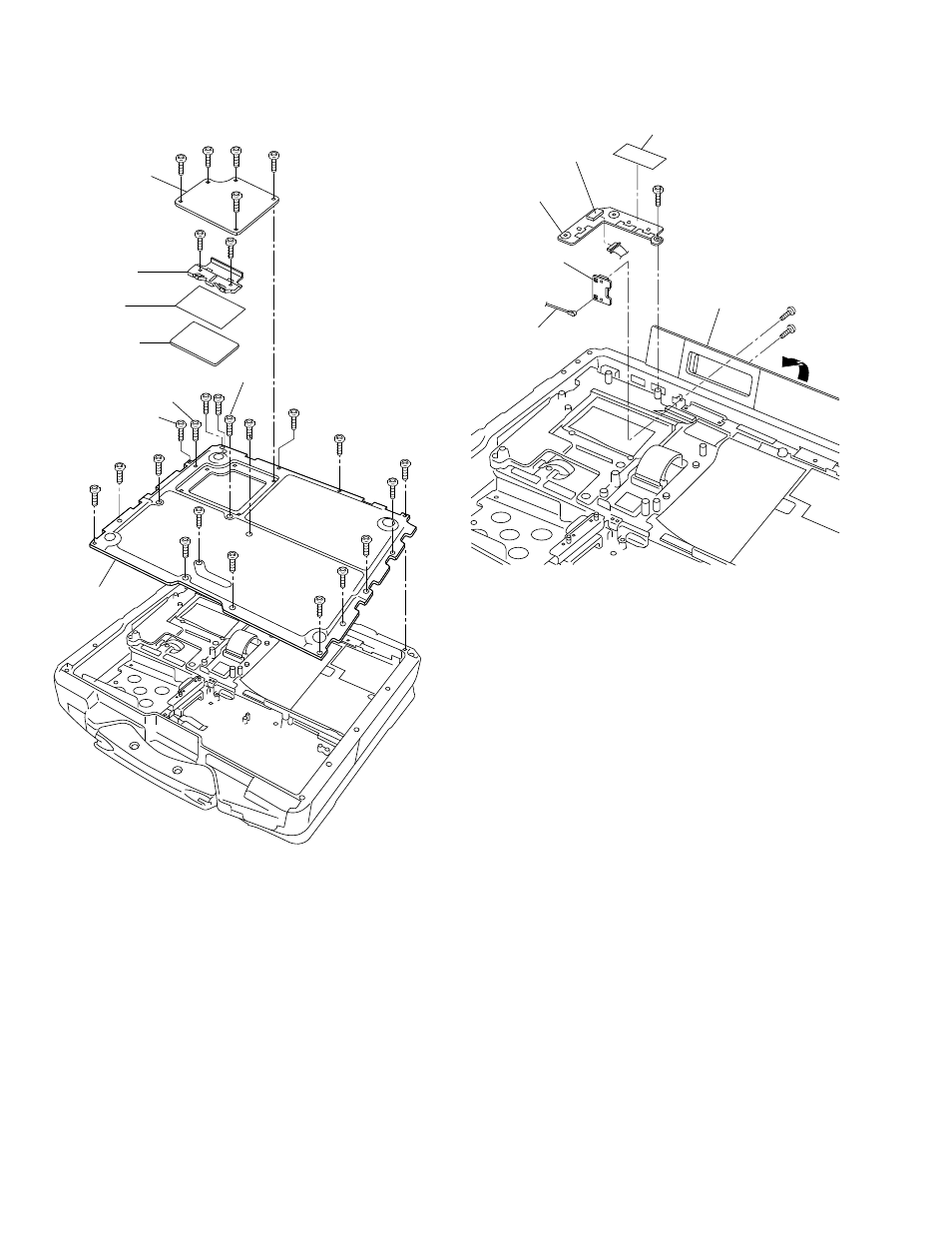

9.1.7. Removing the DIMM Cover and Bot-
tom Cover
1. Remove the 5 Screws.
2. Remove the DIMM Cover.
3. Remove the 2 Screws.
4. Remove the DIMM Stopper Base.
5. Remove the DIMM Heat Plate.
6. Remove the DIMM memory card.
7. Remove the 6 Screws.
8. Remove the 13 Screws.
9. Remove the Bottom Cover.
Screws : DRHM0002ZA
Screws : DRQT26+E4FKL
Screws : DRSB3+8FKL
9.1.8. Removing the USB PCB and
Antenna PCB
1. Remove the Screw.
2. Disconnect the Cable from the Connector. (CN100)
3. Remove the Tape.
4. Remove the USB PCB.
5. Open the Connector Cover.
6. Remove the 2 Screws.
7. Remove the Black Cable and remove the Antenna PCB.
Screws : DRQT2+G6FKL
Screws : DRQT26+E4FKL
Bottom Cover
DIMM Memory
Card
DIMM Stopper
Base
DIMM Heat
Plate
DIMM Cover
USB PCB
Connector
(CN100)
Antenna PCB
Connector Cover
Antenna Cable
(Black)
Tape
