Connector Type

The Panasonic DCIS SCSI interface is based on fast SCSI-2 ANSI standard.

Specifications

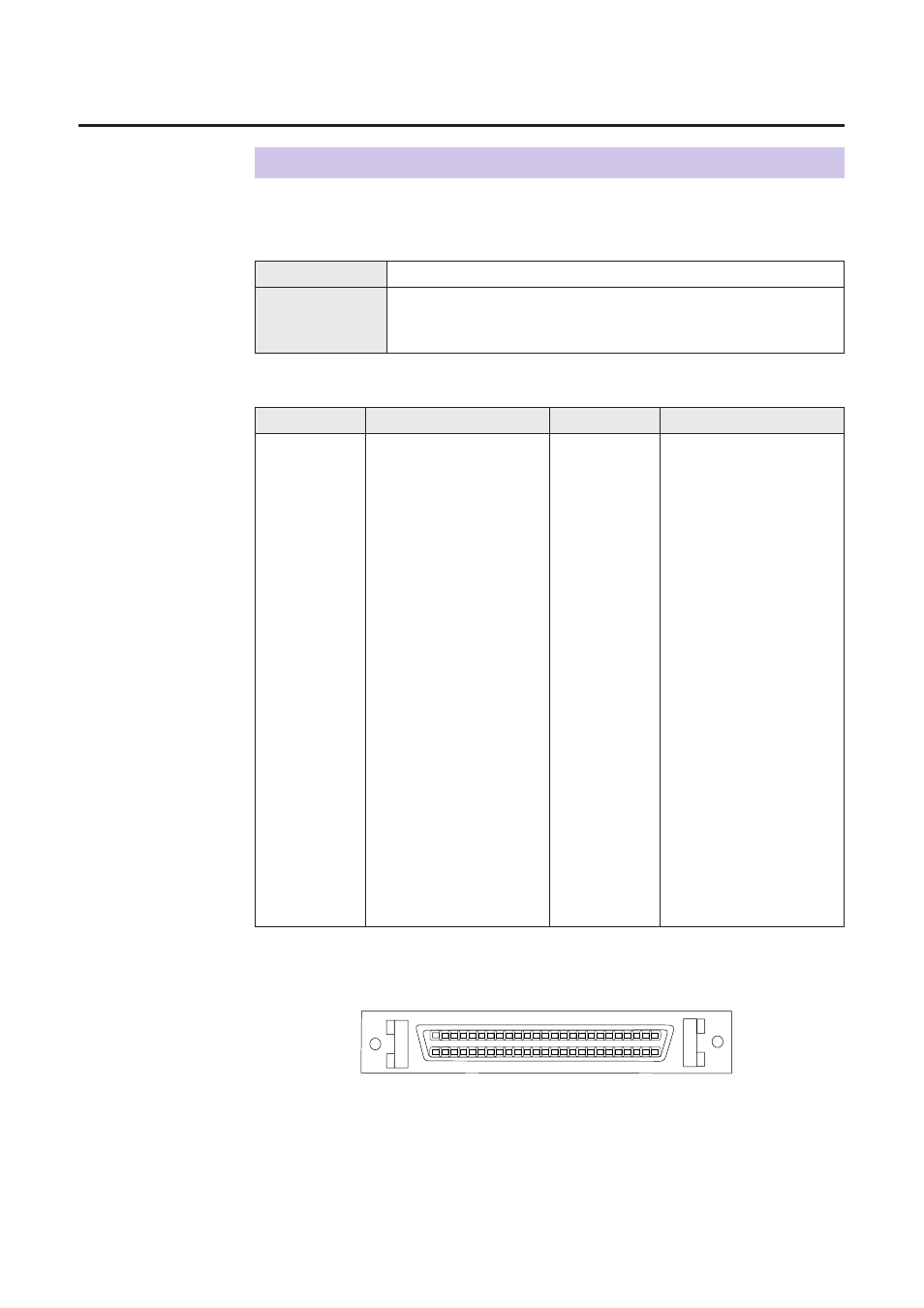

Pin Configuration

SCSI Interface Connector (Printer and Scanner side)

50-Pin Half Pitch Pin-type Connector

Use a shielded cable for SCSI-2 (FAST SCSI).
The total length of the SCSI chain must not exceed 3 m (9.8 ft.)
to ensure reliable operation.

Signal

Cable

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

(RESERVED)

(OPEN)

(RESERVED)

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

-DB(0)
-DB(1)
-DB(2)
-DB(3)
-DB(4)
-DB(5)
-DB(6)
-DB(7)

-DB(P)

GND
GND

(RESERVED)

TERMPWR

(RESERVED)

GND

-ATN

GND

-BSY

-ACK

-RST

-MSG

-SEL

-C/D

-REQ

-I/O

Appendix

SCSI Interface

Signal Pin

1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

Signal

Signal Pin

26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
