18
Select one of the following ways to connect the player to your TV.
If your TV has a video input,
and it is available for use, this
is the easiest way to hook up
the player.

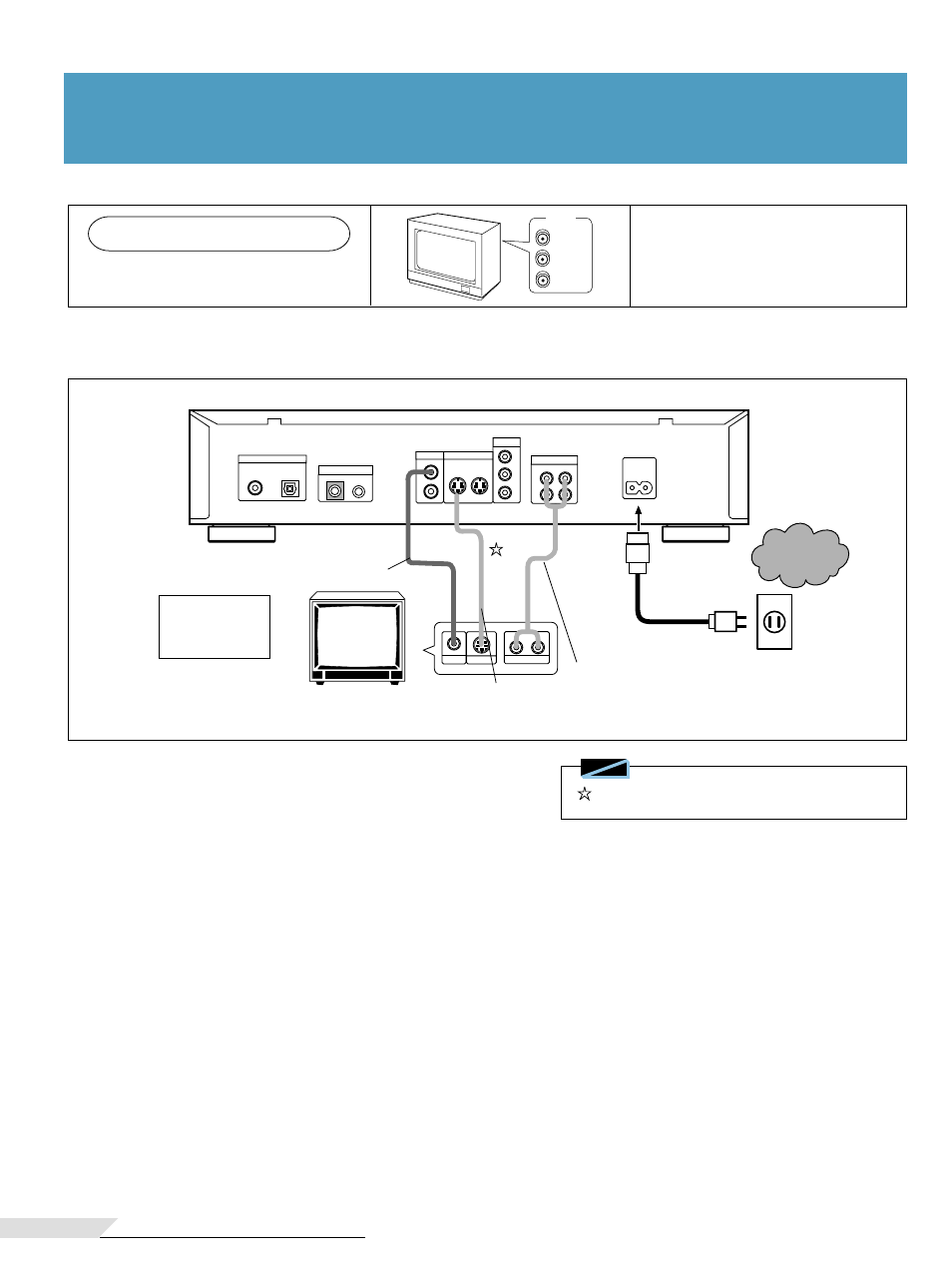

Connection example 4.
To a TV with video input
AUDIO
VIDEO
INPUT
L
R
• Connect plugs to the terminals that match the plug’s color (white, red, yellow).
• Clearer picture reproduction is possible by connecting the TV’s S-Video input terminal to this unit’s S-VIDEO OUT jack.
For stereo TV
with S-VIDEO
input
Finally, connect
to a home wall
outlet.
AUDIO IN
R L
VIDEO IN S-VIDEO IN
OPT.
DIGITAL OUT
AC IN
COMPONENT VIDEO OUT
Y
C B
C R
1
2
1 2
VIDEO OUT S-VIDEO OUT
CONTROL
IN OUT 1
2
AUDIO OUT
R L
Connecting the Player
Connecting the Player
S-Video cable
Accessory audio cord
Accessory video cord
Cables can be found at your local audio/video dealer.
Note
