14
When making connection, to this unit or when changing connections, always be sure to check that the
unit in standby by pressing the STANDBY/ON switch, and unplug the power cord from the power
outlet.
Please also refer to the operating instructions for the components that you are connecting to (AV amplifier,
TV etc.).

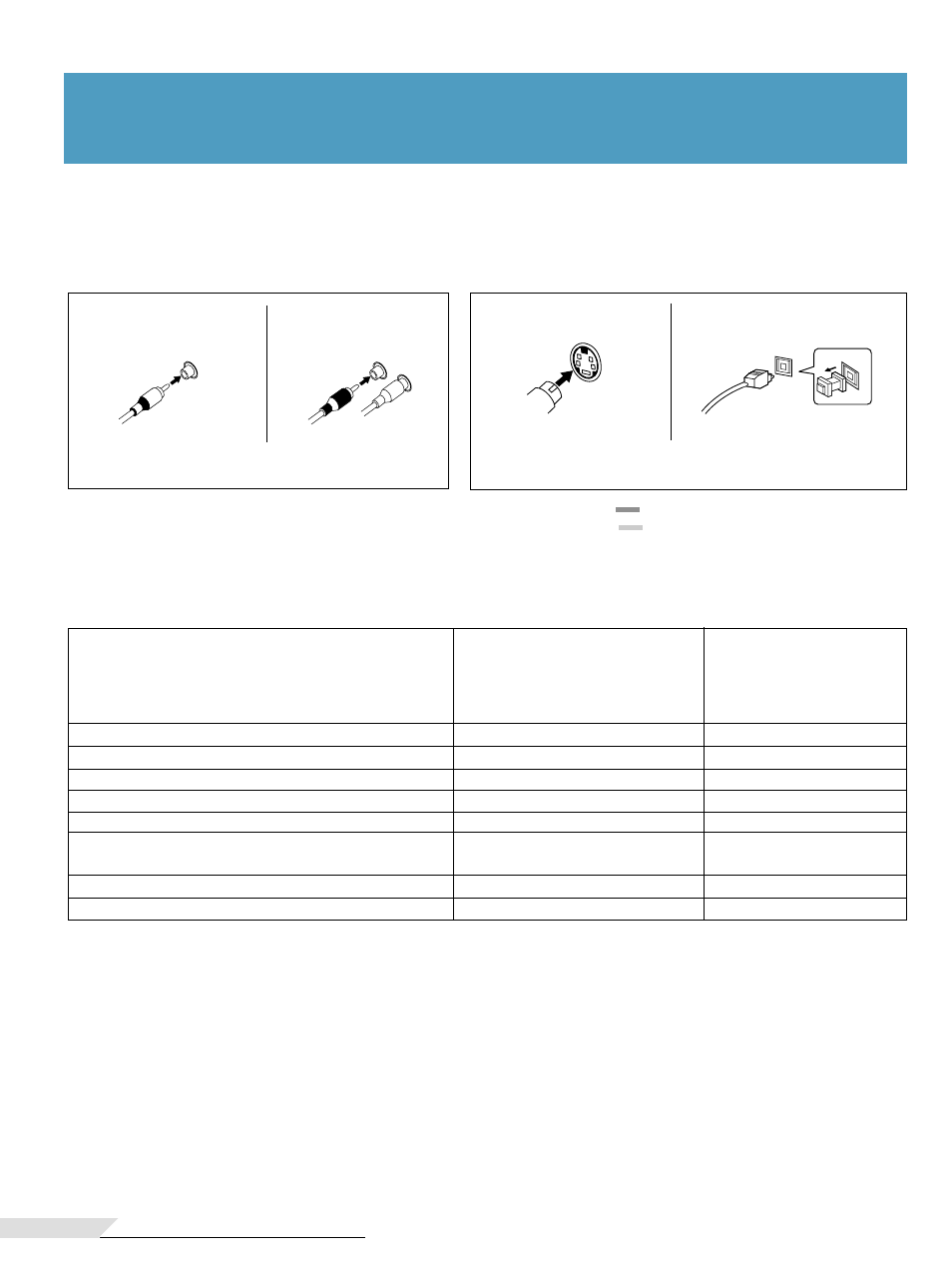

Connecting the Player
S-Video out (S-Video cable)
Video out (Video cord)
Coaxial digital out
(Coaxial cable)
Audio out (Audio cord)
Connecting the Player
•
Connect the TV with S-VIDEO terminal to the S VIDEO OUT
terminal of this player.
•
Connect plugs to the terminals that match the plug’s
color (white, red, yellow, and black).
Optical digital out
(Optical fiber cable)
•
Connection cords that we recommend be connected are indicated in grey tone ( ).
If you cannot use the connection cords we recommend, use the light grey tone ( ) cords.
•
As DVDs have various audio formats depending on the disc, after making connections, use the menu on this unit to set the
output to the setting that matches the disc. (Page 35)
•
Connection method will differ depending on the components being connected.
Select the component that you are connecting from the list below.
Component being connected to this unit
AV amplifier with built-in Dolby Digital decoder
AV amplifier with built-in DTS decoder
AV amplifier with built-in MPEG decoder
AV amplifier with built-in D/A convertor
Amplifier other than those above or stereo amplifier
Digital recording component such as MD or CD-R etc.
TV with video input
TV with component input
Connection example reference
Connection example 1 (Page 15)
Connection example 1 (Page 15)
Connection example 1 (Page 15)
Connection example 2 (Page 16)
Connection example 2 (Page 16)
Connection example 3 (Page 17)
Connection example 4 (Page 18)
Connection example 5 (Page 19)
Output setup on this unit
(This list is for changing the
setting of initial setup. For
details refer to page 35.)
Initial setting is left as is
Set DTS ON
MPEG
DOLBY DIGITAL
= PCM
Initial setting is left as is
DOLBY DIGITAL
= PCM,
MPEG
= PCM
Initial setting is left as is
Initial setting is left as is
