16
AUDIO IN
R L
Finally, connect
to a home wall
outlet.
CONTROL
OUT
1 2
DIGITAL IN
VIDEO IN S- VIDEO IN
OPT.
DIGITAL OUT
AC IN
COMPONENT
VIDEO OUT
Y
C B
C R
1
2
1 2
VIDEO OUT S-VIDEO OUT
CONTROL
IN OUT 1
2
AUDIO OUT
R L
Connecting the Player

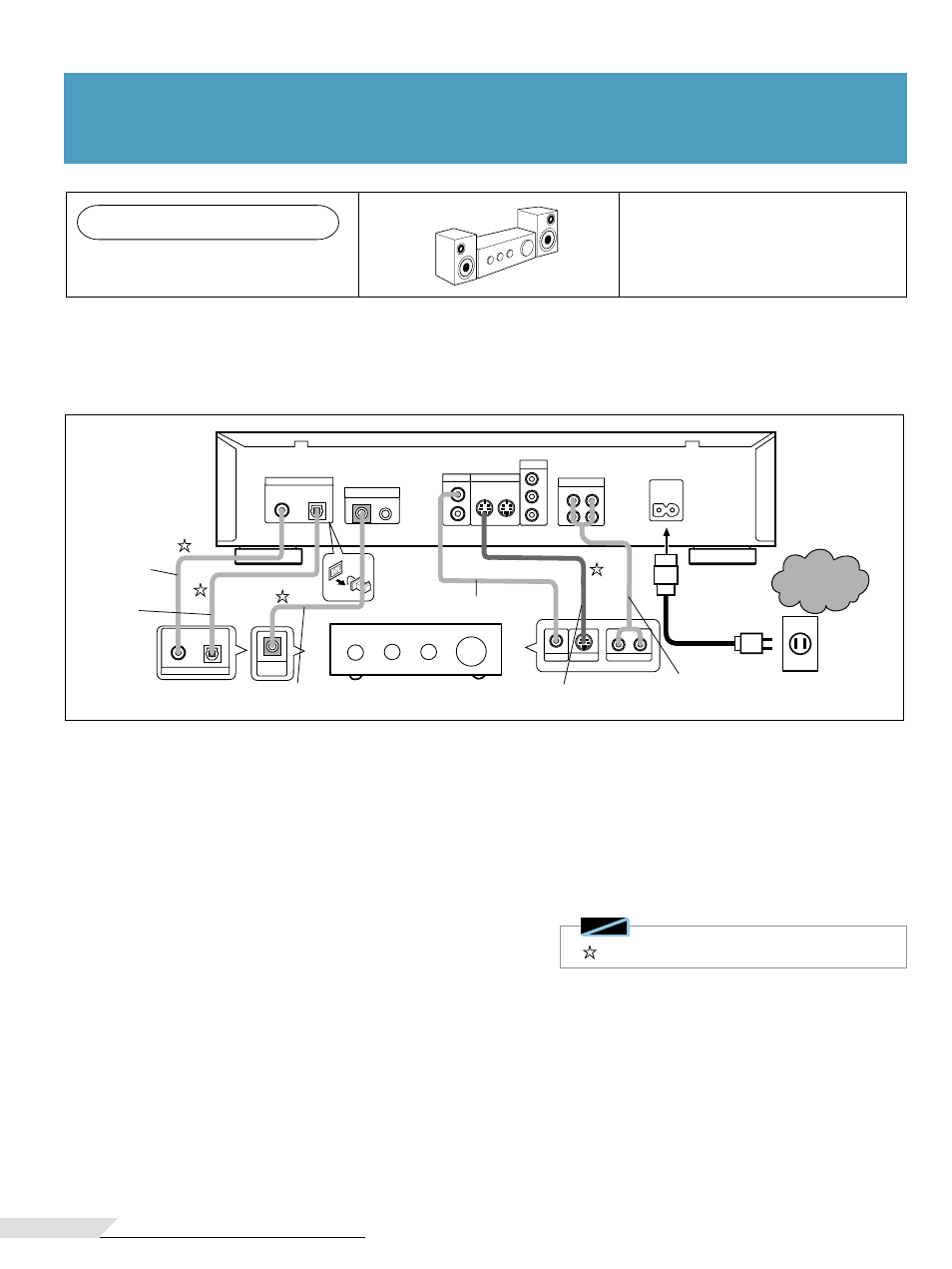

Connection example 2.
AV amplifier without built-in
decoder
By connecting to a regular AV
amplifier or stereo amplifier,
you can enjoy playback with
improved sound quality.
• Connect this player’s audio output jacks to an amp’s CD, LD, AUX or other audio input jacks. (Do not connect to PHONO jacks.)
• For video output, connect this unit’s video output to the amplifier’s video input. Either the S-VIDEO OUT jack or VIDEO OUT jack
can be used for connection. Digital output connection can be made using either the COAXIAL DIGITAL output or the OPTICAL
DIGITAL output.
• Surround sound can be enjoyed with amplifiers that have a built-in Dolby Pro Logic decorder.
• When connecting to a component bearing the Pioneer
Î mark:
If you use a commercially available cord with a mini plug (no resistance) to connect this player’s CONTROL IN jack to the
CONTROL OUT jack of another component bearing the
Î mark, you can control the player as though it were a component in a
system (system control).
• If you connect for system control, you cannot operate the player directly by pointing the remote control at it and pressing
buttons. Point the remote control unit at the component (AV amplifier etc..) connected to the CONTROL OUT jack for operation.
• When controlling as a system, be sure to make connection to the amplifier using an audio cord or a video cord, even
when using only digital components.
• For more details, refer to the connected component’s operating instructions.
AV amplifier
Connecting the Player
Cables can be found at your local audio/video dealer.
Note
S-Video cable
Optical fiber
cable
Cord with a mini plug
(no resistance, 3.5ø)
Accessory video cord
Accessory audio cord
Coaxial cable
