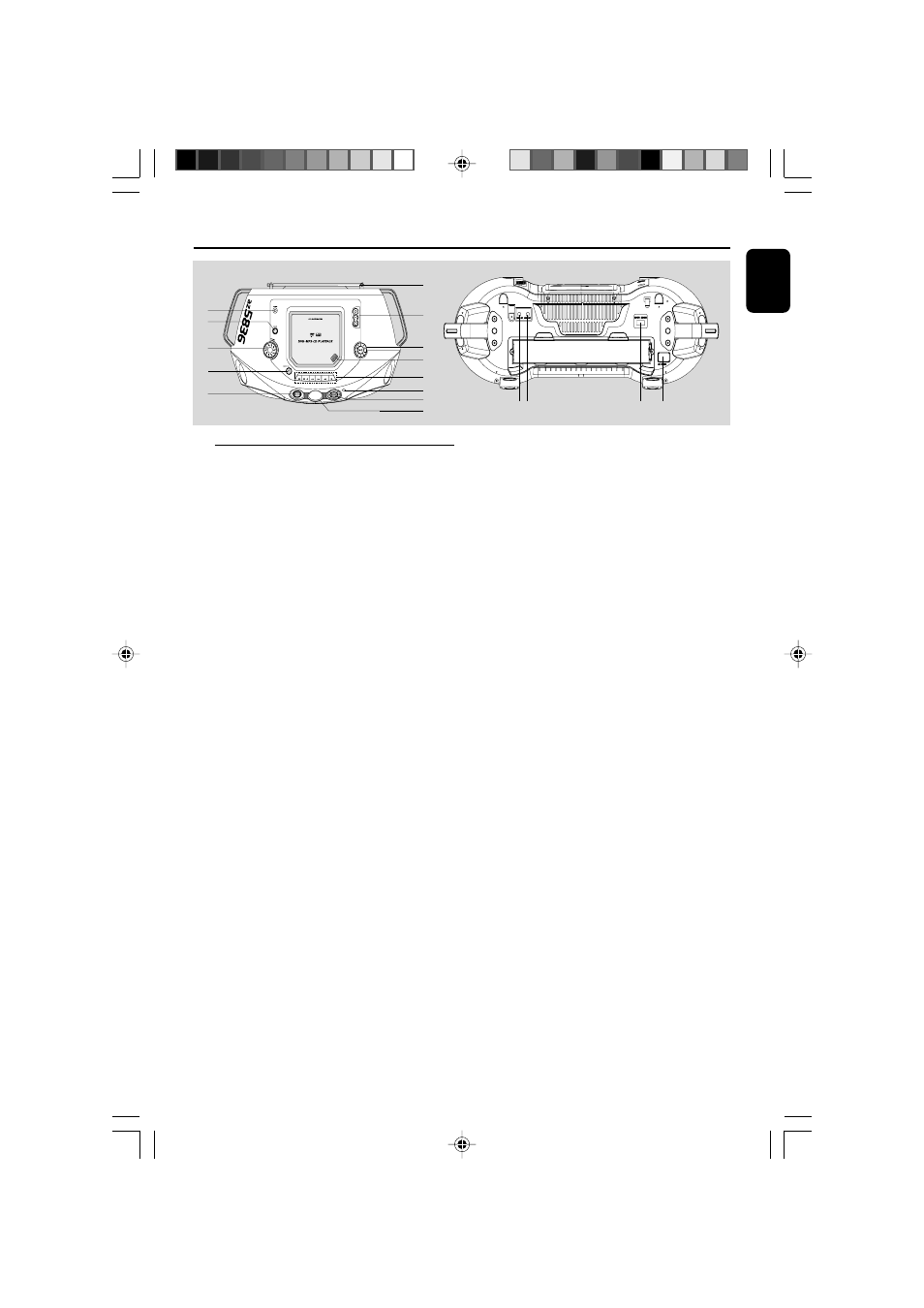

Functional Overview

Controls on the system

1 AUDIO IN
- connects an external audio source

2 SOURCE
- to select sound source for functions:

DISC, TUNER, TAPE, USB, AUX

3 VOLUME

to adjust master volume level

4 STANDBY-ON y

switches the set on/off

5 USB port

connects an external USB mass storage device

6 Telescopic aerial
-

to improve FM reception

7 MIC
-

jack to connect microphones
VOL

-

adjust the mixing level for karaoke

8 SEARCH

S

/

T

in disc mode, press to skip to the previous/next
chapter/track.

in disc mode, press and hold to fast reverse/
forward the disc

in JPEG disc mode, press and hold to reduce or
enlarge picture.

in TUNER mode, press to manually search for
radio stations.
PRESET +/-

press to select a preset radio station.

2;

to start or interrupt disc/USB playback

to resume playback from last stop point
7

-

to stop playback or to clear a programme

9 OPEN•CLOSE
-

to open the disc cover

0 Cassette recorder keys

;

-

to pause playback or recording
7 / 0

-

to stop the tape

-

to open the cassette compartment
1 / ¡

-

to fast winds/rewinds tape
2

-

to start playback

0

-

to start recording

! iR

point the remote control towards this sensor

@ MAX SOUND

actives or deactivates the optimal mix of various
sound features
PROG

in TUNER mode, to program preset radio
stations.

VCD/CD/MP3-CD: enters the program menu.
EQUALIZER

selects different types of preset sound equalizer
settings (ROCK, CLASSIC, POPS, JAZZ).
MODE

to select repeat/shuffle functions in disc/USB
mode

# LCD DISPLAY

to display disc information during disc playback

to select the slide show mode in playing picture
disc mode

$ Video out
-

connects video input jack on the TV

% Audio out
-

connects audio input jack on the TV

^ Voltage selector
-

adjusts to match the local voltage
110-127/220-230V before plugging in the set

& AC MAINS~
-

Socket for power cord

$
