Page 10

10
English
Connection

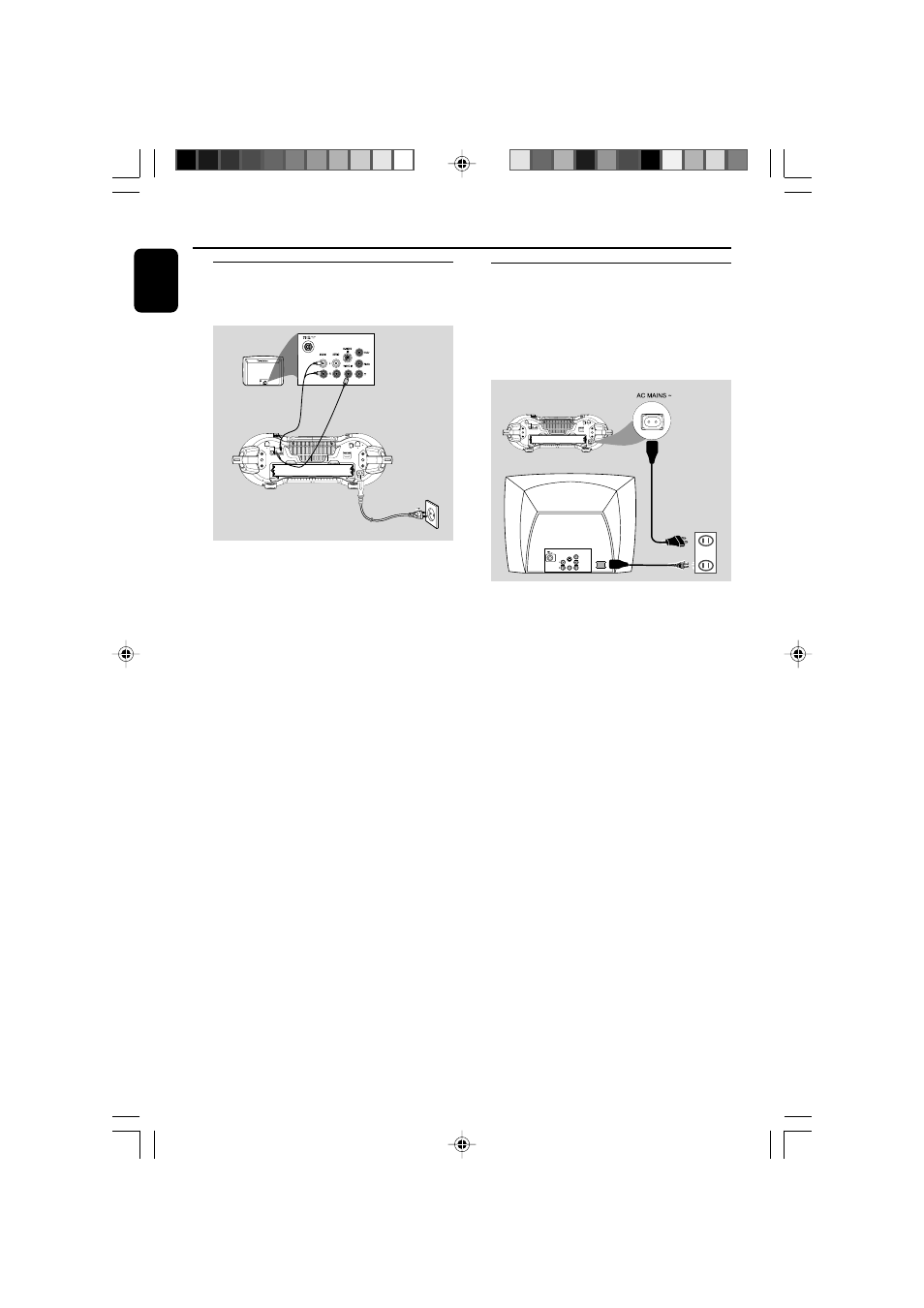

Connecting a TV set
Note:
– Connect the system directly to the TV set.
●
Use the supplied composite video cable (yellow)
to connect the system’s VIDEO OUT jack to
the video input jack (or labeled as A/V In, Video
In, Composite or Baseband) on the TV set.
●
To listen to disc playback of the system through
your TV, use the supplied audio cables to
connect AUDIO OUT jack (black) to the
corresponding AUDIO IN jacks ( red/white) on
the TV set.
Connecting the power cord
IMPORTANT!
– If your system is equipped with a
Voltage Selector, set the VOLTAGE
SELECTOR (located on the back of the
set) to match the local power line.
●
After everything is connected properly, plug in
the AC power cord to the power socket.
The type plate is located on the bottom
of the set.
Notes:
– Never make or change any connection with the
power on.
~ AC MAINS
AUDIO
OUT
Pr/Cr
Pb/Cb
Y
S-VIDEO
IN
VIDEO IN
COMPONENT
VIDEO IN
OUT
IN
AZ5836_58_P01-31_Eng
2008.3.13, 10:29
10
