Install SpectraLink 8000 Telephony Gateway
Install IPC cables
To connect IPC cables on four or fewer SpectraLink 8000 Telephony
Gateways (without a SpectraLink 8000 SVP Server):
1. Mount the SpectraLink 8000 Telephony Gateways.
2. Connect the IPC cable from the
IPC OUT Port of the first unit to the
IPC IN Port of the adjacent unit.
3. Repeat step 2 until all units are connected.

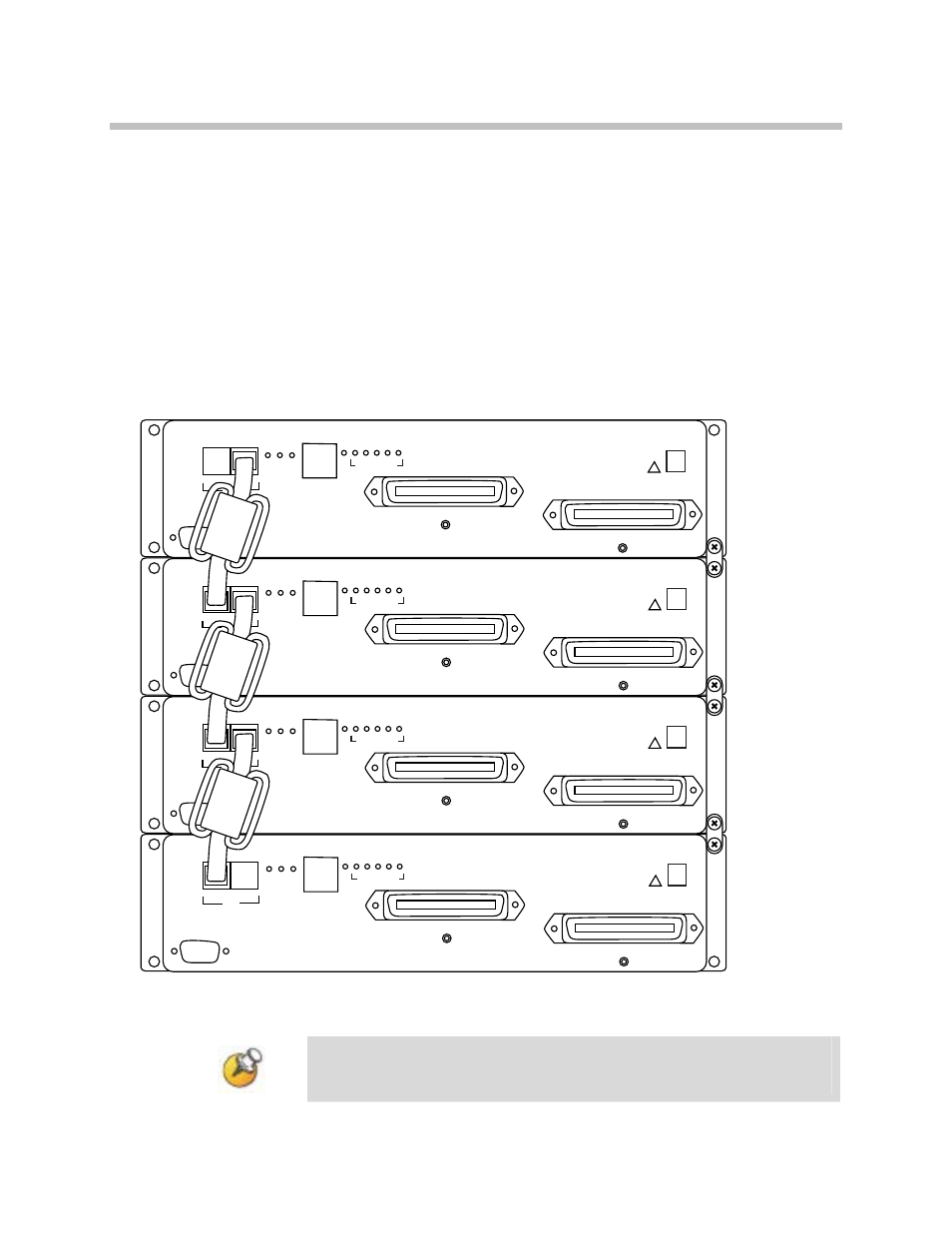

The following illustration shows a horizontally mounted system, with
SpectraLink 8000 Telephony Gateway number one at the bottom.
PWR
CONN B
CONN A
E
R
R
O
R
1 2 3 4 5
STATUS !
RS-232
L
N
K
O
K
A
C
T C
O
L
PWR
CONN B
CONN A
E
R
R
O
R
1 2 3 4 5
STATUS !
RS-232
L
N
K
O
K
A
C
T C
O
L
PWR
CONN B
CONN A
E
R
R
O
R
1 2 3 4 5
STATUS !
RS-232
L
N
K
O
K
A
C
T C
O
L
PWR
CONN B
CONN A
E
R
R
O
R
1 2 3 4 5
STATUS !
RS-232
L
N
K
O
K
A
C
T C
O
L
IPC NETWORK
OUT IN
IPC NETWORK
OUT IN
IPC NETWORK
OUT IN
IPC NETWORK
OUT IN
Maximum
spacing
between units
1/2 inch
Four-Unit SpectraLink 8000 Telephony Gateway
(Rack mount or horizontal wall mount formation, unit one is at the bottom)
No IPC cable is connected to the IN port of the first unit or to the
OUT
port of the last unit.
