Chapter 5 Preparation
5
67

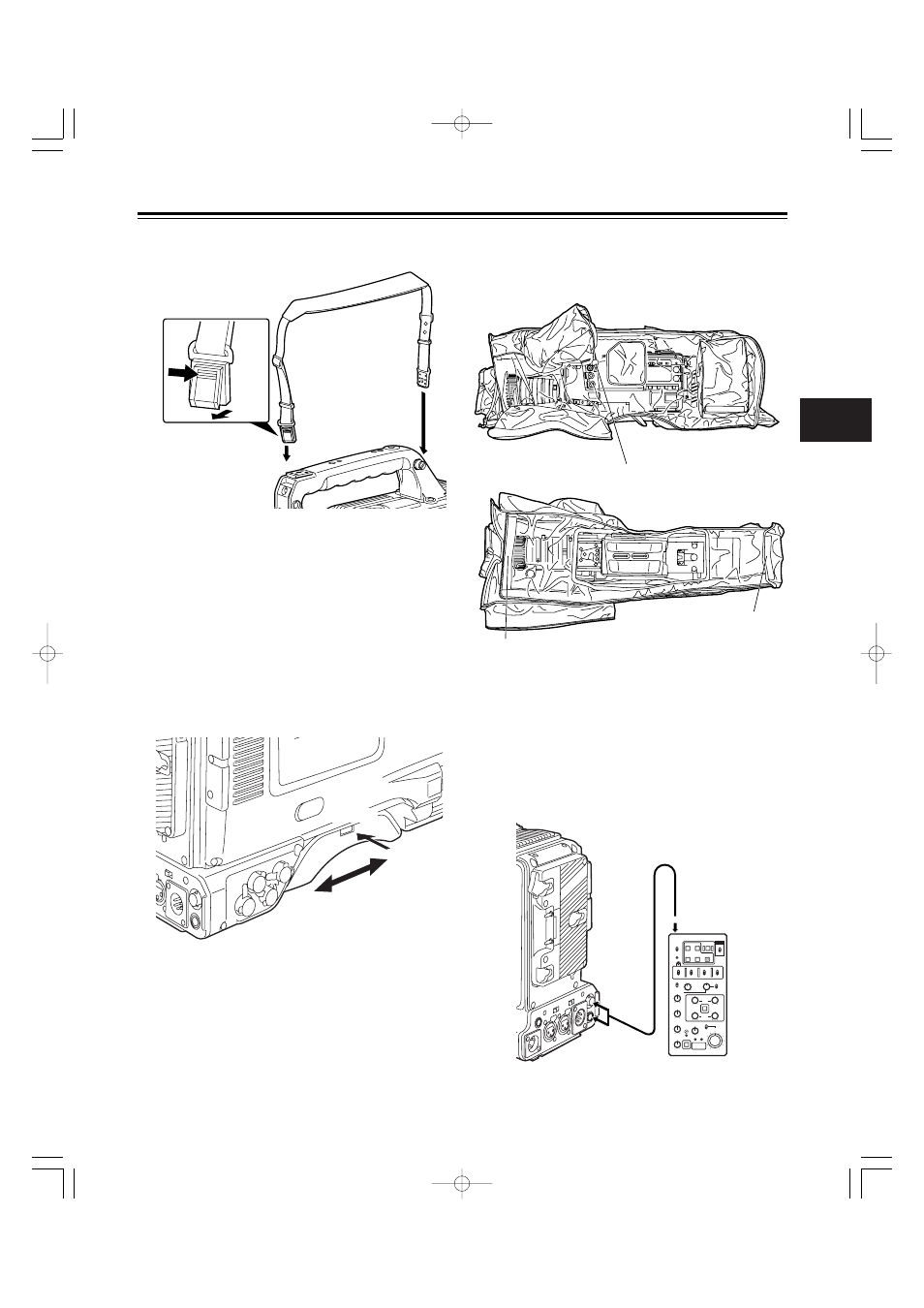

Slide lever
Shoulder belt
The tab opens
when it is
pressed.
To disengage the shoulder belt, press the tabs.
Check that the shoulder belt is attached securely.
5-6 Adjusting the position of the
shoulder pad
The shoulder pad can be moved while the slide lever is held
down. Its position can be adjusted in 3 mm steps (up to max.
of 10 steps or 30 mm) in either the front or back direction.
While holding down the slide lever, move the shoulder pad
toward the front or back to the optimum shooting position.
5-5 Attaching the shoulder belt 5-7 Attaching the rain cover
Example showing use of the SHAN-RC700 rain
cover
Tighten the cord.
Close using the fastener.
Close using the fastener.
5-8 Connecting the extension control
unit (AJ-EC3E)
By connecting the AJ-EC3E extension control unit (optional
accessory), some of the functions can be operated by remote
control.
When the AJ-EC3E is connected and the POWER switches
on the unit and AJ-EC3E are set to ON, the unit is
automatically set to the remote control mode.
6 5
∫ 1
ECU connector
AJ-EC3E
Dedicated cable
