Chapter 2 Parts and their functions
18
CTL
RF SERVO HUMID SLACK
h
TAPE E B
Y minM s frm
13 24
0
D
VTCG TIME DATE P-iREC
SLAVE HOLD GPS
BATT E F
OVER OVER
10
OO
40
-dB
30
18

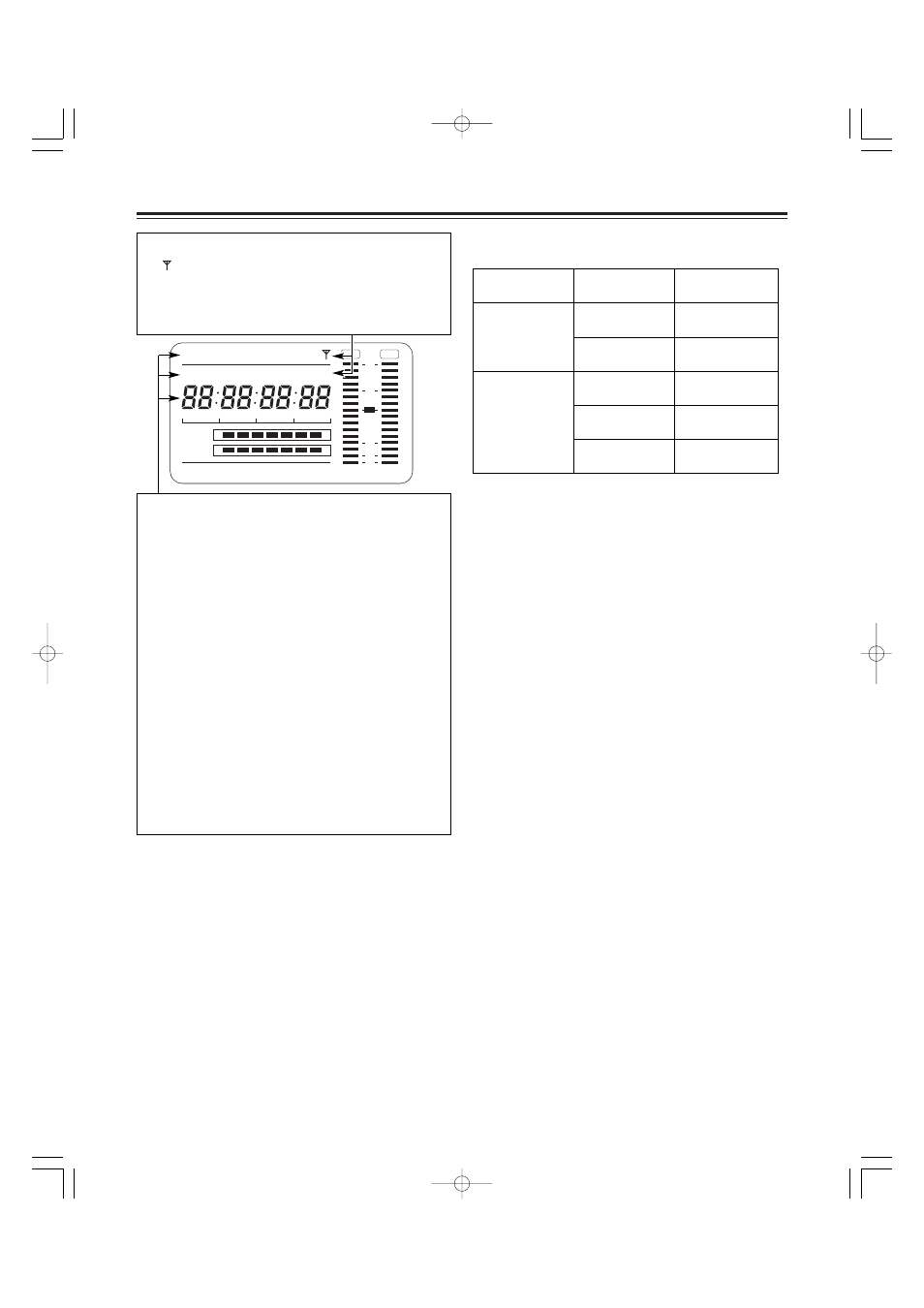

Mode displays
GPS: Lights when signals cannot be received during GPS operation.
GPS : Lights when signals are being received during GPS operation.
P-REC: Lights in pre-recording mode and flashes during the time set for
pre-recording after the tally lamp for recording has turned off.
iREC: Lights during recording when the interval recording mode is
established; flashes during recording standby.
i: Flashes when the interval recording mode has been selected.
Displays relating to the time code
SLAVE: Lights when the time code is locked externally.
HOLD: Lights when the time generator/reader value is being held.
CTL: Lights when CTL is selected by the DISPLAY switch and the
CTL count value is displayed.
TCG: Lights when TC (or UB) is selected by the DISPLAY switch and
the TC (or UB) generator value is displayed.
TC: Lights when TC (or UB) is selected by the DISPLAY switch and
the TC (or UB) reader value is displayed.
VTCG: Lights when UB is selected by the DISPLAY switch and the
VIUB generator value is displayed.
VTC: Lights when UB is selected by the DISPLAY switch and the
VIUB reader value is displayed.
TIME: Lights when UB is selected by the DISPLAY switch and the
values of the hour, minutes and seconds in real time are
displayed.
DATE: Lights when UB is selected by the DISPLAY switch and the
values of the year, month and day are displayed in real time.
No display: Remains off when UB is selected by the DISPLAY switch and
the real-time values of the hour and minutes in the time zone
are displayed.
Time counter display:
The time code, CTL, user bits and real time are displayed.
When UB has been selected by the DISPLAY switch, each time the HOLD
button is pressed, the setting is switched in the following sequence: VTCG
(VTC) 5 DATE 5 TIME 5 no display (time zone) 5 TCG (TC) and so on
repeatedly.
Time code-related switch settings and display items
TCG switch position
DISPLAY switch
position
Display item
SET
TC or CTL Time code
F-RUN or R-RUN
UB User bits
CTL CTL
TC Time code
UB User bits
