Using the Conditional Access Module (CAM)
HDMI 2 HDMI 1
EXT 4
Pr Pb Y AUDIO R L
IN
DVI
(AUDIO IN) EXT 2 /SVHS2 EXT 1
ANTENNA
R
L
The Conditional Access Module (CAM)
menu provides access to functions contained on
the CAM. The module can be inserted into the
Common Interface (CI) slot located at the side
of the 26”/32” TV and at the rear bottom of
the 37”/42”/50” TV. Remove the sticker before
inserting module.
Common
Interface
slot
26’ / 32” TV
Common Interface
slot
37” / 42” /50” TV
IMPORTANT
Always switch the TV off before inserting
or removing the module.

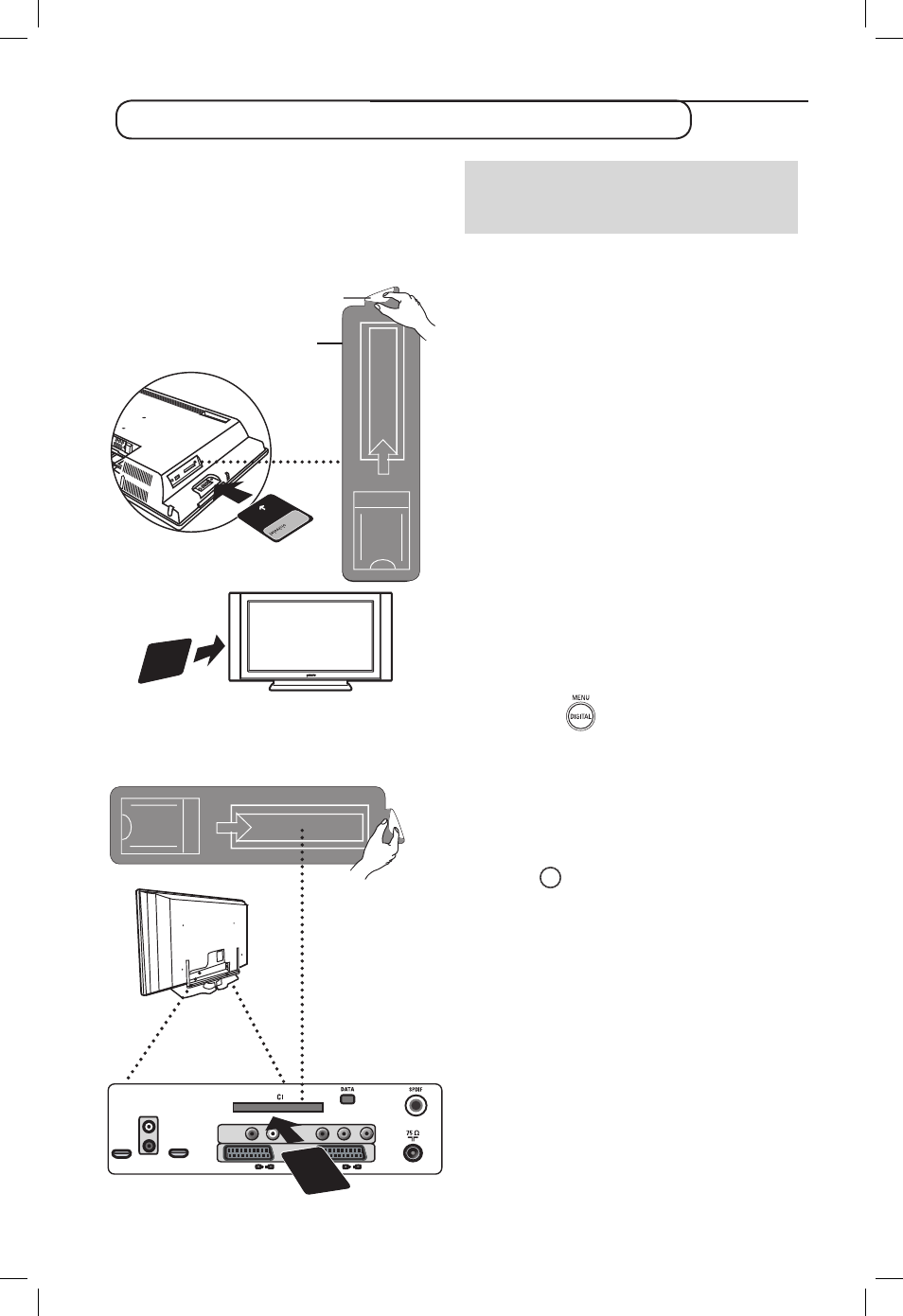

Inserting the CAM
& Switch off the TV.
é Some modules come with a viewing card.
When using this type of module, first insert
the viewing card into the module. Ensure that
the arrow on the viewing card faces the
arrow of the module before inserting into the
module slot.
“ Insert the module into the Common Interface
(CI) slot on the TV. If you are inserting the
module from the rear of the TV (26”/32”),
the arrow indicated on top side of the card
should be facing you. If you are inserting the
module from the front of the TV screen
(26”/32”), the reverse side of the module
(without the arrow) should be facing you.
For 37”/42’/50” TV, if you inserting the
module from behind of the TV, the reverse
side of the module (without the arrow)
should be facing you.
‘ Switch on the TV.
( Press the key to switch the TV to
Digital mode, move to the Access
Restrictions menu, the Conditional Access
Module menu is displayed as the last item in
the list.
§ Access the Conditional Access Module menu.
è Press
OK
button as indicated on the screen
to access the CAM’s functions.
If no module is inserted, or the module is not
inserted properly, the Conditional Access
Module menu will not be displayed.
(If you have inserted a module, check that it
is fully inserted in the correct manner as
mentioned in step 3 above)
The functions that now appear on screen
are dependent on the contents of the
selected Conditional Access Module in
your country. Refer to the instruction
supplied with the module or contact the
vendor.
Reverse side
of module
26’ / 32” TV
Front side
of module
Reverse side
of module
PCMCIA
PCMCIA
Remove sticker
Remove sticker
