Viewfinder
7
6
8
2
3 1 5 4

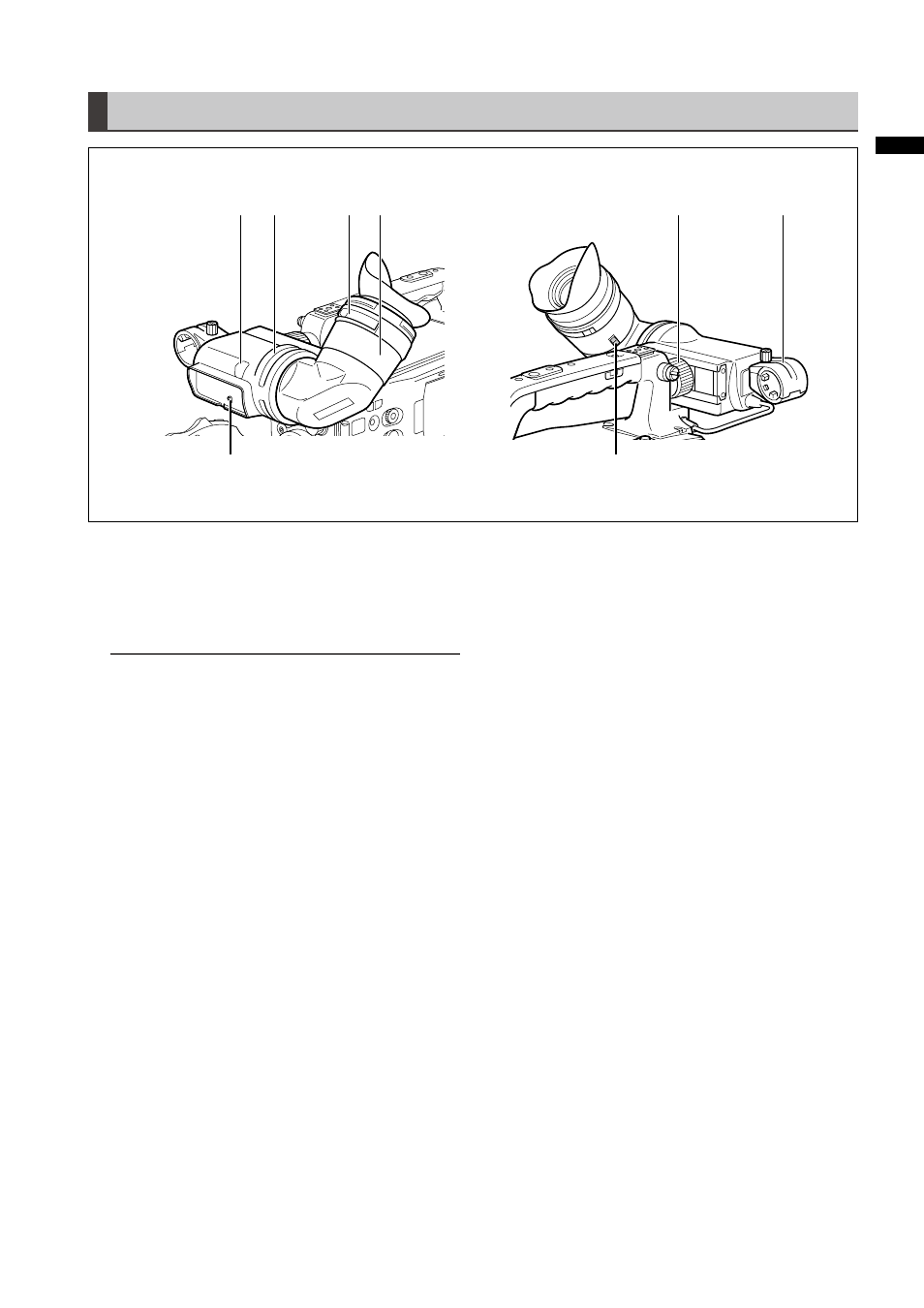

1 Viewfinder
The viewfinder displays the video image in color during
recording or playback. It also displays warnings and
messages – indicating camera operating status and
settings – zebra patterns and markers (safety zone and
center markers, etc.).
 NOTE
The menu option EVF COLOR can be set to monochrome
in the DISPLAY SETUP screen.
2 TALLY switch
Use to control the front tally lamp.
ON:
Tally lamp goes on
OFF: Tally lamp goes out.
3 Front tally lamp
This lamp goes on during recording when the TALLY
switch is set to the [ON] . It blinks to indicate warnings.
4 Eyepiece
5 Diopter adjusting ring
Adjust this ring to suit your vision so that the image in
the viewfinder is as clear as possible.
6 Eyepiece lock button
7 Microphone holder
8 Right and left viewfinder positioning rings
Loosen the rings to adjust right and left position, and
tighten the ring after completing the adjustment.
