Pelco DX8100 User Manual
Page 85

C2629M-A (6/07)
85
5. In the Port/Device page, do the following:
a.
In the Communication Port Configuration section, click Configure. The Device Configuration dialog box opens.
b.
In the Device Mode drop-down box, select a mode. Single mode is the default mode.
c.
Click Apply.

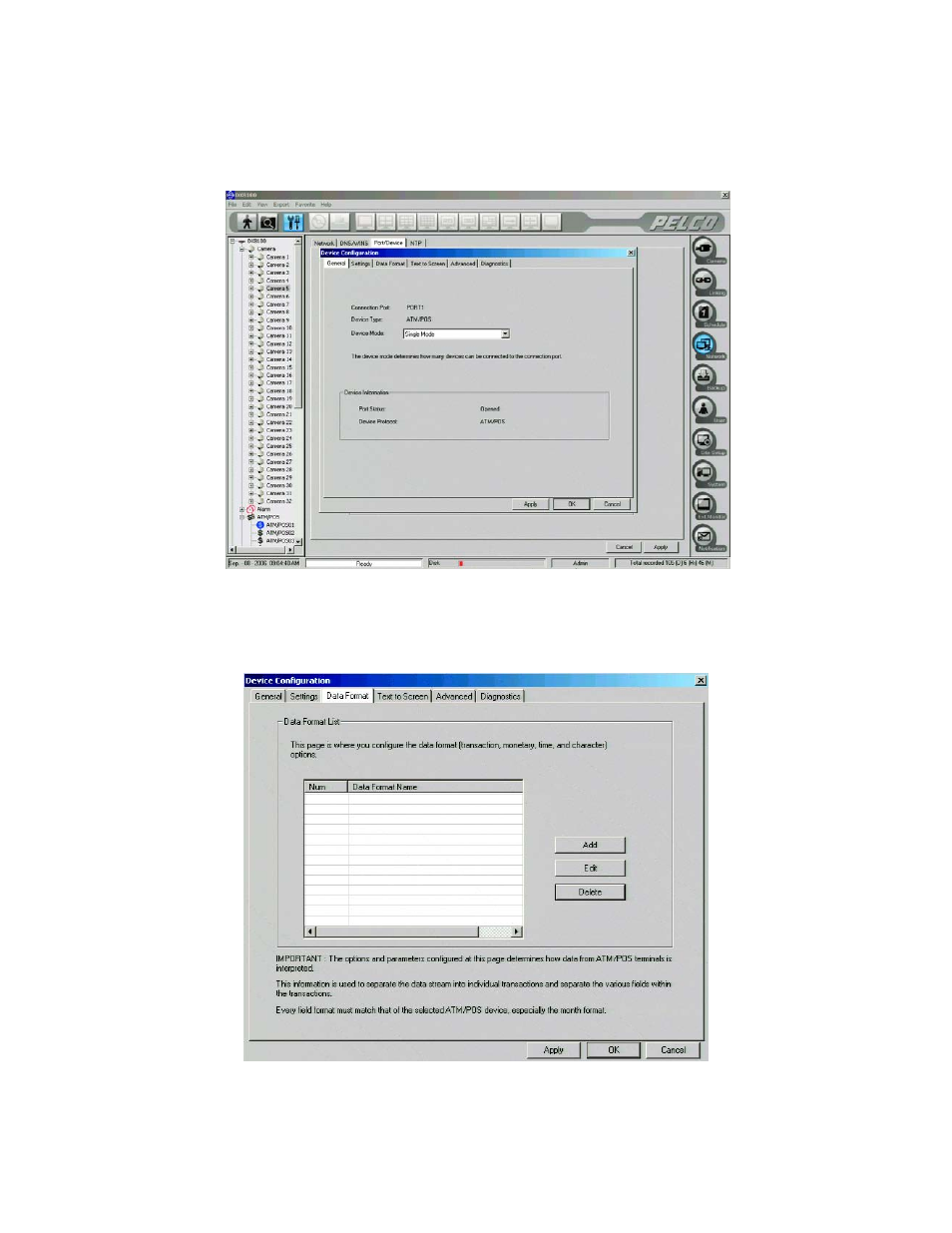

Figure 109. Device Configuration Page: General Tab
6. In the Device Configuration page, do the following:
a.
Click Data Format. The Data Format List page is displayed.
Figure 110. Data Format List Page
