C2629M-A (6/07)

Back Panel Layout

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

IN10

IN11

IN12

IN13

IN14

IN15

IN16

OUT16

OUT15

OUT14

OUT13

OUT12

OUT11

OUT10

OUT9

OUT8

OUT7

OUT6

OUT5

OUT4

OUT3

OUT2

OUT1

ALARM INPUTS

RELAY OUTPUTS

1 2 2 4 5 6 7 8 GND
9 10 11 12 13 14 15 16

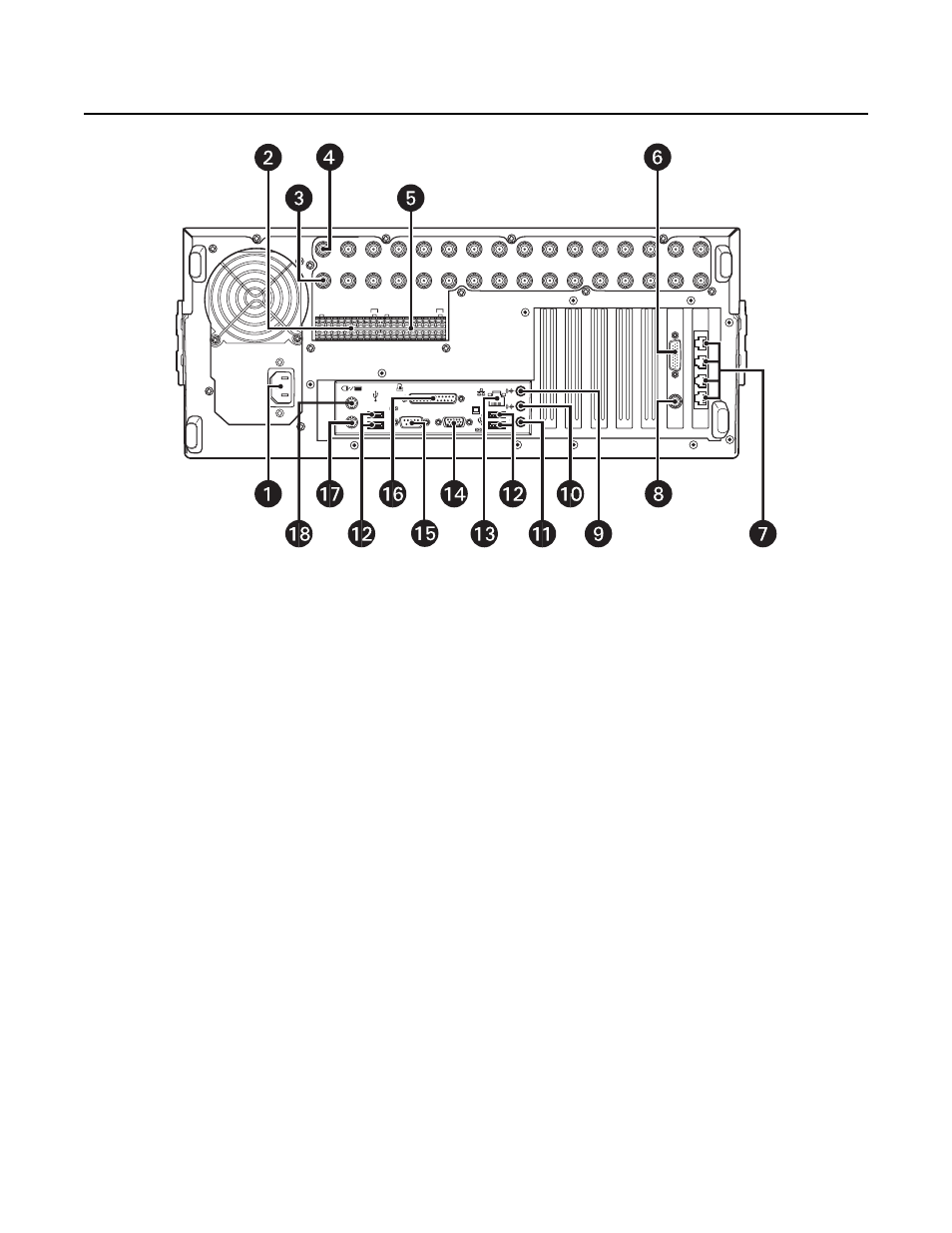

Figure 8. Back Panel Layout

Autoranging AC Power Input (voltage range between 100 VAC and 240 VAC, 50/60 Hz)

Alarm Inputs: 16 normally closed inputs

Camera Outputs: 8 or 16 BNC camera outputs

Camera Inputs: 8 or 16 BNC camera inputs

Relay Outputs: 16 normally open outputs

Audio Inputs (optional): 8 or 16 channels

Four RJ-45 Extended Peripheral Connectors (RS-422/RS-485 compliant)

BNC Programmable Analog Display Output

Audio Input (Standard): One miniature phone jack for line in (disabled)

~í

Audio Output (Standard): One miniature phone jack for audio output

~â=

Audio Input (Standard): One 2-channel (right/left) miniature phone jack for line in (disabled)

~ä

High-Speed USB 2.0 Ports: two USB ports on front of unit and four on rear of unit

~ã

Ethernet Adapter Port: 100 Mbps port

~å

VGA Monitor Output: 15-pin output

~ç

9-Pin Serial Port: COM1

~é

LPT1 Printer Port: 25-pin port

~è

Keyboard (PS/2) Input

~ê

Mouse (PS/2) Input
