SETTING UP AUDIO OUTPUT
The DX8100 delivers a line-level monaural signal through a standard 0.125-inch phone jack on the rear panel of the DVR. It is recommended that
the audio output of the DX8100 be connected to an amplifier in order to boost the output signal to a level that is sufficient to drive a speaker.
Figure 94 illustrates an example of an audio output configuration.
Some speaker systems integrate both amplifiers and speakers in a single unit. Such a system can be connected directly to the audio output of the
DX8100 without the need for external amplification.
To setup the audio output:
1. Connect the audio output of the DX8100 to an audio amplifier.
Use an audio cable with a 0.125-inch miniature male phone plug on one end to connect to the audio output of the DX8100. Ensure that the
opposite end of the cable has the appropriate connectors for connection to your amplifier.
2. Connect the audio amplifier to a speaker.
IN1
IN2
IN3
IN4
IN5
IN6
IN7
IN8
IN9
IN10
IN11
IN12
IN13
IN14
IN15
IN16
OUT16
OUT15
OUT14
OUT13
OUT12
OUT11
OUT10
OUT9
OUT8
OUT7
OUT6
OUT5
OUT4
OUT3
OUT2
OUT1
ALARM INPUTS
RELAY OUTPUTS
1 2 2 4 5 6 7 8 GND
9 10 11 12 13 14 15 16
1 2 2 4 5 6 7 8 GND
9 10 11 12 13 14 15 16
SPEAKER
MINI MALE PHONE PLUG
AUDIO AMPLIFIER

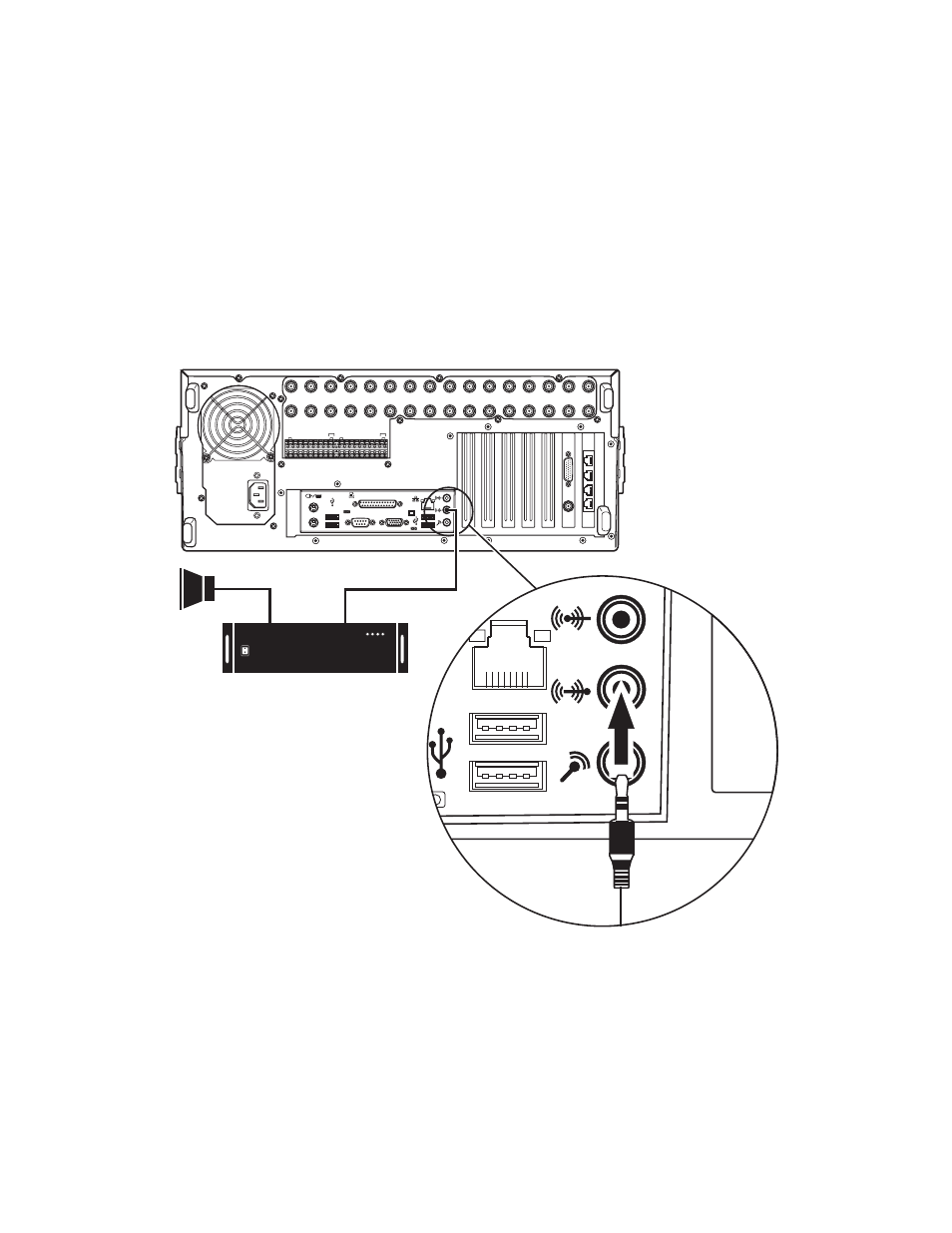

Figure 93. Audio Output Configuration Example
