Application Examples
PC CLIENT
LAN/WAN
DX8100 SERVER DVR
CAMERA
DX8100
FAST ETHERNET SWITCH
DX8100
DX8100
DX8100
Figure 2. System with Multiple DX8100s
Figure 1. System with Single DX8100
WWW CLIENT
MOBILE CLIENT
DX8100 SERVER DVR
DX8100 SERVER DVR
LAN/WAN
DX8100 SERVER DVR
DX8100 SERVER DVR

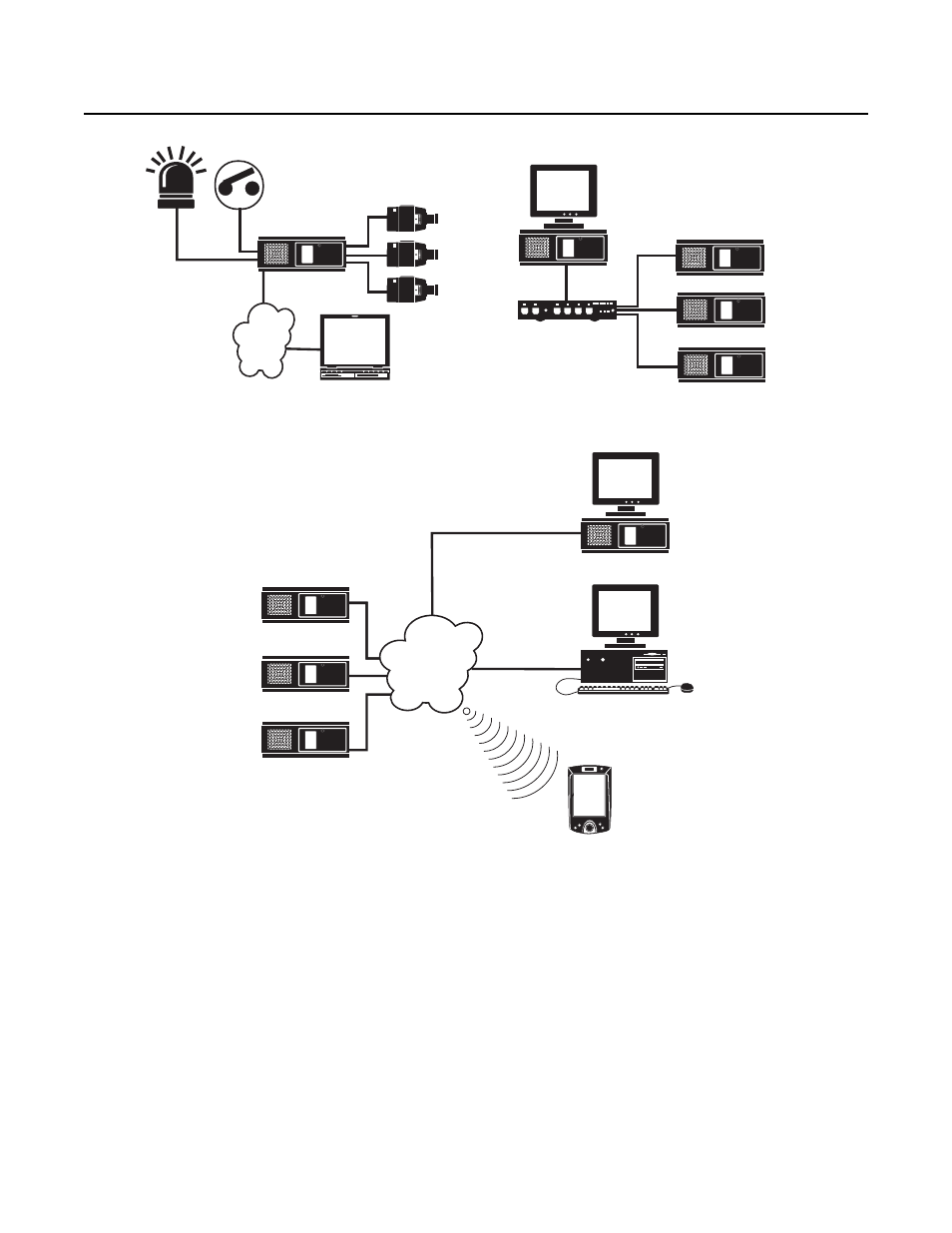

Figure 3. System with Multiple DX8100s and Multiple Clients
