Page 79: Vsi-pro db9-to-db9 triport cable, ᕡᕤ ᕣ ᕢ

C2629M-A (6/07)
79
CONNECTING ATM/POS HARDWARE
This section describes how to connect ATM/POS devices to the DX8100 server using the VSI-PRO. Direct connection between an ATM/POS
device and the DX8100 without using the VSI-PRO is not supported.
Go to URL
the VSI Compatibility table.
This section is organized as follows:
•
RS-232 ATM/POS Device Configuration
•
RS-422 ATM/POS Device Configuration
USING THE VSI-PRO TRIPORT CABLE

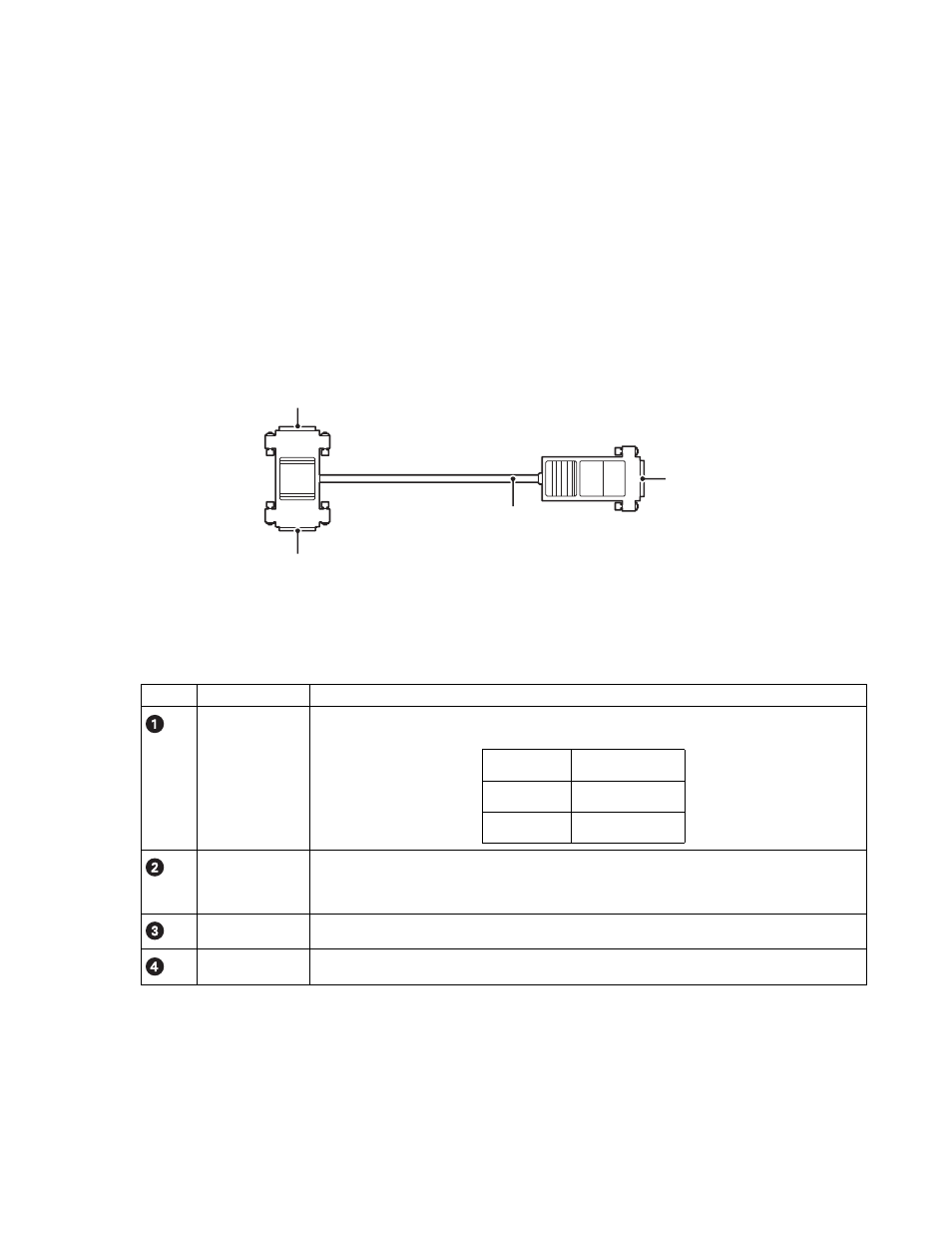

Figure 103 illustrates the VSI-PRO Dresser Wayne DB9-to-DB9 Triport cable used to interconnect between the ATM/POS, VSI-PRO, and DX8100
server. For specific details regarding ATM/POS device cabling requirements, refer to the VSI-PRO operations manual.
ᕡ
ᕤ
ᕣ
ᕢ
Figure 102. VSI-PRO DB9-to-DB9 Triport Cable
The table below describes the VSI-PRO DB9-to-DB9 triport cable.
Table I. VSI-PRO DB9-to-DB9 Triport Cable
Item
Part
Description
DB9 (male)
DB9 male connector that interfaces with the VSI-PRO. The VSI-PRO reroutes signals to the DX8100
according to the following pin assignments:
VSI-PRO DX8100
Pin 3: TD
Pin 2: RD
Pin 7: RTS
Pin 5: SGND
DB9 (male)
DB9 male connector that connects the VSI-PRO to the DX8100. The pin assignments are as follows:
•
Pin 2: RD
•
Pin 5: SGND
Cable
The cable length is 3 feet (0.91 m).
DB9 female connector that connects the ATM/POS device to the VSI-PRO.
DB9 (female)
