Panasonic AW-HB505 - Manual (Page 25)

1
Y C
2
Y C
3
Y C
4
Y C
5
Y C
C A B L E C O M P
1
Y C
2
Y C
3
Y C
4
Y C
5
Y C
C A B L E C O M P
1
Y C
2
Y C
3
Y C
4
Y C
5
Y C
C A B L E C O M P
-23-

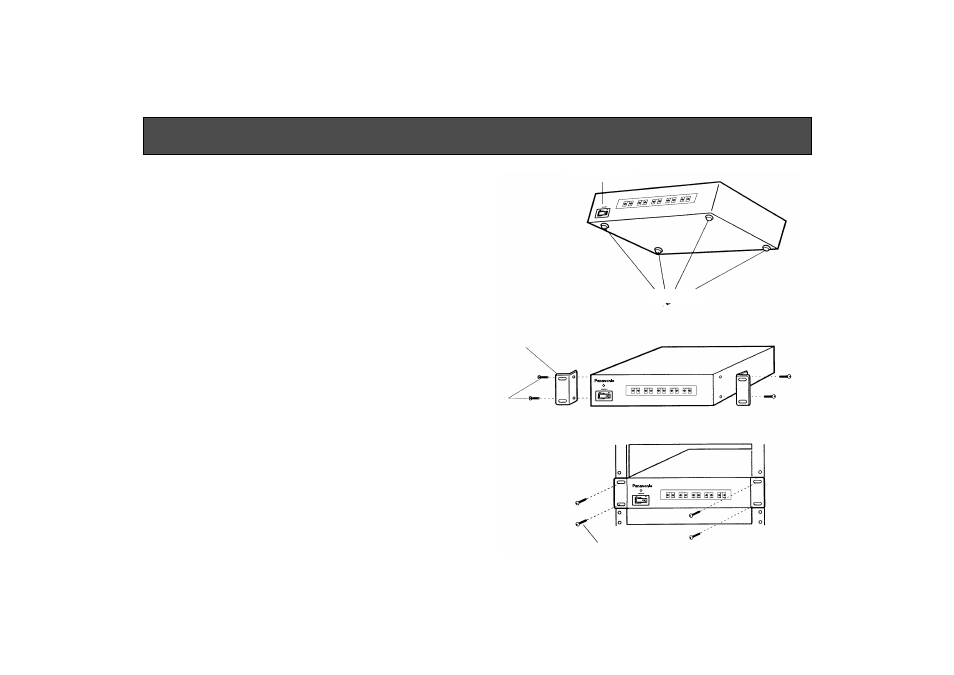

RACK MOUNTING
To mount the multiport hub in a rack, use the supplied rack
mounting brackets and screws (M4x10).
q Press the power switch to turn power off.
w Remove the 4 feet.
e With the rack mounting brackets on both ends of the
multiport hub, fasten them with the supplied screws (4
pcs.)
r Mount the multiport hub in the rack and fasten it with
the rack mounting screws (4 pcs.)
Notes:
• The rack mounting screws are optional. (Optional)
• Keep the multiport hub away (at least its size) from
other devices, or mount a cooling fan in the rack,
so that the temperature inside the rack will not rise
above 50°C.
Rack mounting bracket
Rack mounting screws (Optiona)
Mounting
screws
Remove them
Power switch
