INSTALLATION
EATON Powerware ® 9135 Two−in−One UPS (5000/6000 VA) User’s Guide S 164201726 Rev 1
www.powerware.com
37
RPO Installation
Installation of the RPO function must be carried out in compliance with
applicable regulations. The cable is not included.
In order to fully de−energize devices and the Powerware 9135 with the
RPO port, it is necessary to:
S
Use a two−position switch (normally−open or normally−closed contact
and held more than one second).
S
Connect this RPO switch to a device that trips all breaker(s) located
upstream
(1) and downstream (2) the Powerware 9135 UPS. This can
be achieved by means of a shunt trip:
− (1) If not, the output devices could be powered again through static
switch when the two−position switch is released.
− (2) If not, the output devices will remain powered several seconds
after the RPO activation.
NOTE The internal batteries will remain connected to the power module after RPO
activation.

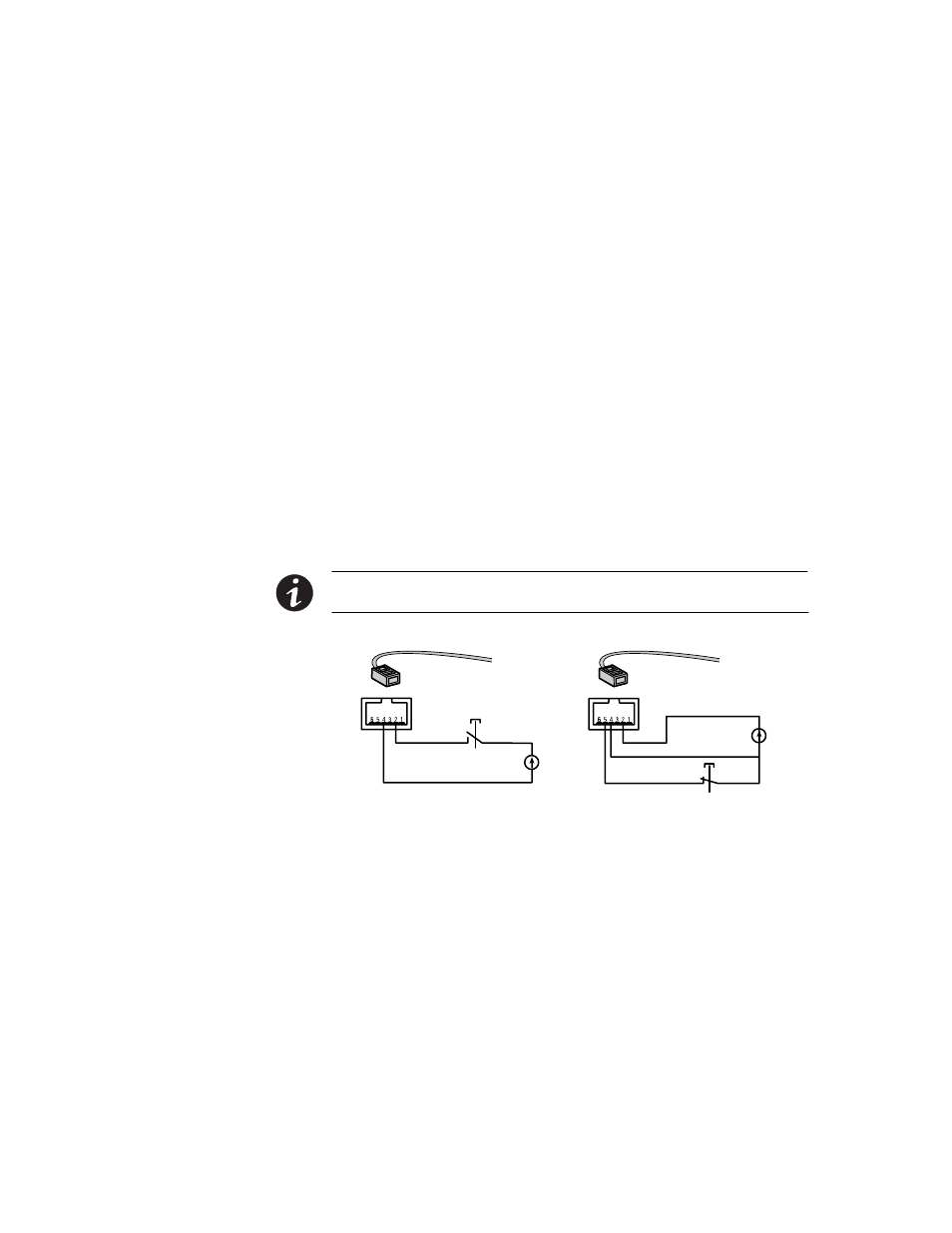

RPO Contact Normally−Open RPO Contact Normally−Closed
5 Vdc to 27 Vdc
5 Vdc to 27 Vdc
RJ−12 (6p6c) RJ−12 (6p6c)
Figure 19. RPO Communication Port
S
Signal:
− Activation voltage: 5 Vdc to 27 Vdc
− Current: 10 mA maximum
