Connecting the UPS Internal Battery
To ensure proper battery operation:
1. Verify that the UPS is off and unplugged.
2. Remove the two screws from the battery switch (see Figure 2).
Two
Screws
Battery Switch

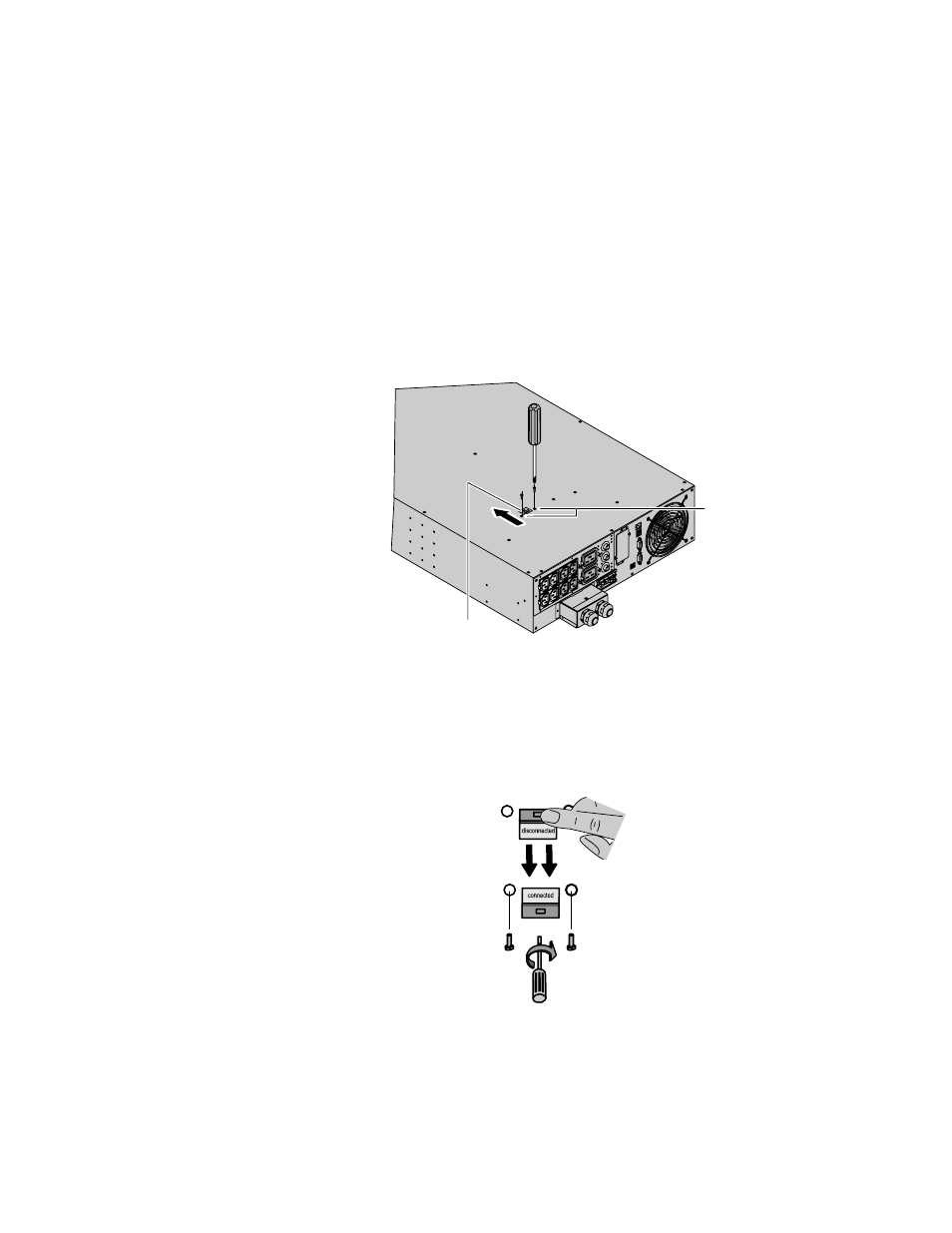

Figure 2. Removing the Battery Switch Screws
3. Slide the battery connector so that you can read Connected (see
Figure 3).
4. Reinstall the two screws removed in Step 2.
5. Continue to the following section, UPS Setup."
Figure 3. Connecting the Internal Battery Connector
