MAINTENANCE
Lights

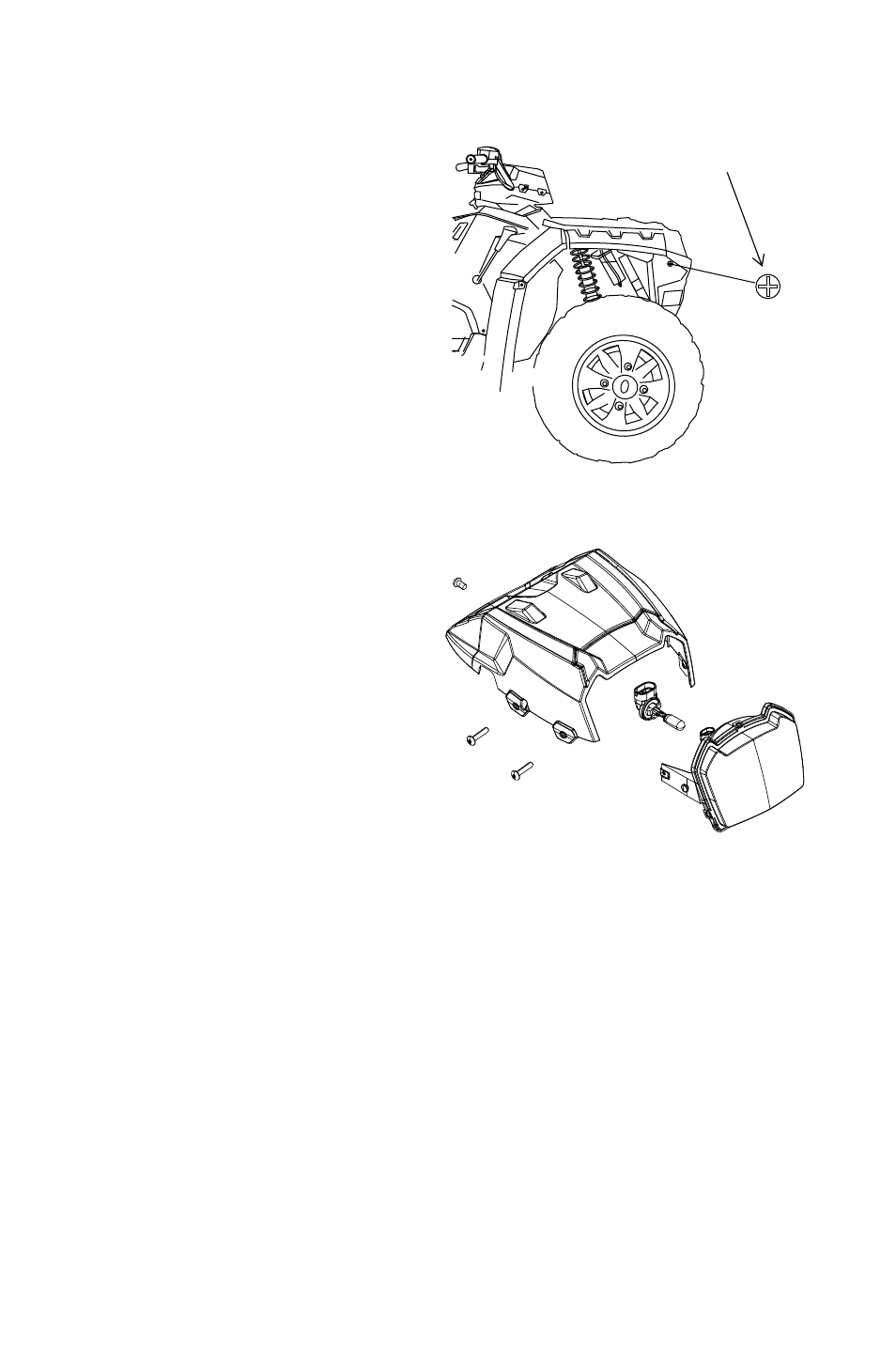

Low Beam Adjustment
The low beam can be adjusted
slightly upward or downward.
1. Loosen the phillips screw
located at the rear of the
headlamp.
2. Tilt the headlamp upward
or downward.
3. Tighten the screw.
Headlight Housing Replacement
1. Remove the five (5)
headlight pod screws.
2. Lift the pod cover and
disconnect the speedometer
harnesses from the
speedometer.
3. Unplug the headlamp from
the wiring harness.
4. Use a small screwdriver to
remove the o-rings from the
headlight mounting tabs.
5. Pull the headlight housing up
to release it from the locking
tabs.
6. Carefully pull the assembly up and out of the pod.
7. Reverse the steps to install the new housing and reassemble the pod.
Phillips Screw
